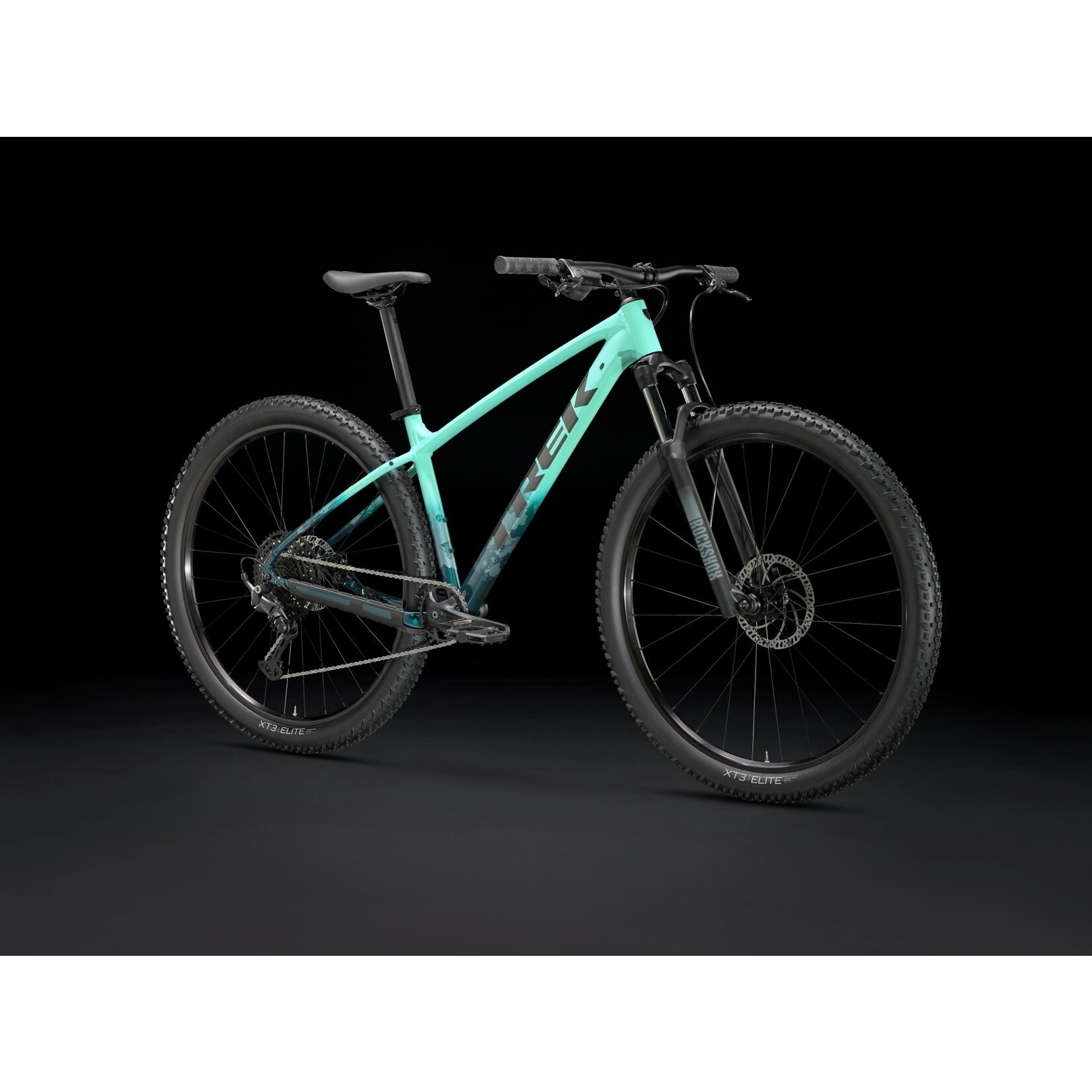

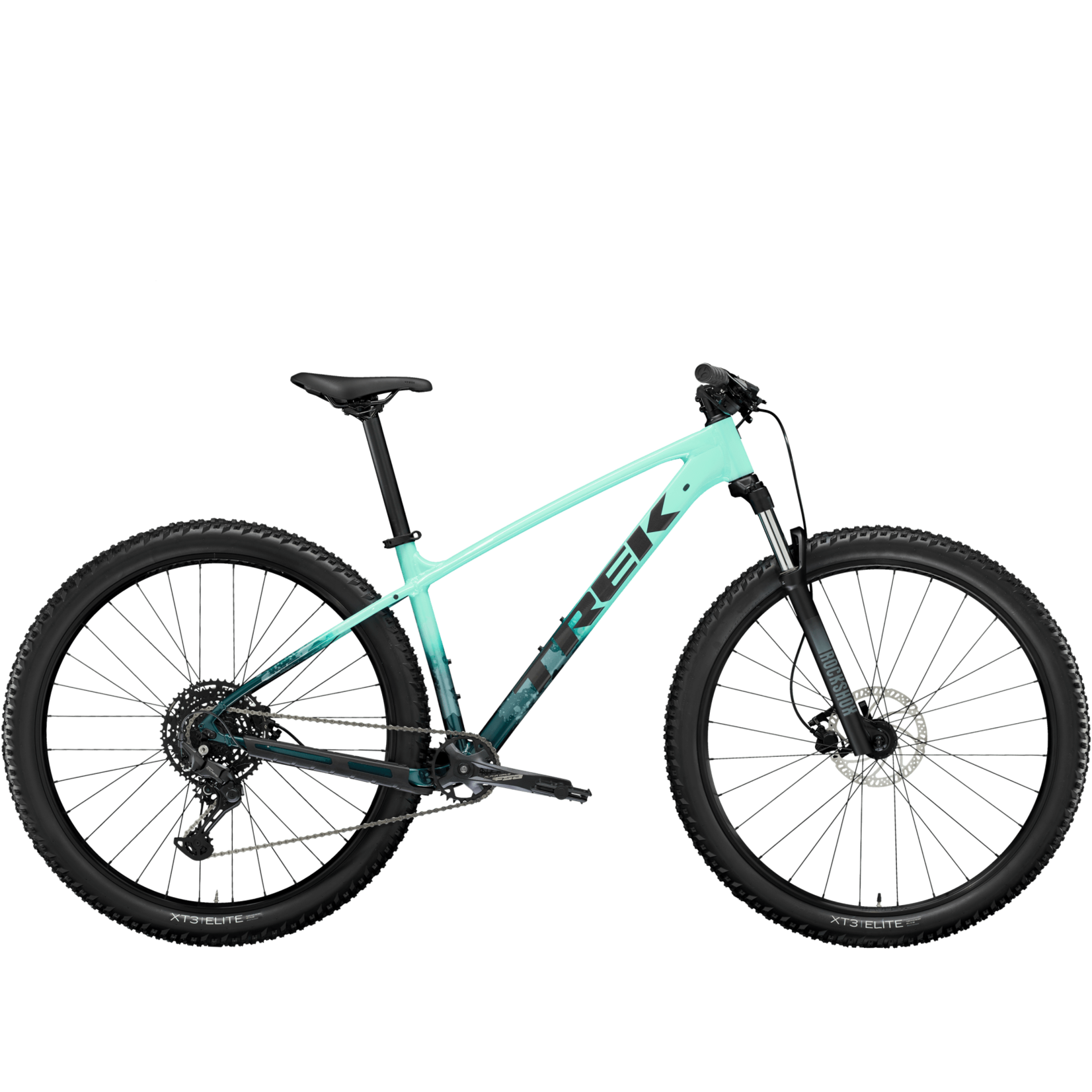

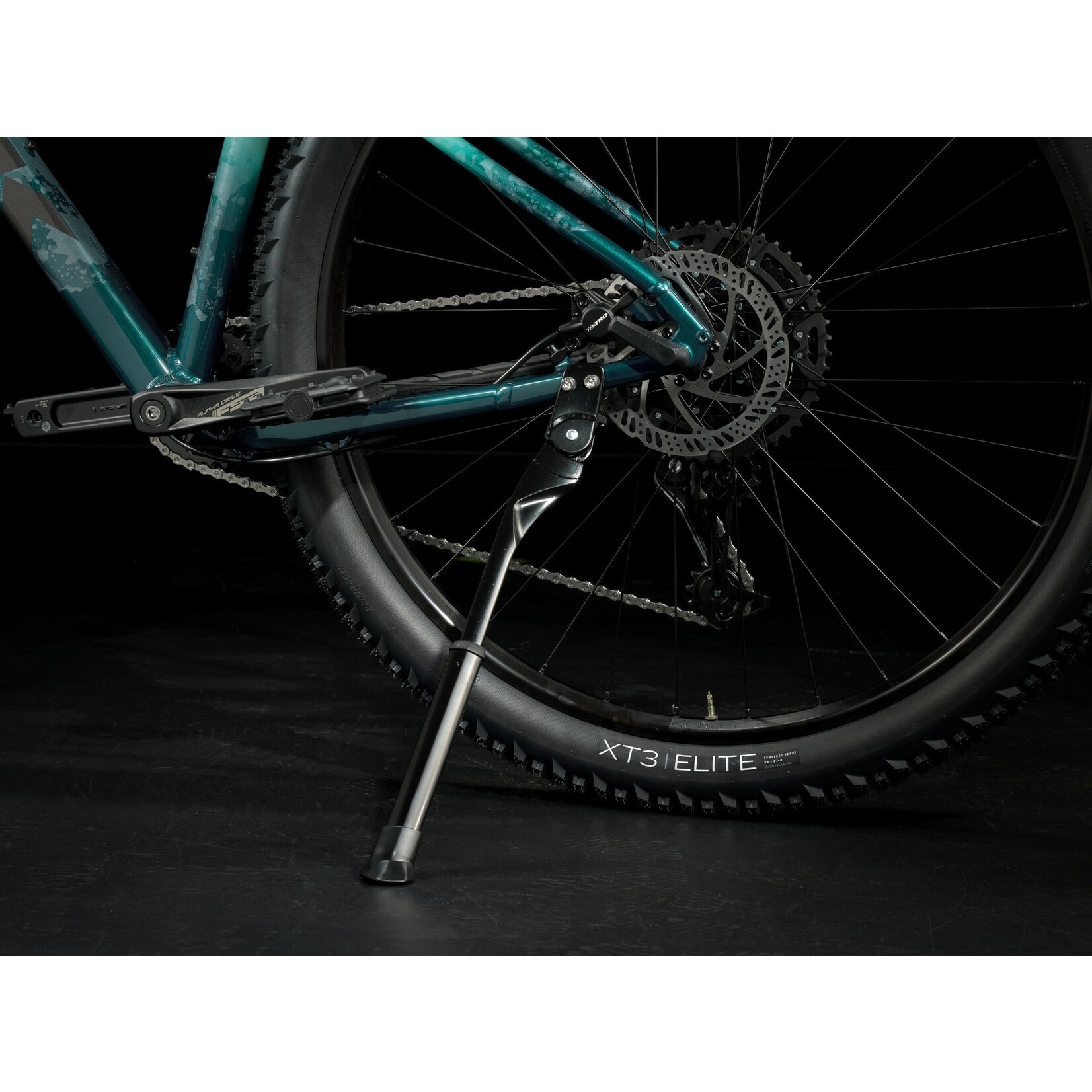

Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the upgraded suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

Why you'll love it
1. Marlin Gen 3 gives you serious trail capability, with big tire clearance and slack, confidence-boosting geometry that keeps you stable from singletrack to city

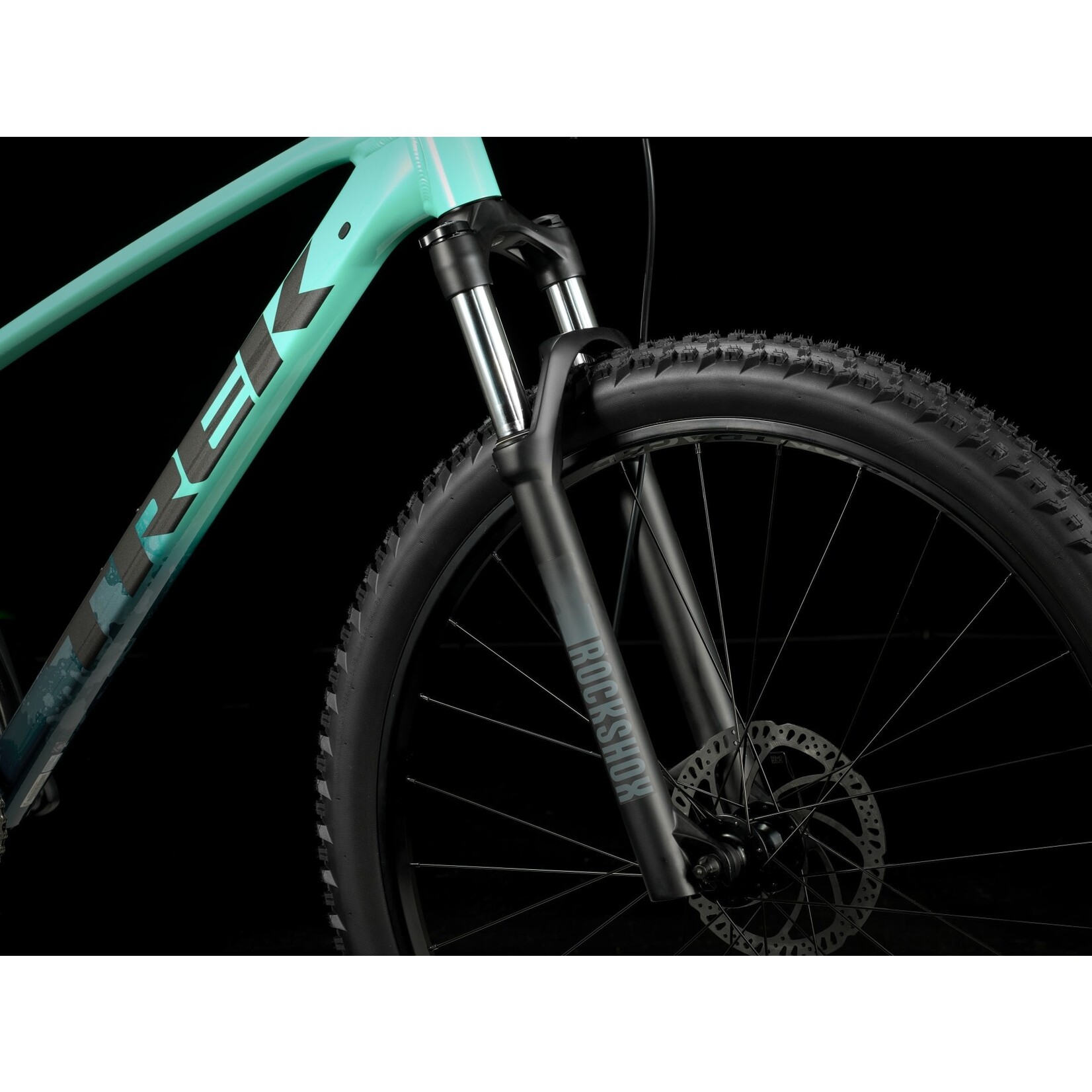

2. Its RockShox fork gives you 100mm of suspension for turning rocks and roots in the trail into smooth-sailing
3. Fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter

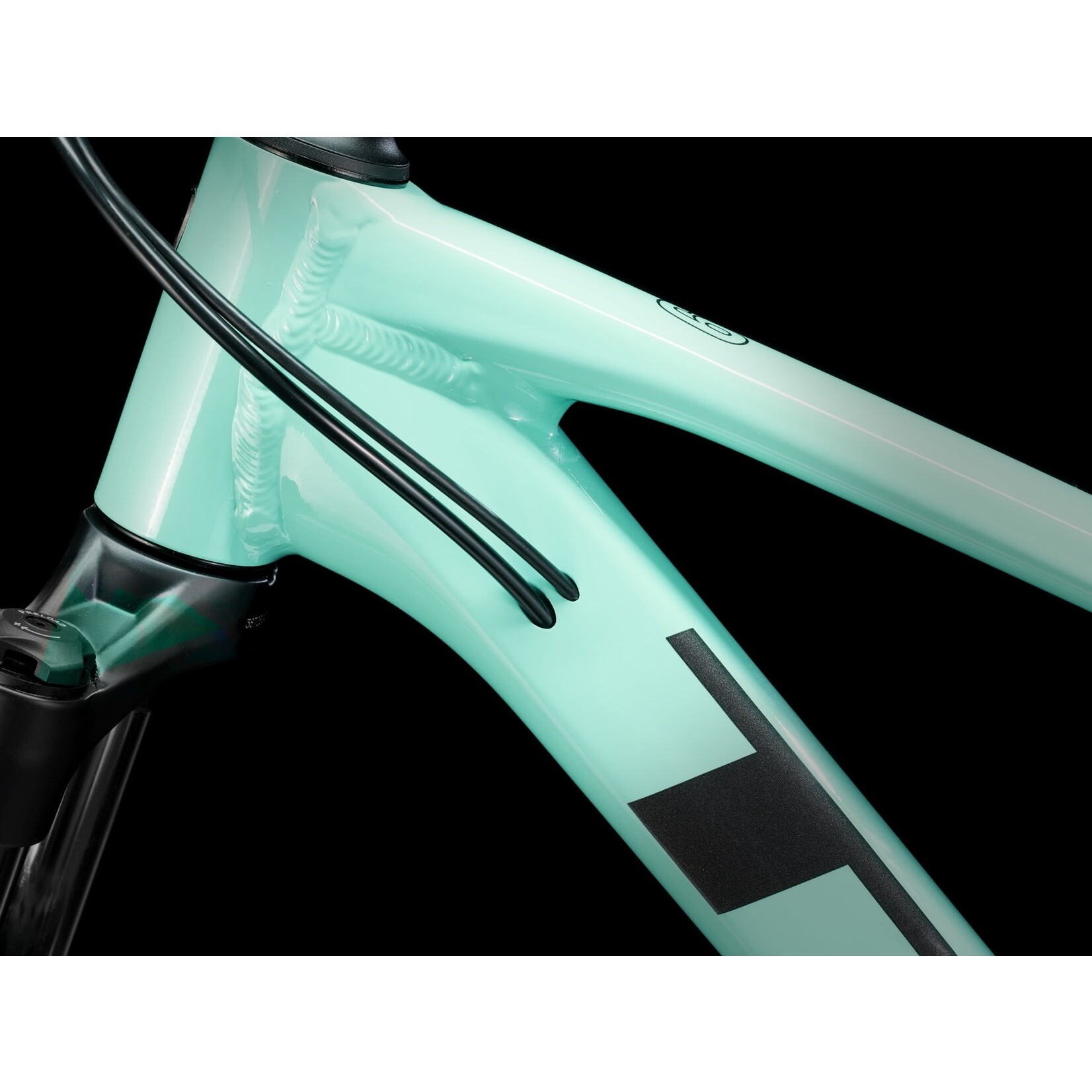

4. Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
5. Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount

Specification

*Please note - spec applies to all sizes unless listed separately

Frameset
*Frame: Size: XXS , XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*Fork: Size: XXS
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: XS , S
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL , XXL
RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Max compatible fork travel: 120mm, XXS: 80mm

Wheels
Hub front: Formula DC-20, alloy, 6-bolt, 100mm ThruSkew
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Skewer rear: 173x5mm QR
Rim: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
*Tire: Size: XXS

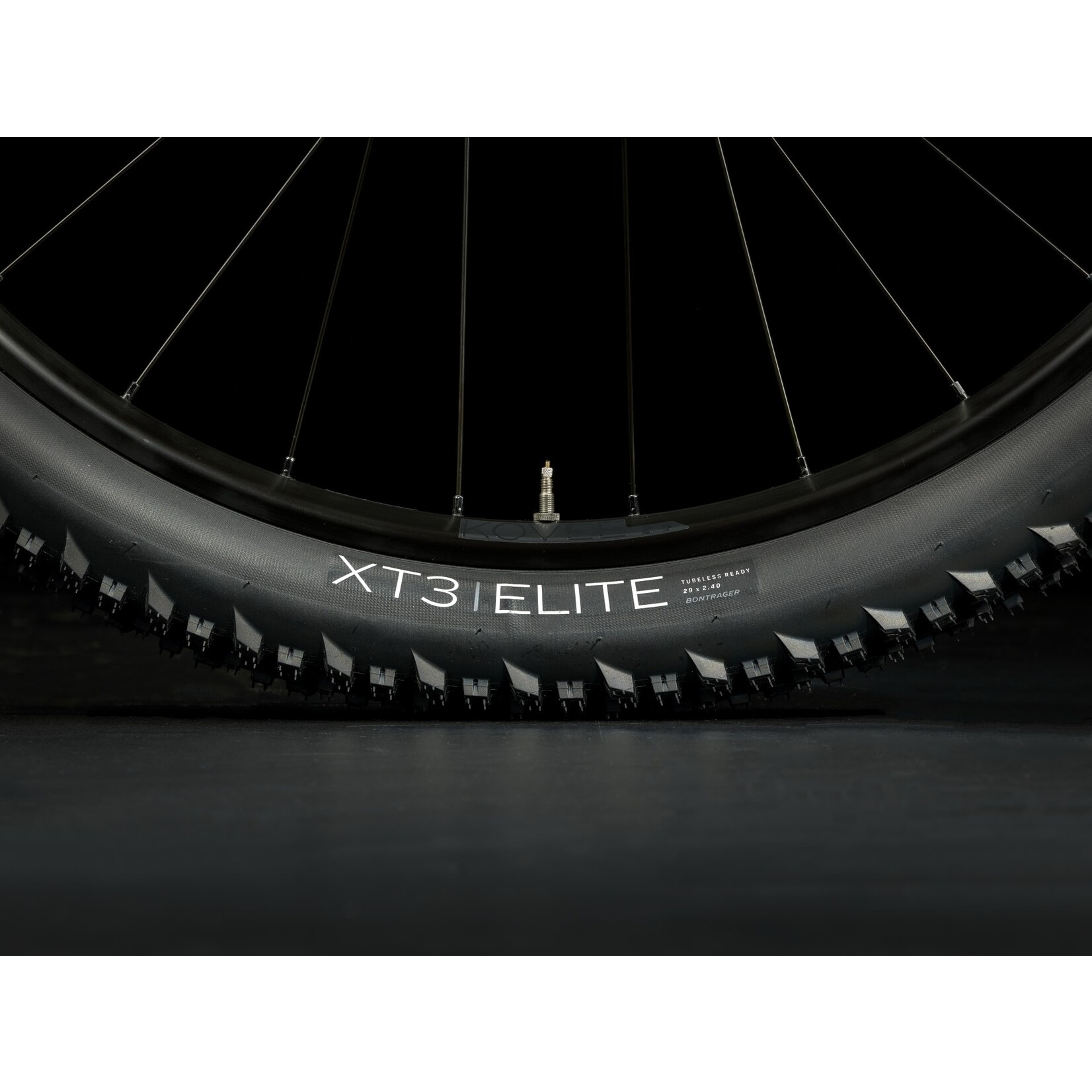

Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35''
Size: XS , S
Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.35''
Size: XS , S
Maxxis IKON, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.35''
Size: M , ML , L , XL , XXL
Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.35''
Size: M , ML , L , XL
Maxxis IKON, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.35''
Max tire size: Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

Drivetrain
Shifter: Shimano U6000, 10 speed

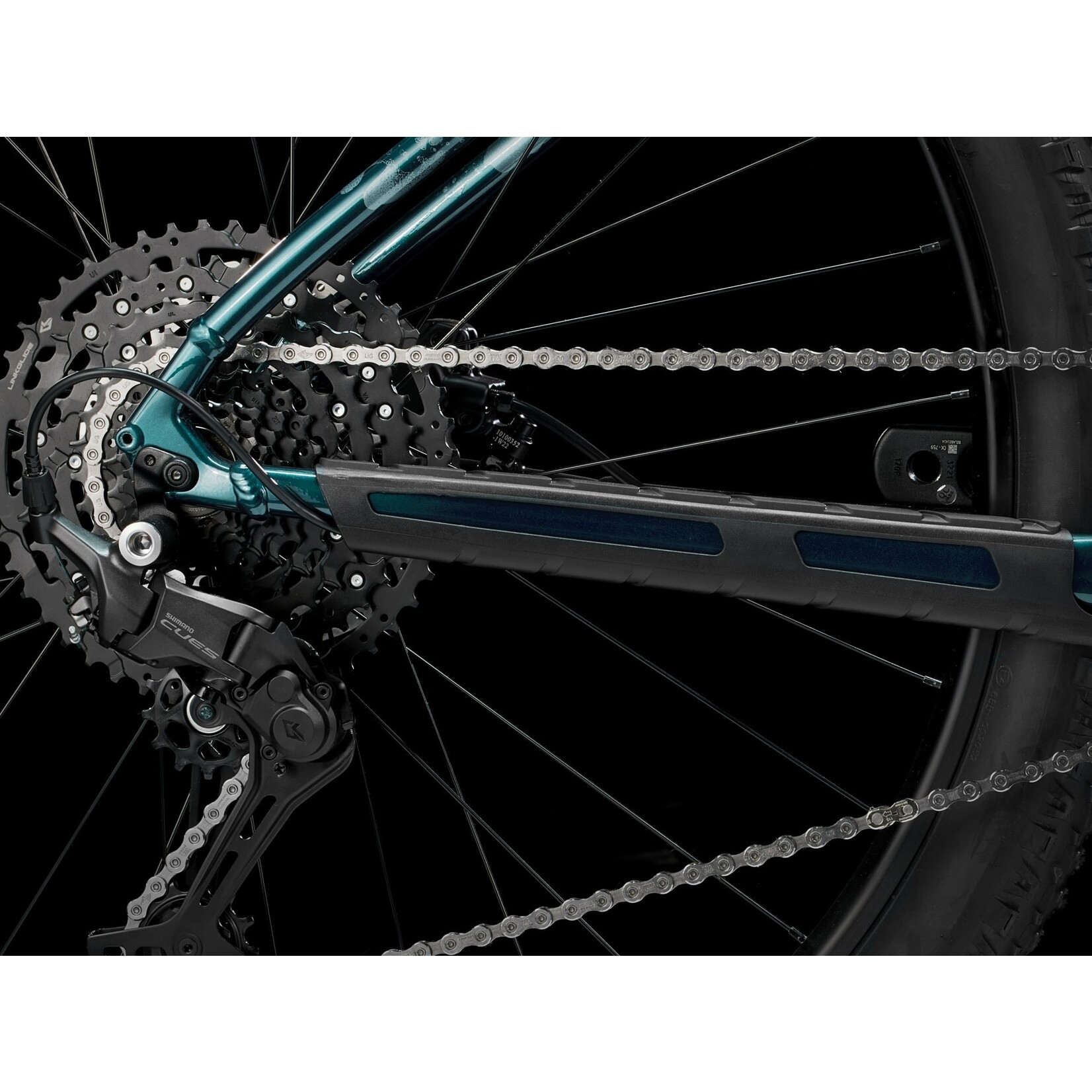

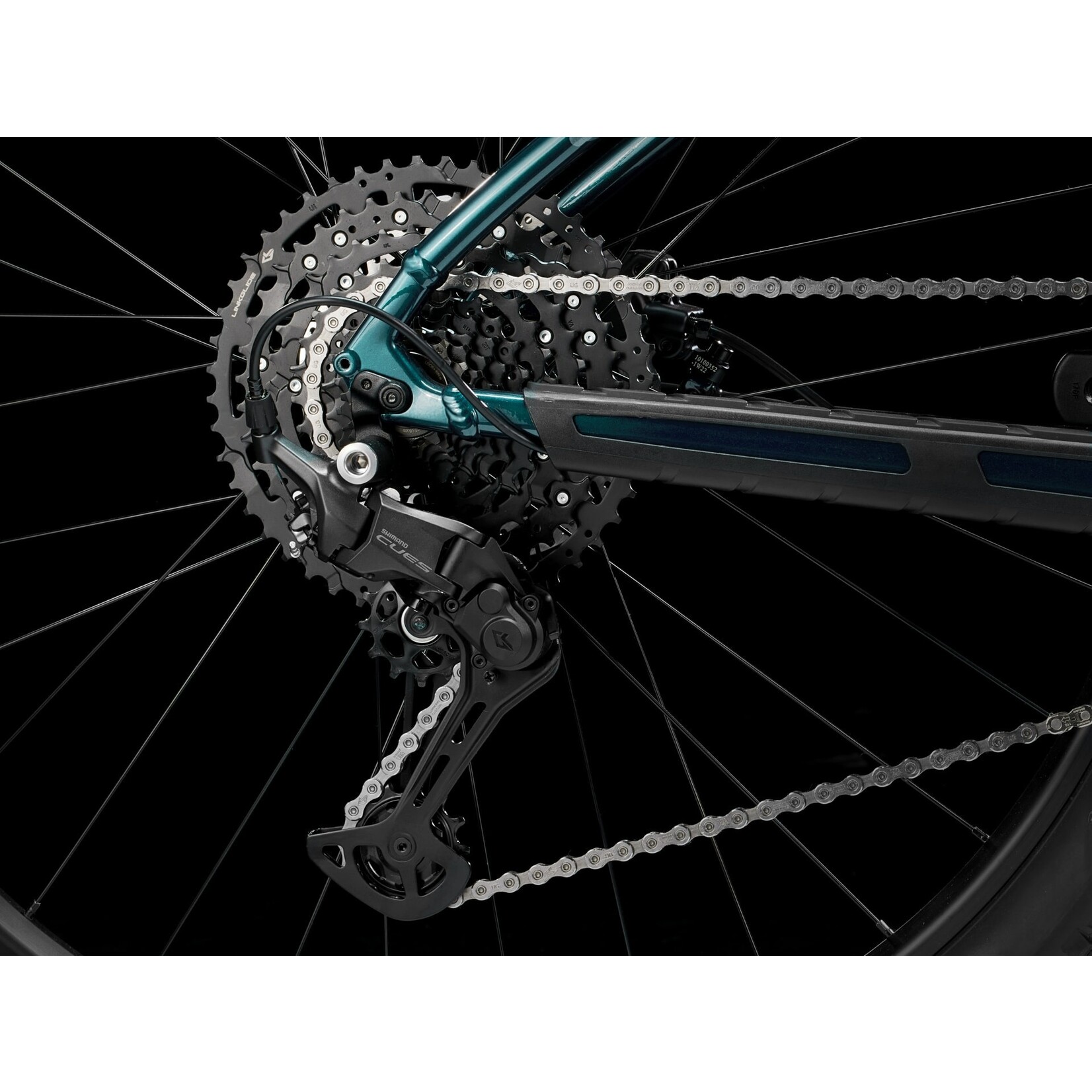

Rear derailleur: Shimano CUES U6000 GS
*Crank: Size: XXS , XS

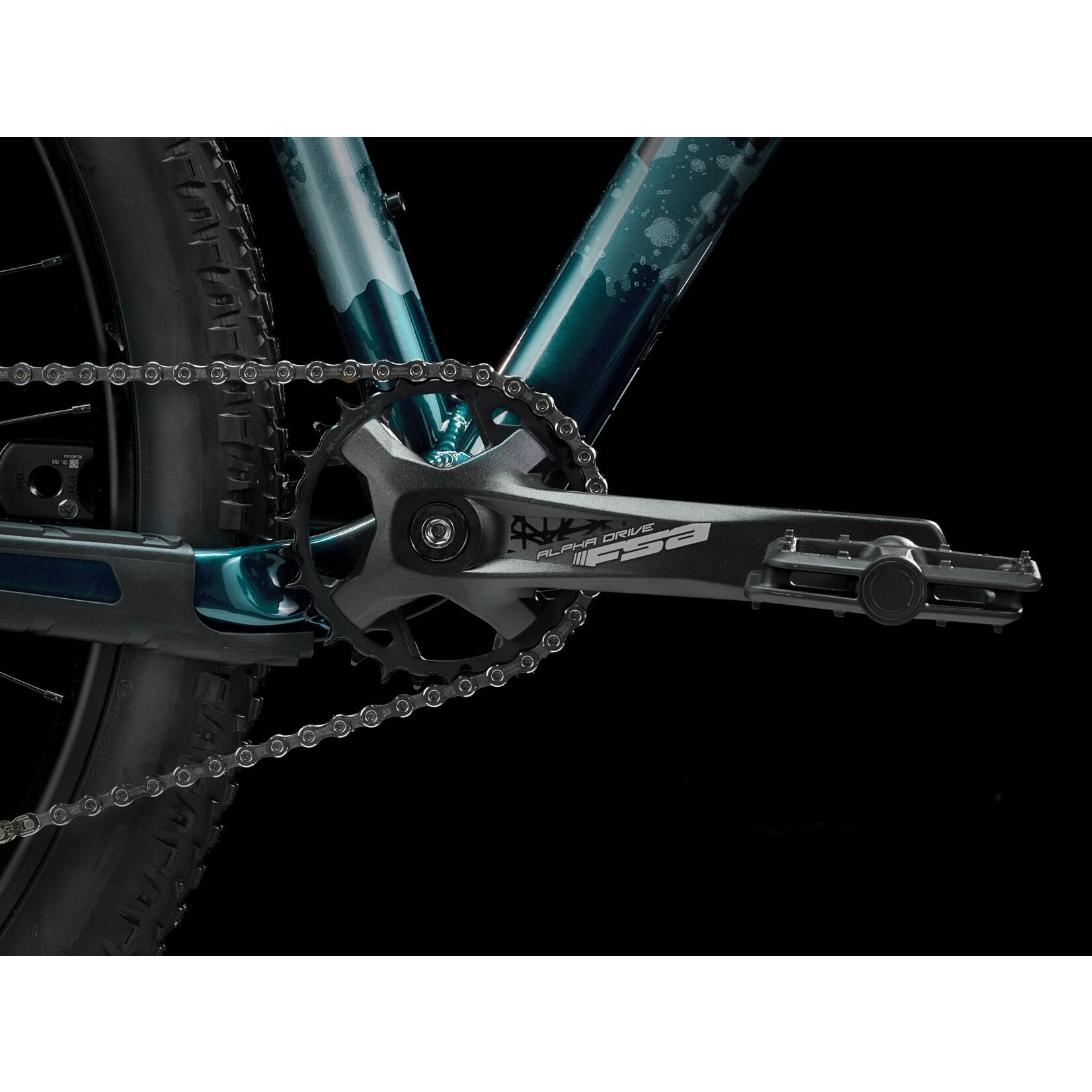

FSA Alpha Drive, 30T, 160mm length
Size: S , M , ML
FSA Alpha Drive, 30T, 170mm length
Size: L , XL , XXL
FSA Alpha Drive, 30T, 175mm length
Bottom bracket: FSA, 73mm, threaded cartridge, 122.5mm spindle
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Chain: Shimano LG500, 9/10/11 speed
Pedal: VP-536 nylon platform
Max chainring size: 1x: See FAQ, 2x: 36T, 3x: 42T

Components
Saddle: Bontrager Verse Short, stainless steel rails
*Seatpost: Size: XXS
Bontrager alloy, 31.6mm, 12mm offset, 300mm length
Size: XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar: Size: XXS , XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips: Bontrager XR Trail Comp, nylon lock-on
*Stem: Size: XXS , XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: XXL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
Headset: Semi-integrated, 1-1/8''

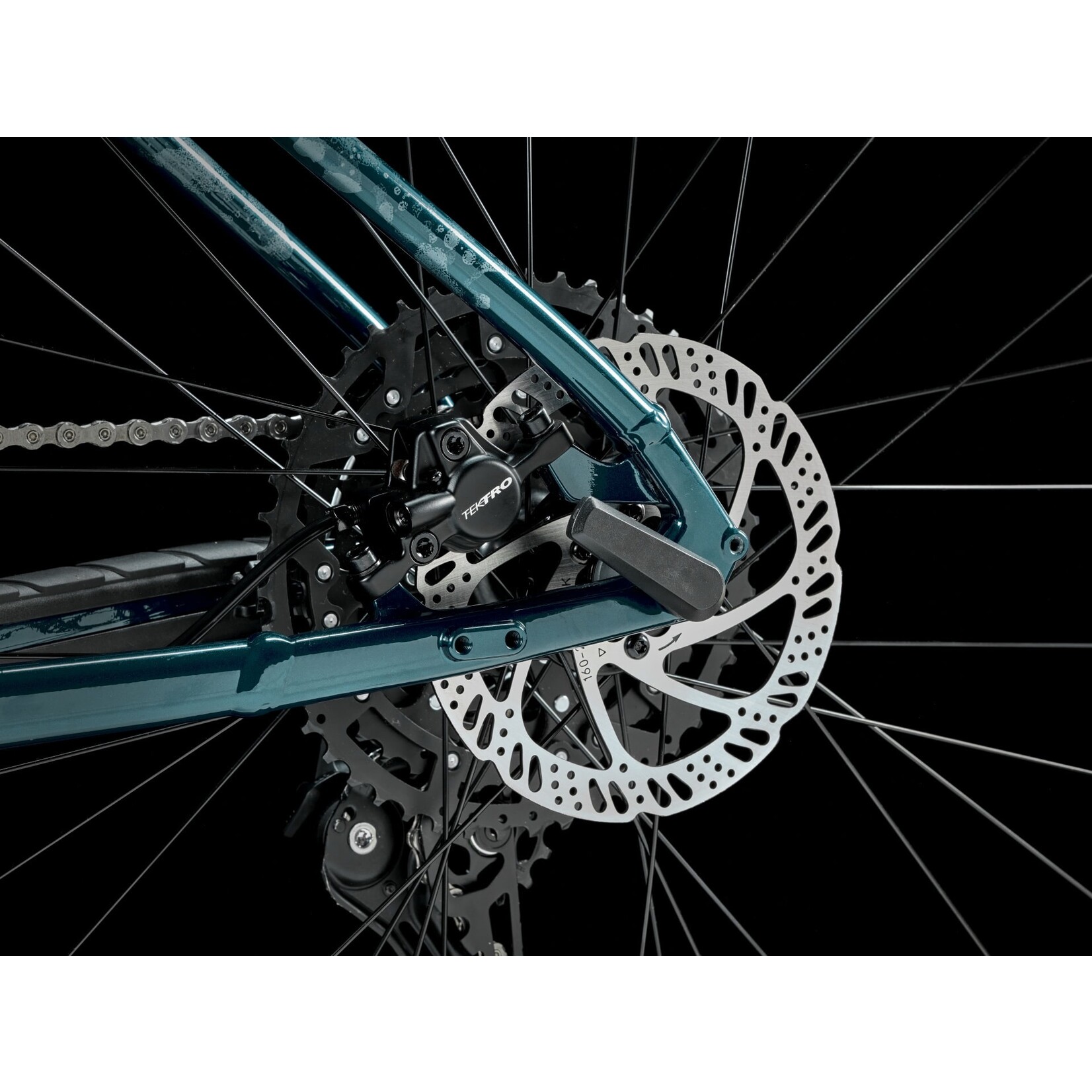

Brake rotor: Tektro, 6-bolt, 160mm
*Brake Set: Size: XXS , XS , S
Tektro HD-M276 hydraulic disc, short reach
Size: M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc
Rotor size: Max brake rotor sizes - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

Weight
Weight: M - 14.50 kg / 31.97 lbs (with tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
