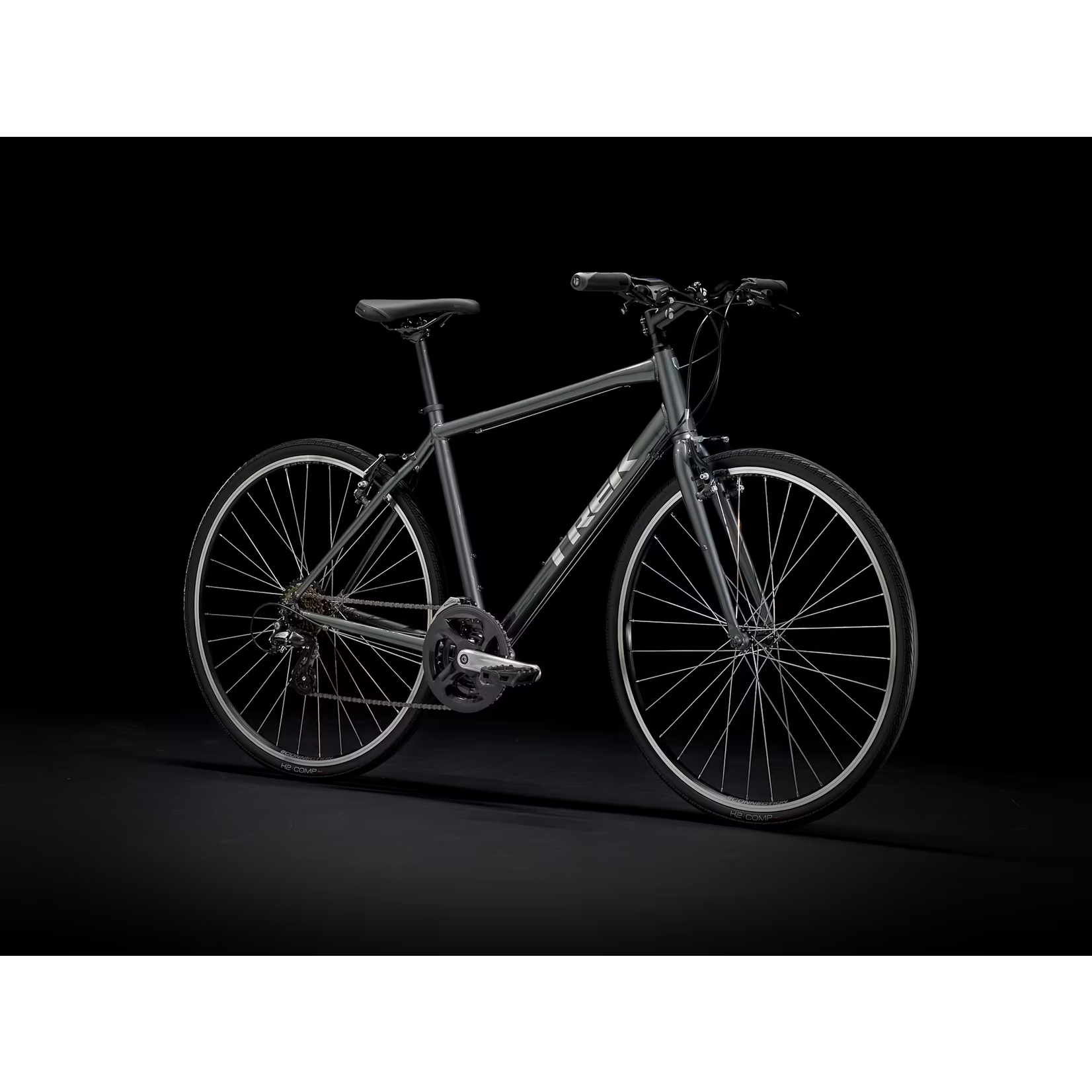

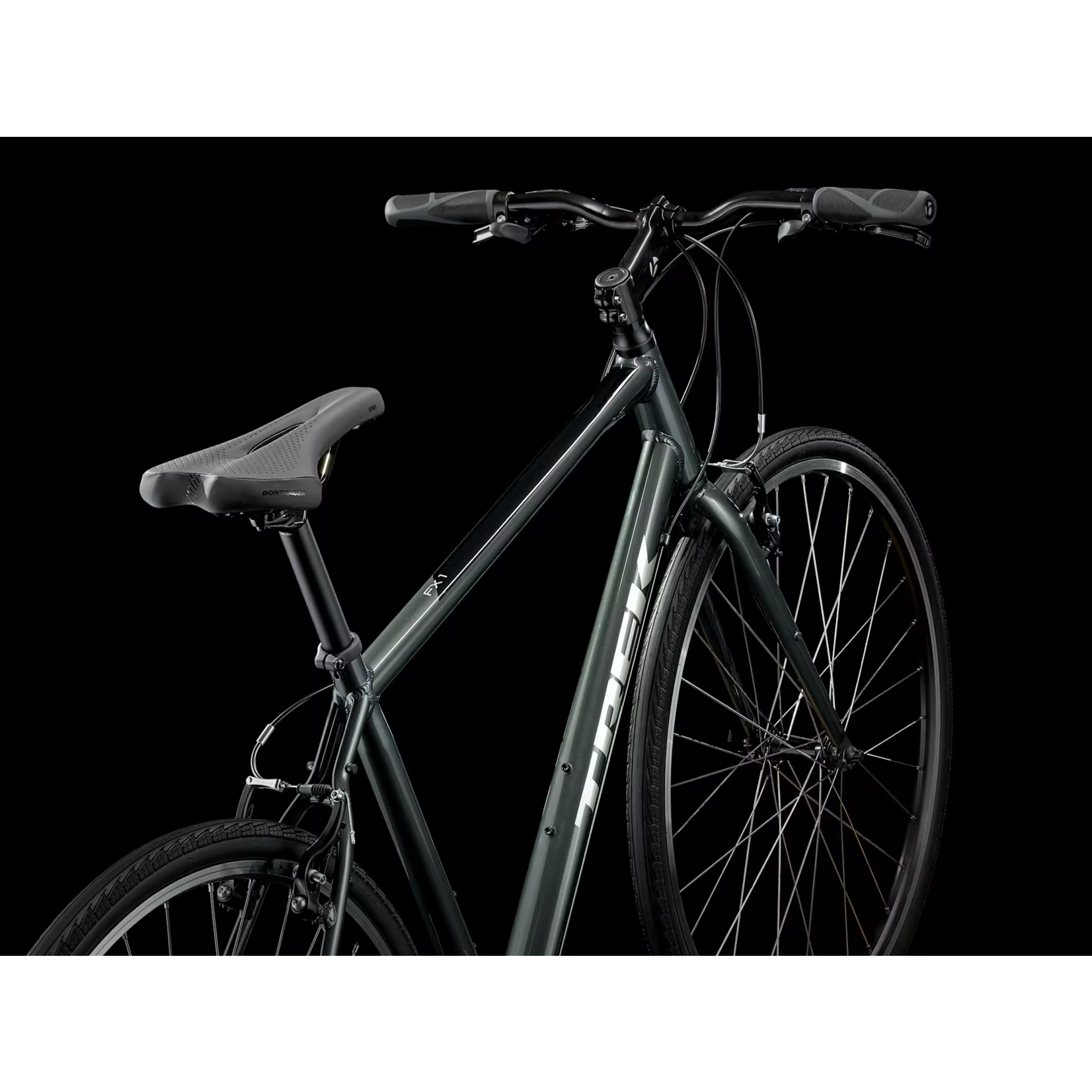

FX 1 is a hybrid bike with a lightweight aluminum frame and quality parts that perform wherever you like to ride. It's perfect for anyone looking to get out more, ride as a family, do a bit of exercise, or commute to work on a versatile bike backed by a lifetime warranty.

Why you'll love it
1. FX 1 is a versatile ride that does whatever you want it to do, whether that's riding for fitness, commuting, or cruising to the farmer's market to pick up groceries

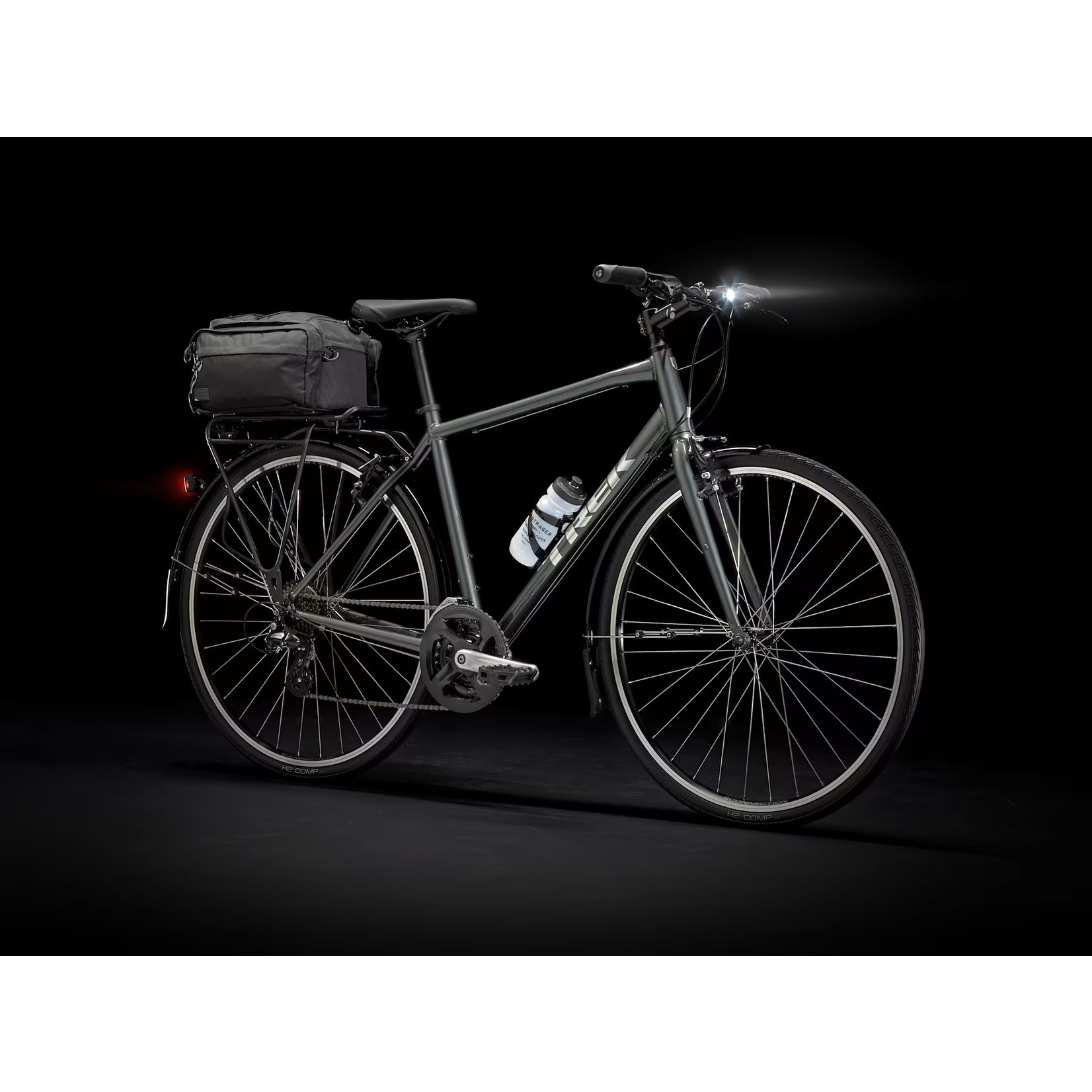

2. It's easy to accessorize with racks, a kickstand, fenders, lights, and more!
3. Like every Trek hybrid, it's backed by a lifetime warranty and supported by a wide network of retail partners

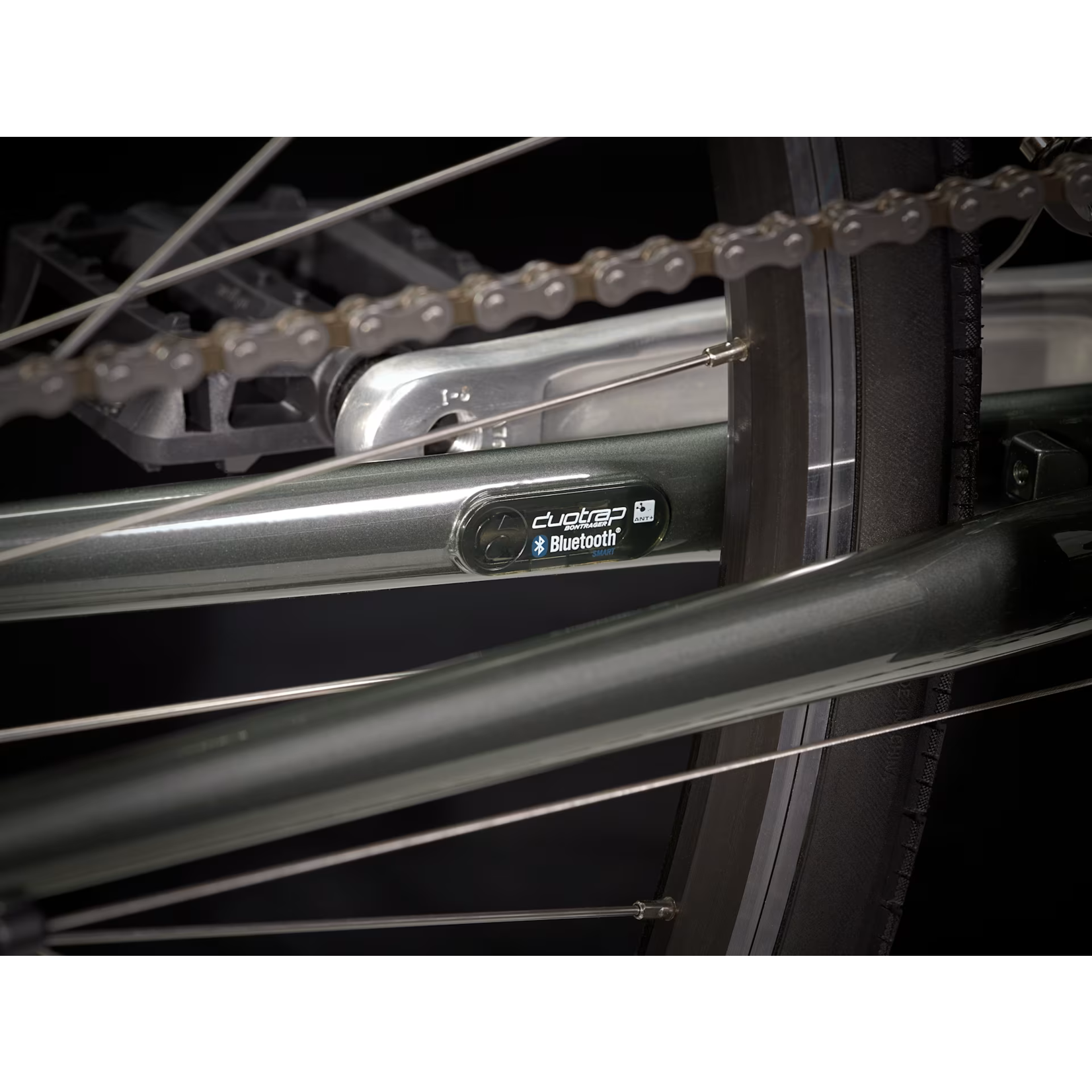

4. You can pair FX with your smartphone and send your ride data to your favourite fitness app when you add DuoTrap S

Specification

*Please note - spec applies to all sizes unless listed separately

Frameset
Frame: Alpha Gold Aluminum, rack & fender mounts, DuoTrap S compatible, cantilever brake mount, 135x5mm QR
Fork: FX Steel, threadless steel steerer, rack mounts, cantilever brake mount, 405mm axle-to-crown, 5x100mm QR

Wheels
Hub front: Formula FM21 alloy, 100x5mm QR
Skewer front: Formula QR22
Hub rear: Formula FM31 alloy, 135x5mm QR
Skewer rear: 152x5mm QR

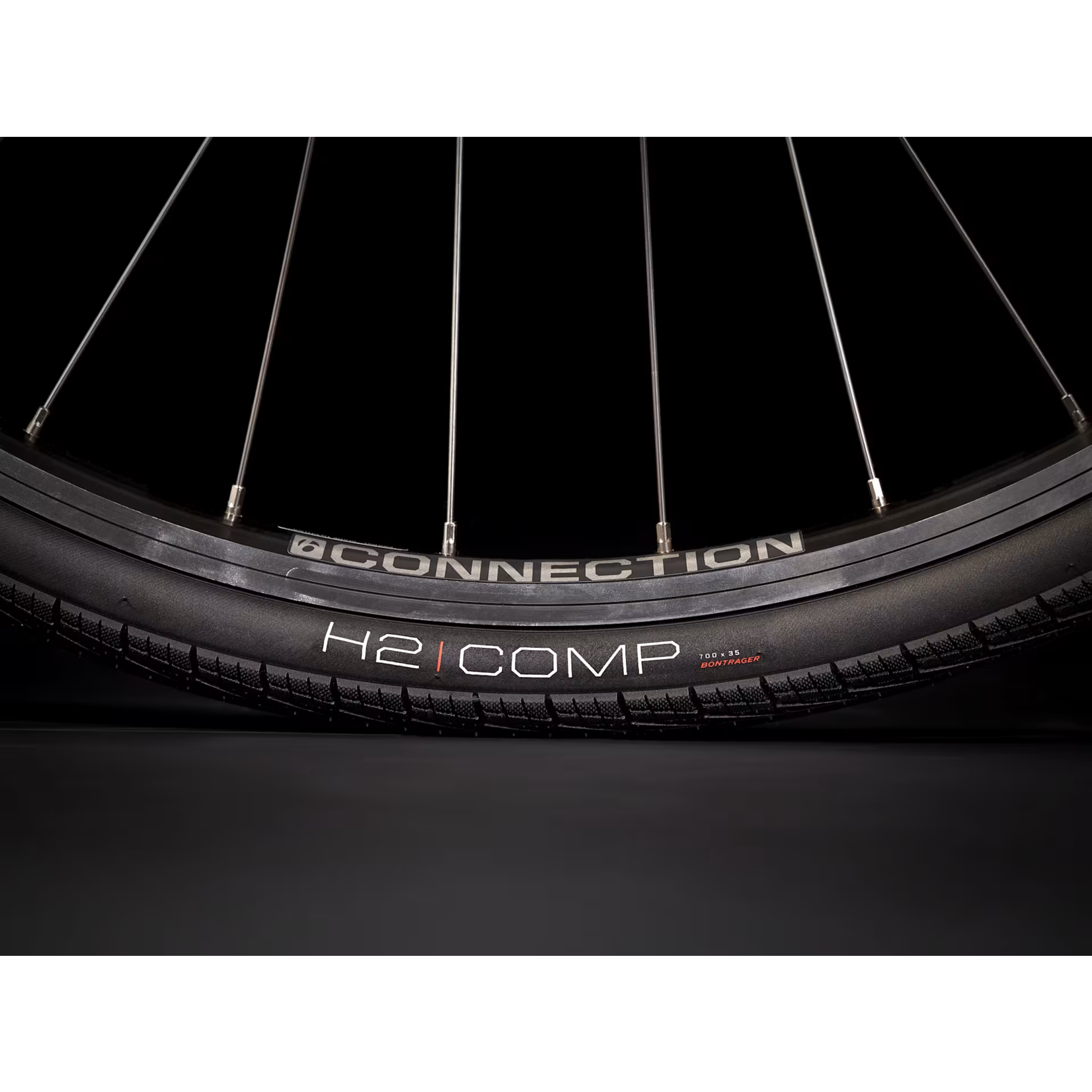

Rim: Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Tire: Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Max tire size: 700x38mm without fenders, 700x35mm with fenders

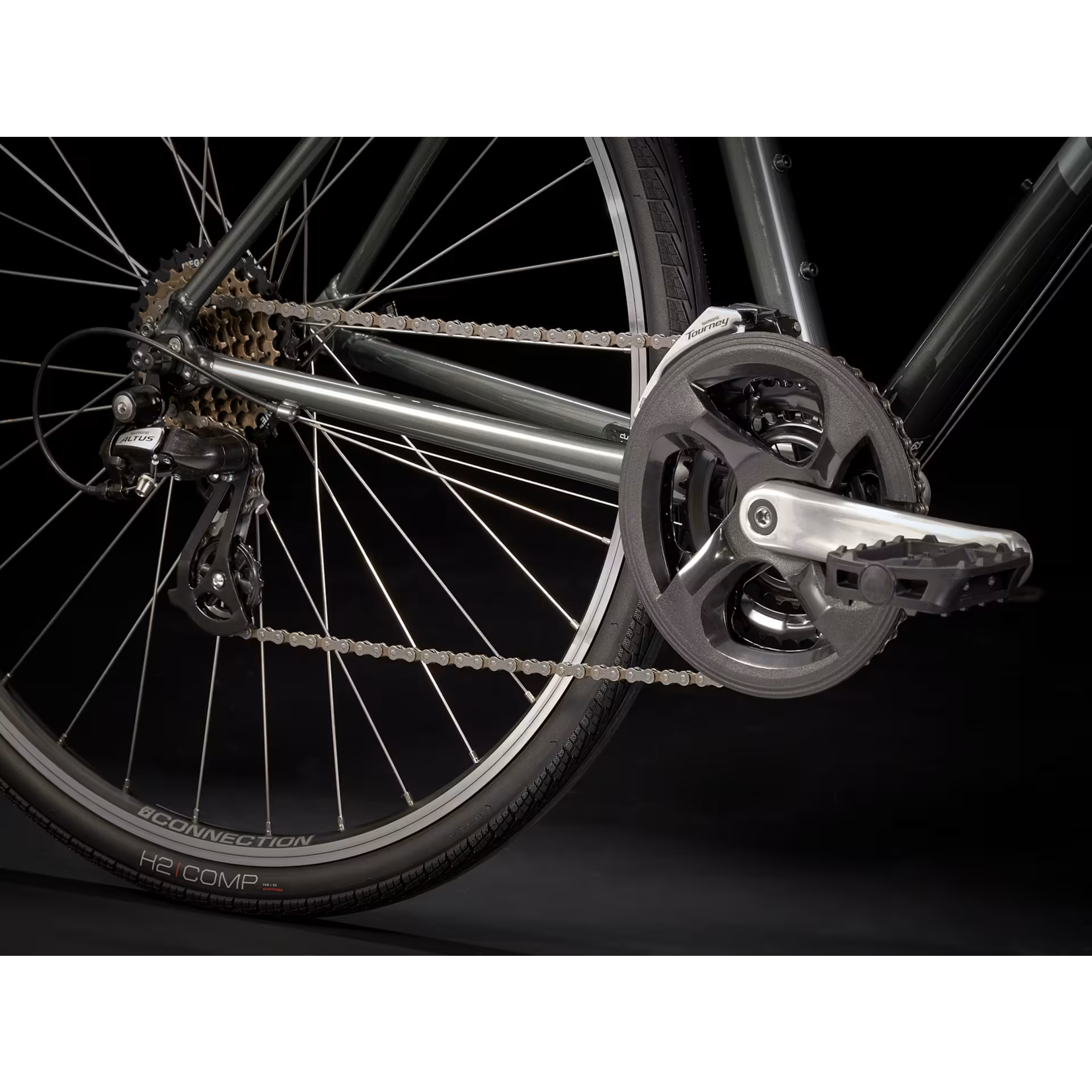

Drivetrain
Shifter: Shimano EF500, 7 speed
Front derailleur: Shimano Tourney TY510, 34.9mm clamp, top swing, dual pull
Rear derailleur: Shimano Altus M310
Crank: Forged alloy, 48/38/28, chainguard, 170mm length
Bottom bracket: Sealed cartridge, 68mm
Cassette: 14-34, 7 speed freewheel
Chain: KMC Z7
Pedal: Wellgo nylon platform

Components

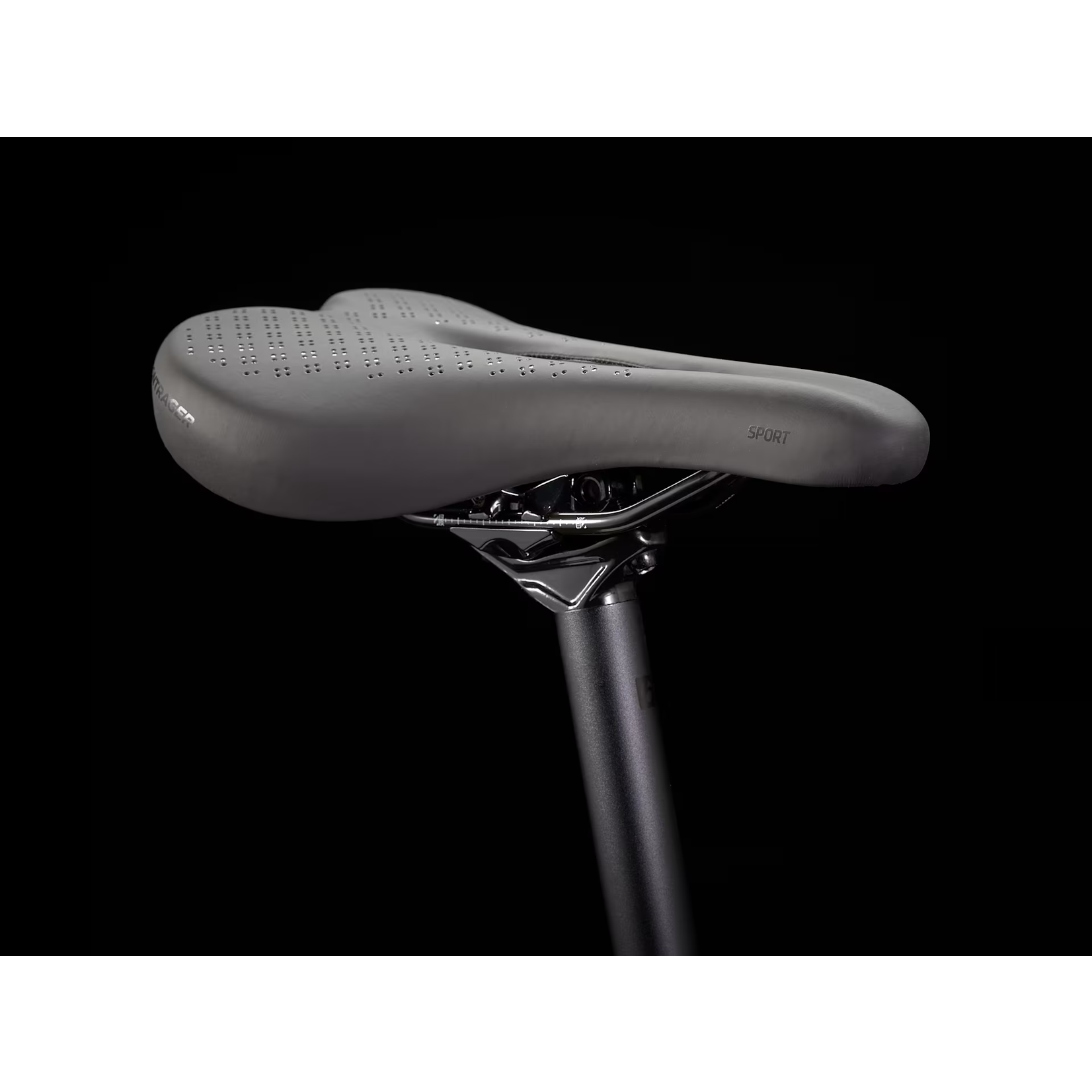

Saddle: Bontrager Sport
Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length
*Handlebar: Size: S, M, L
Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width
Size: XL
Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width

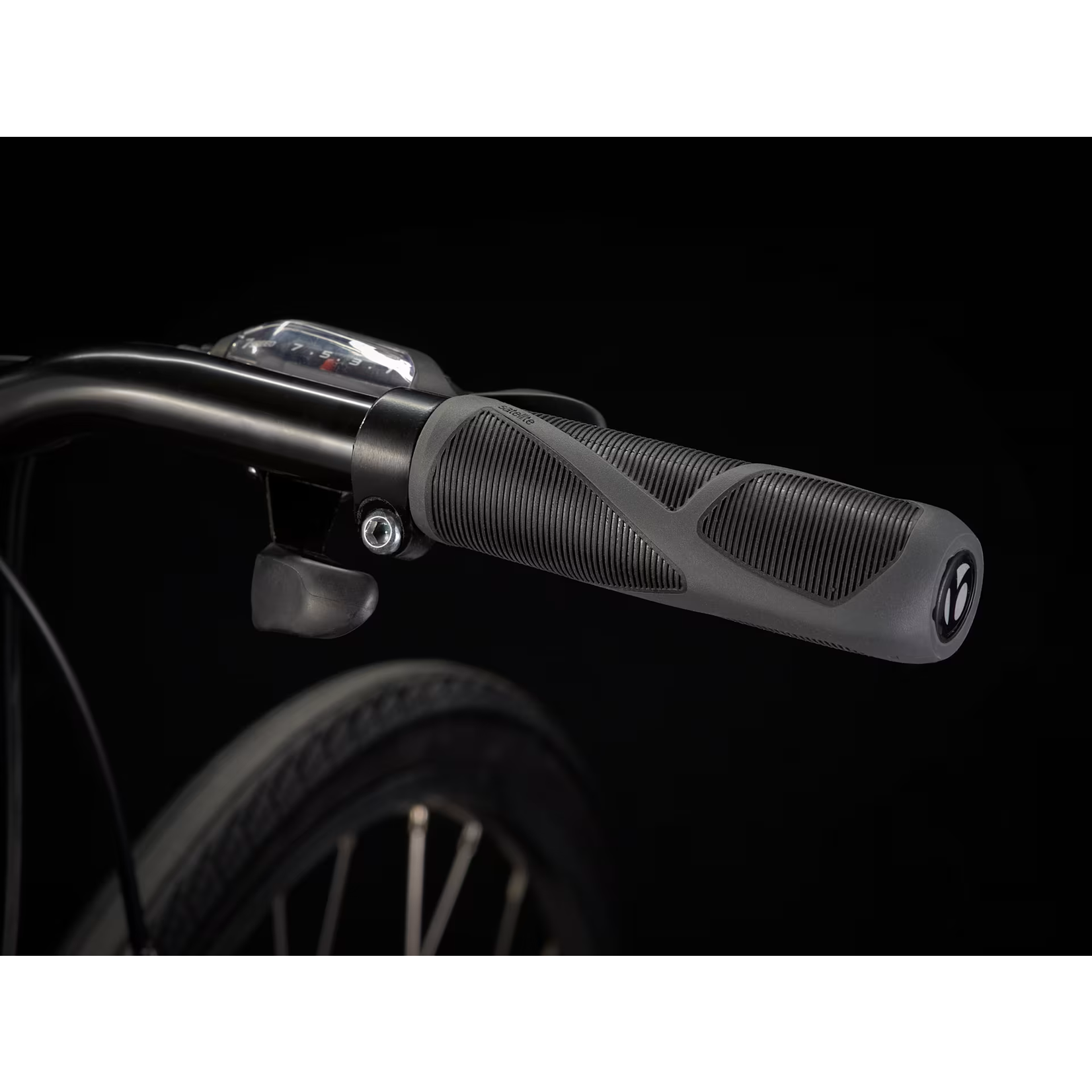

Grips: Bontrager Satellite
*Stem: Size: S, M
Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length
Size: L, XL
Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length
Headset: 1 1/8'' steel threadless

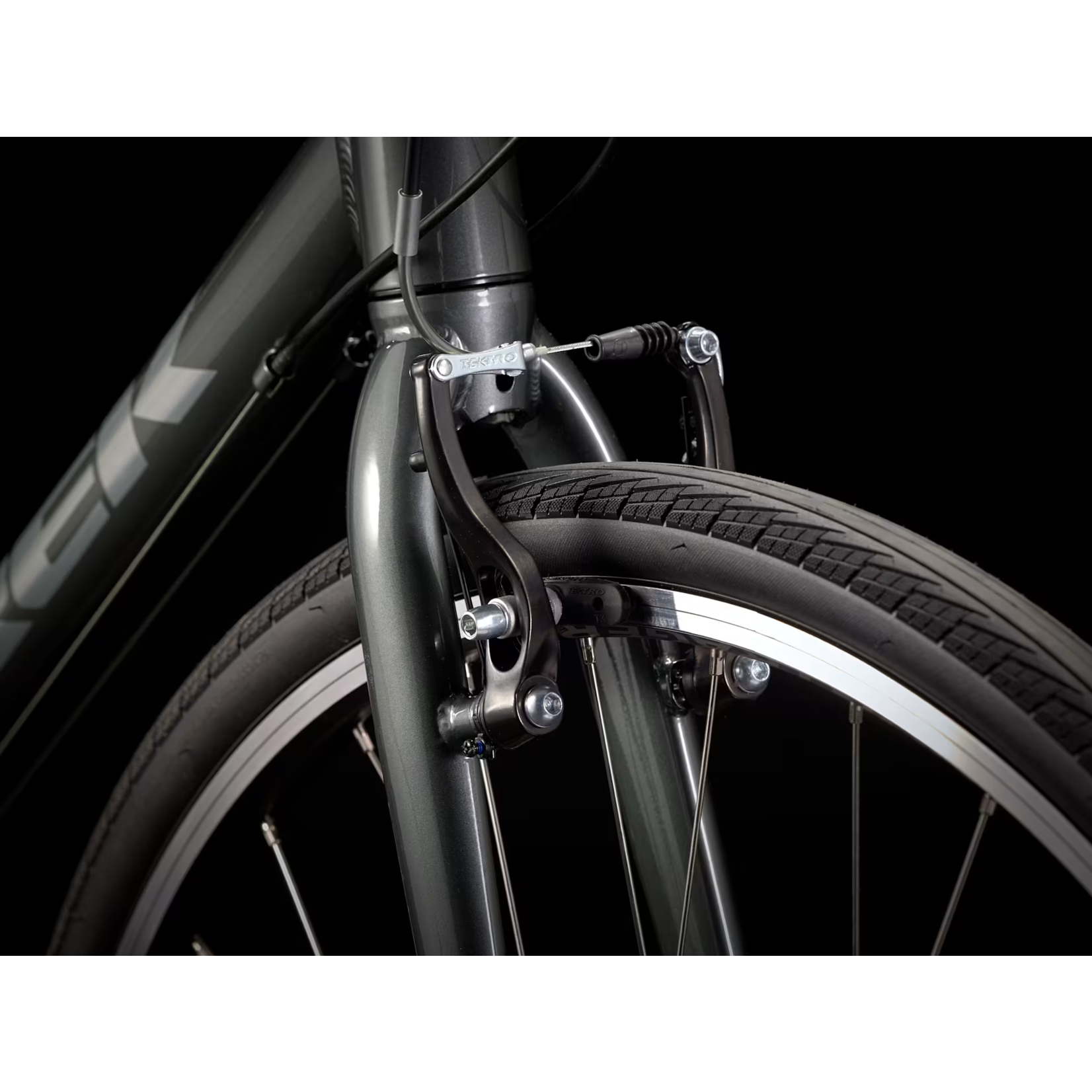

Brake: Tektro alloy linear-pull

Weight
Weight: M - 12.57 kg / 27.72 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
