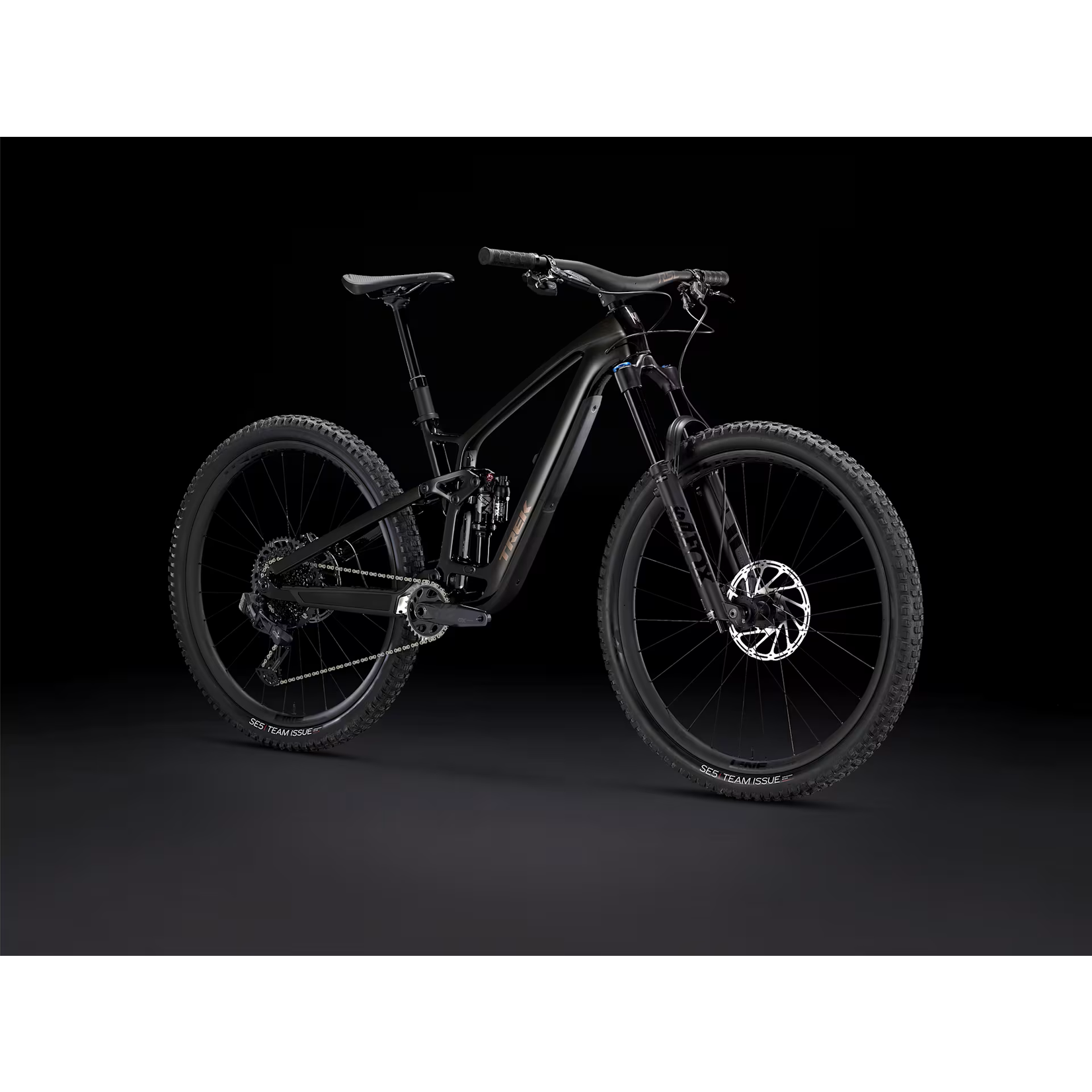

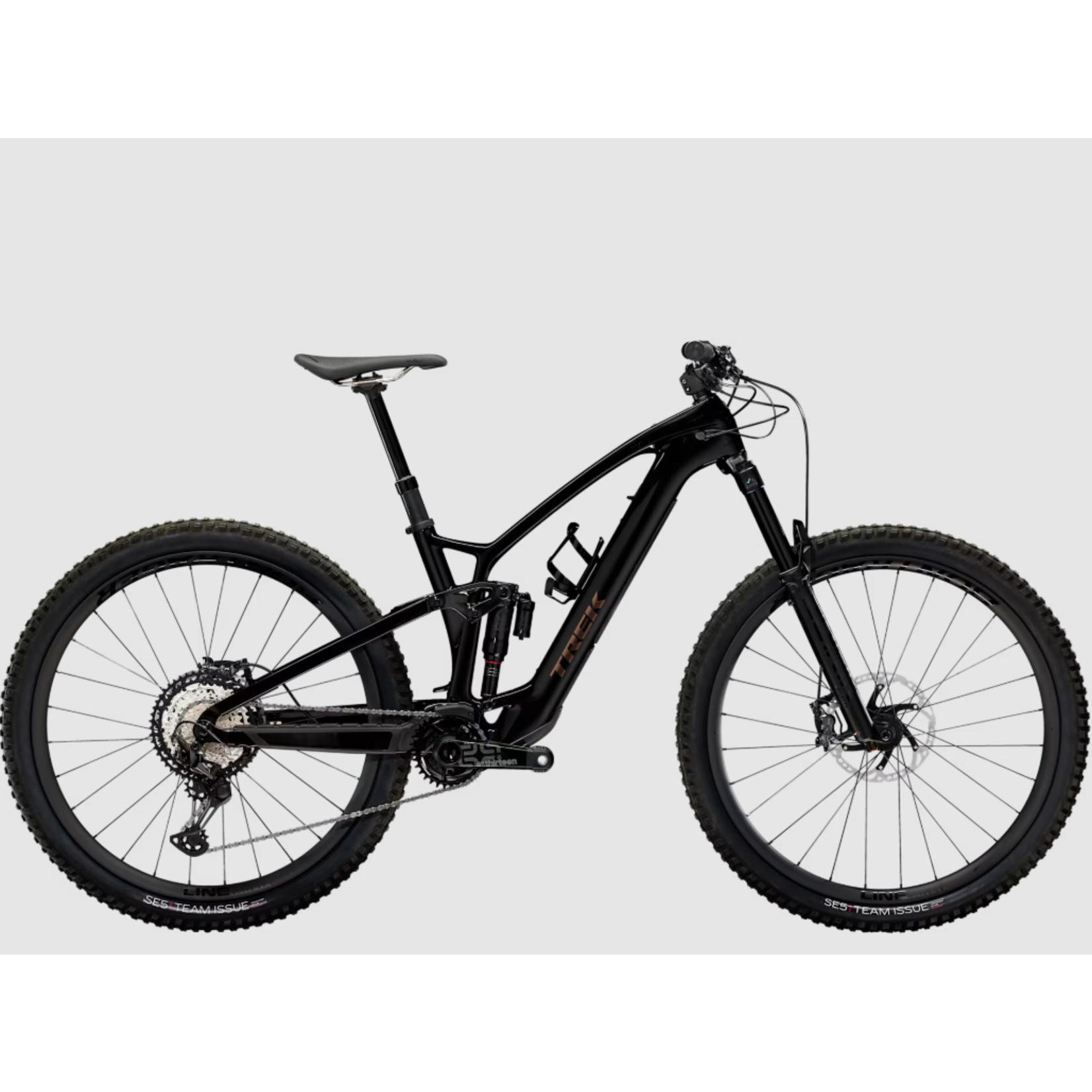

Fuel EX 9.8 is a hard-charging trail bike with a light and stiff carbon frame that's smooth, quiet, and holds its own when you pick a line. It's loaded with the latest tech like a wireless SRAM GX AXS drivetrain that's super clean looking and customizable. 150mm front and 140mm rear suspension keep you in control on the roughest trails and it's all topped off with carbon Bontrager wheels with a quick-engaging hub.

Why you'll love it
1. Its lightweight carbon frame and progressive geometry are built to tackle steep and gnarly descents and punchy climbs alike
2. It comes with light and stiff carbon wheels that make quick work of technical terrain and keep you on your line, even when things get hairy
3. You get the latest technology in SRAM's workhorse GX groupset, with wireless AXS shifting
4. With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
5. We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels

Specification
*Please note - spec applies to all sizes unless listed separately

Frameset

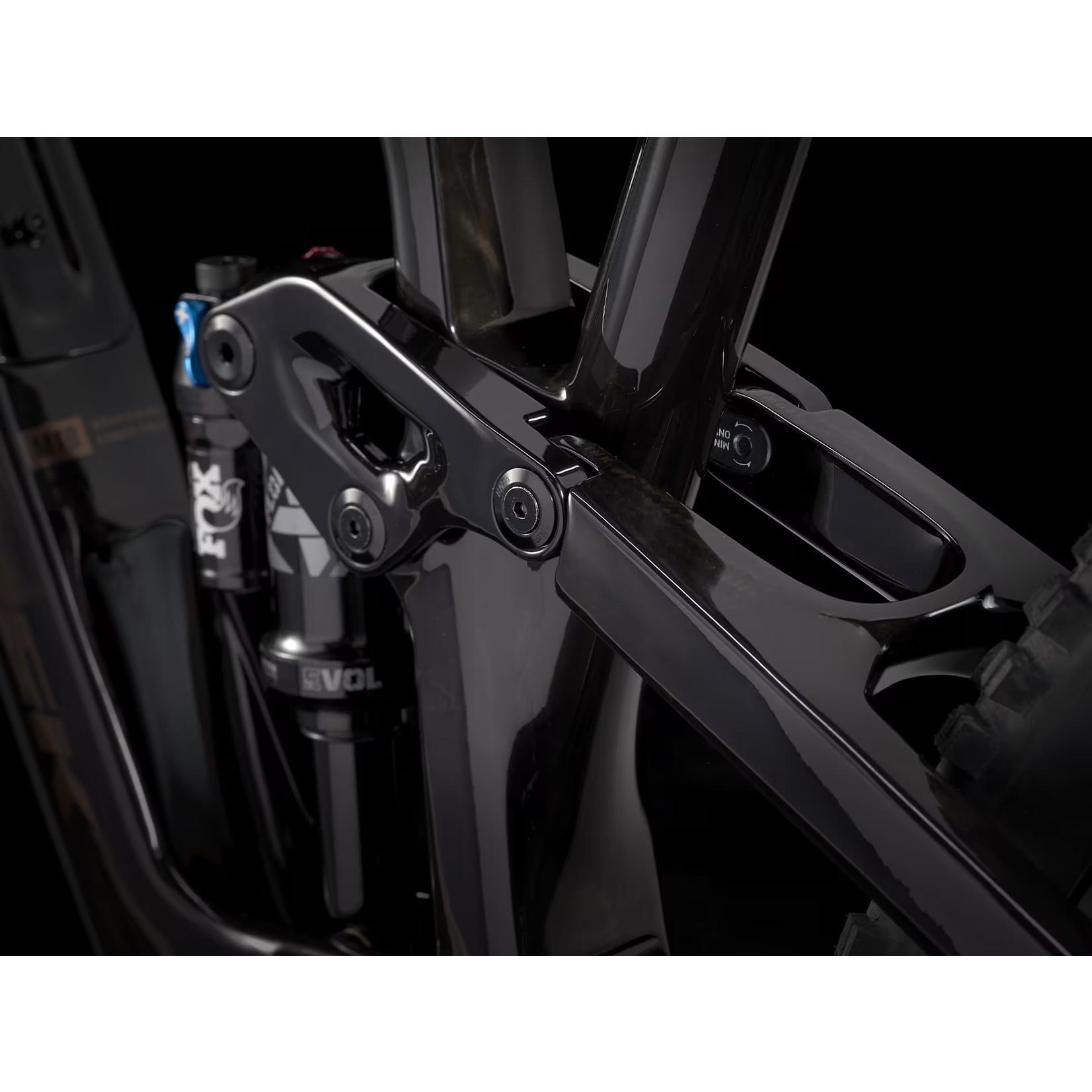

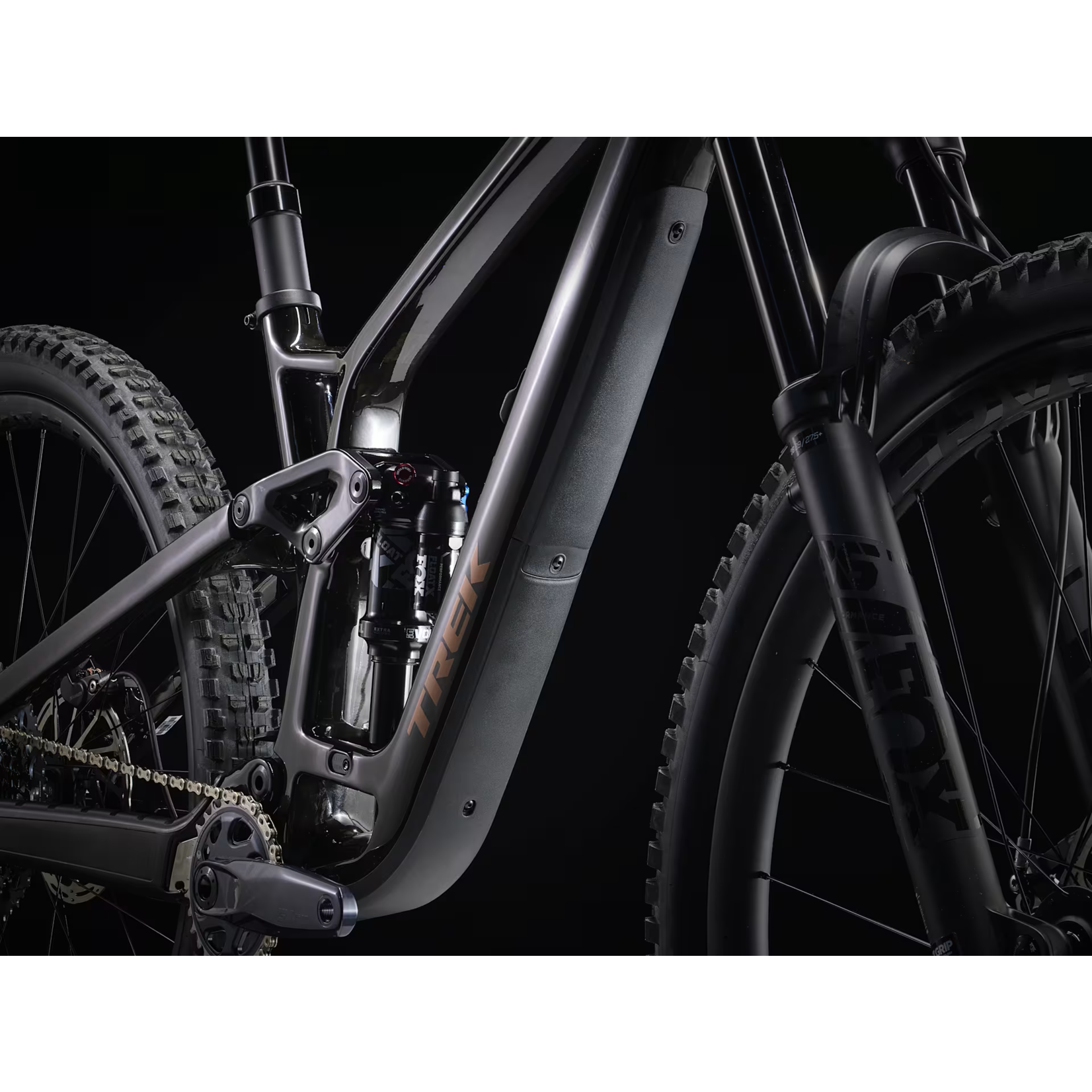

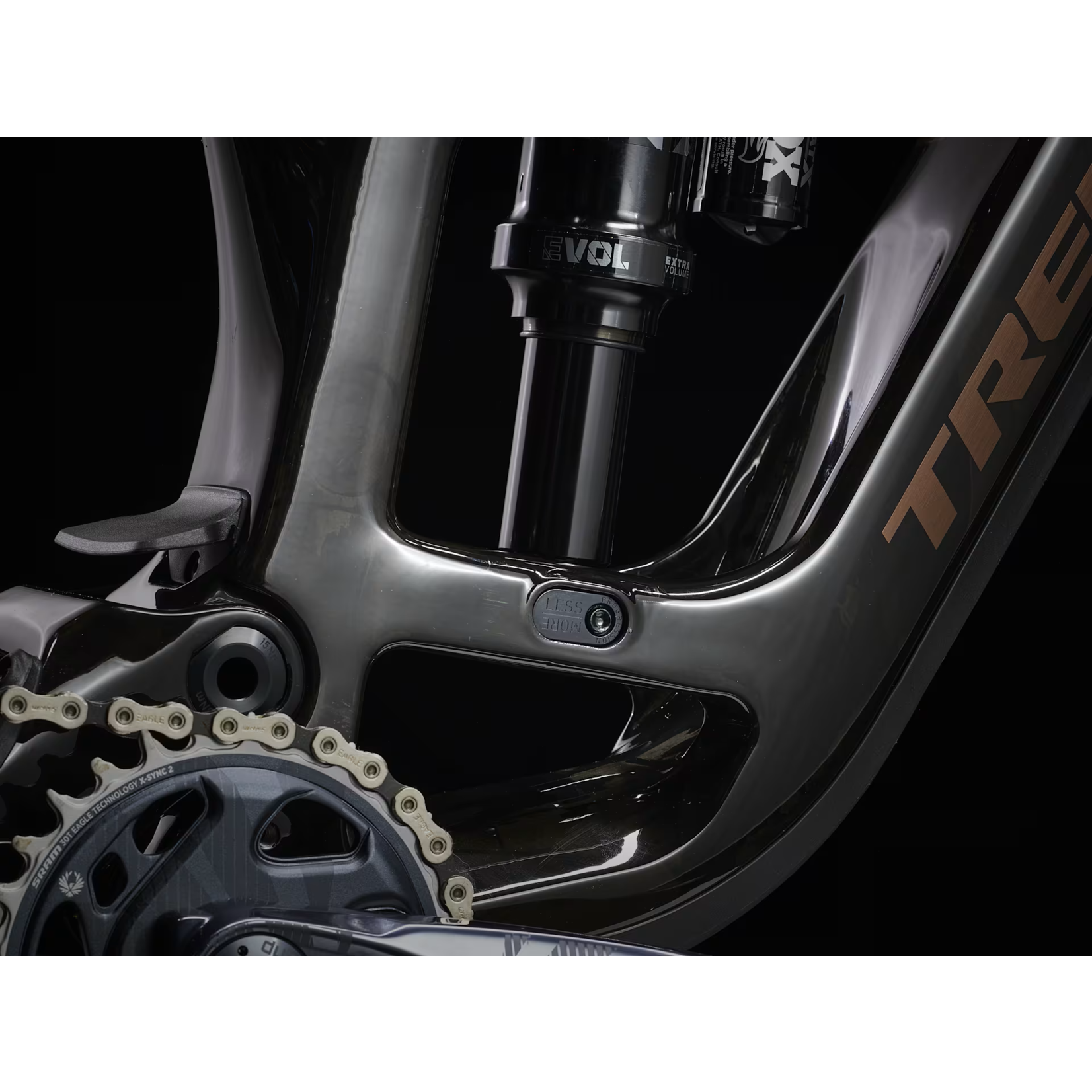

Frame: OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
Fork: Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel

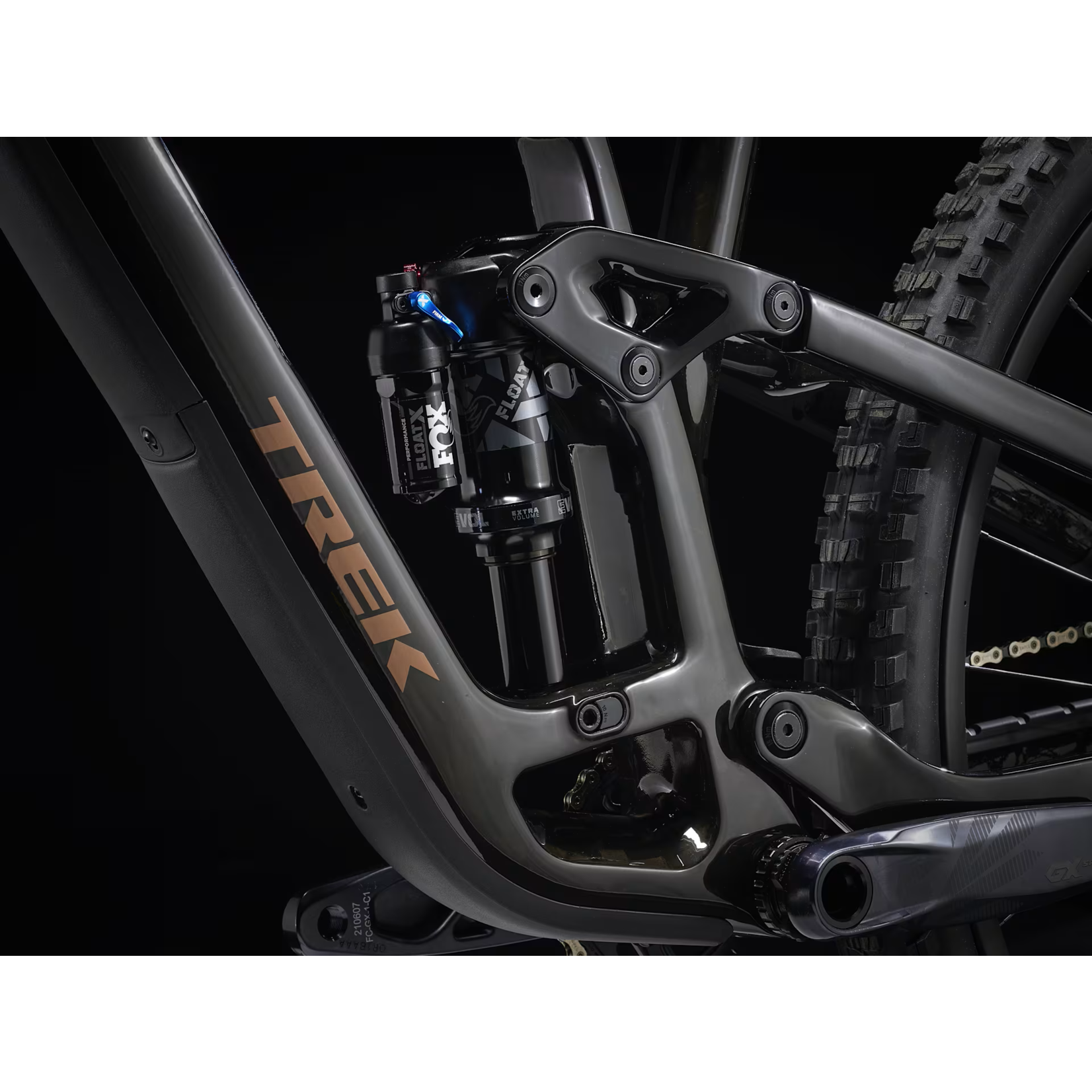

Shock: Fox Performance Float X, 2-position damper, 185mm x 55mm
Max compatible fork travel: 160mm

Wheels
*Wheel front: Size: XS , S
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''
Size: S , M , ML , L , XL
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
*Wheel rear: Size: XS , S
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5''
Size: S , M , ML , L , XL
Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 29''
Hub front: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
Rim: Bontrager Line Elite 30, Tubeless Ready
*Tire: Size: XS , S

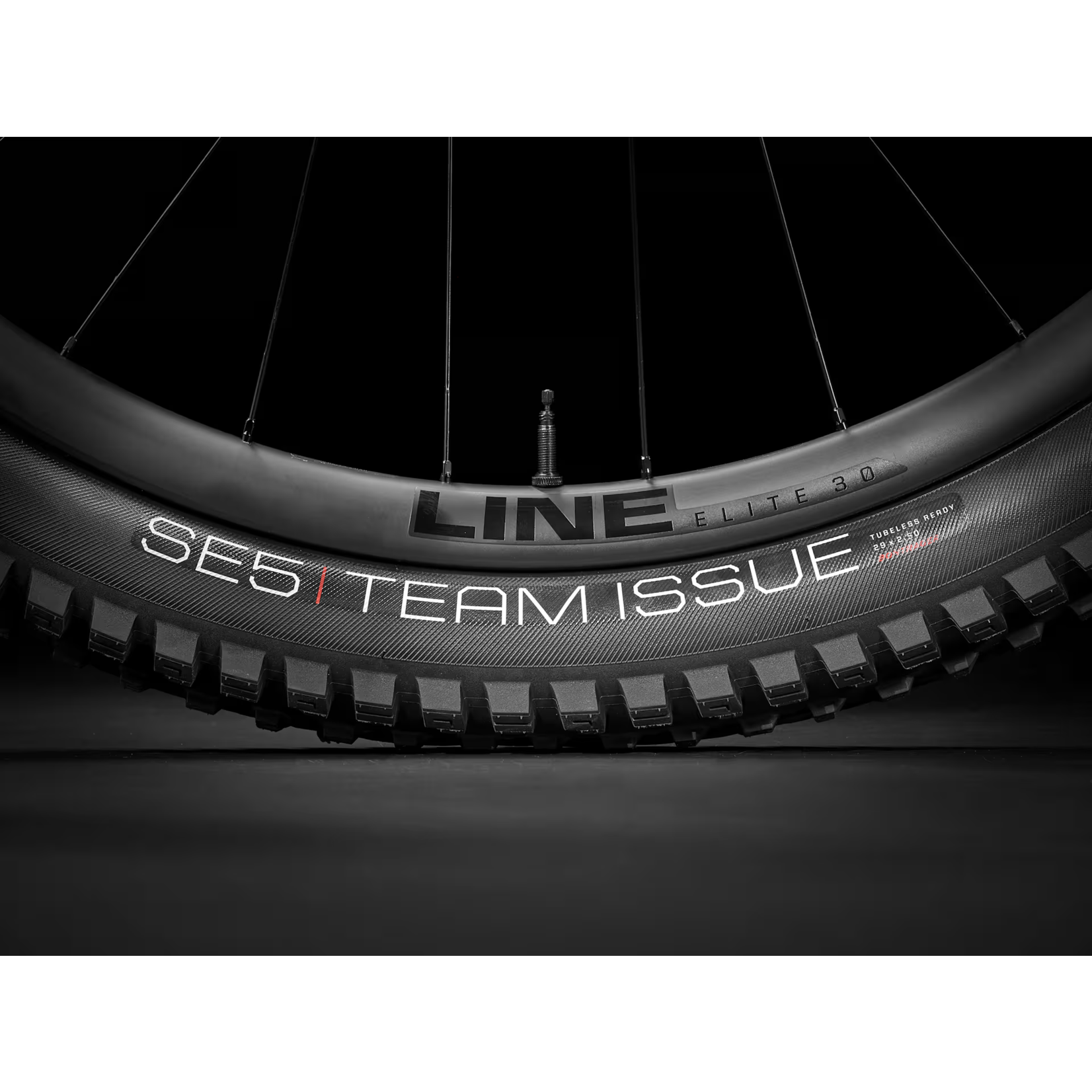

Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50''
Size: S , M , ML , L , XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50''
Tire part: Bontrager TLR sealant, 6oz
Rim strip: Bontrager TLR
Max tire size: Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer

E-system
Battery: SRAM eTap battery pack (with charger)

Drivetrain
Shifter: SRAM GX Eagle AXS, 12 speed

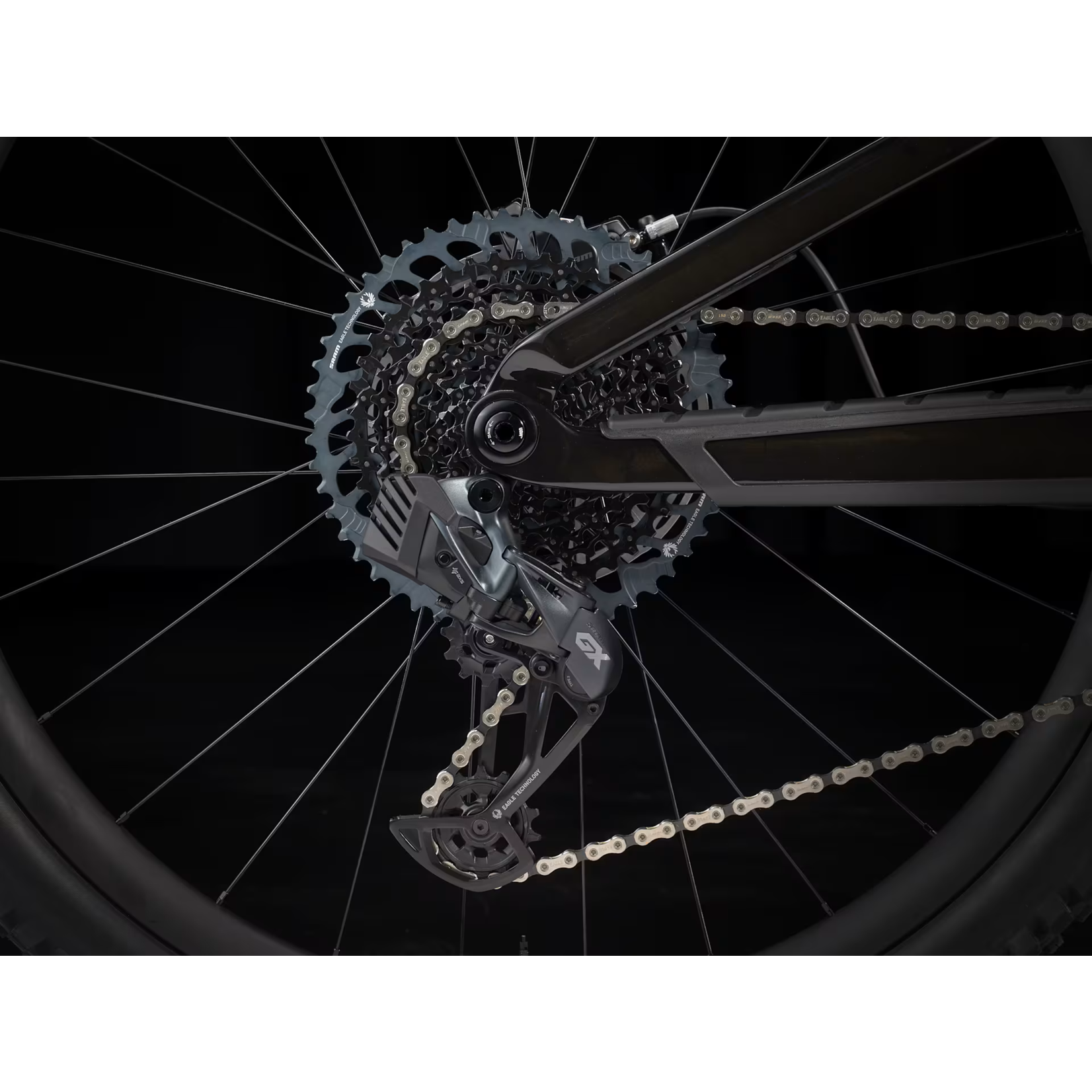

Rear derailleur: SRAM GX Eagle AXS
Crank: SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 170 length
Bottom bracket: SRAM DUB MTB Wide, 73mm, BSA threaded
Cassette: SRAM Eagle XG-1275, 10-52, 12 speed
Chain: SRAM GX Eagle, 12 speed
Max chainring size: 1x: 34T round, 32T oval, min 28T

Components
Saddle: Bontrager Arvada, austenite rails, 138mm width
*Seatpost: Size: XS , S
Bontrager Line Elite Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 345mm length
Size: M , ML
Bontrager Line Elite Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 440mm length
Size: L
Bontrager Line Elite Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 485mm length
Size: XL
Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length
*Handlebar/stem (integrated): Size: XS , S
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 35mm stem length
Size: M , ML , L , XL
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length
Grips: Bontrager XR Trail Elite, nylon lock-on

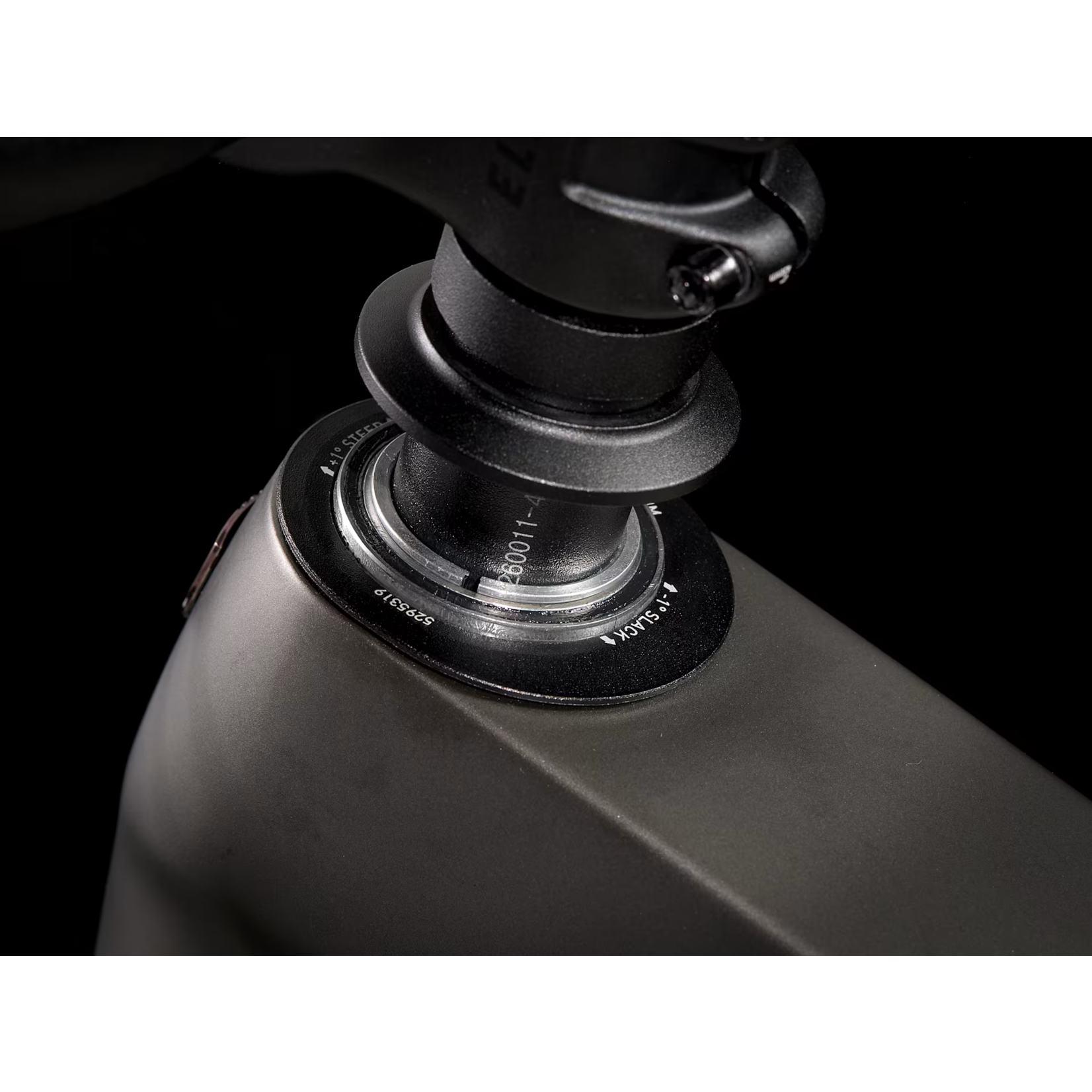

Headset: Integrated cartridge bearing, 1-1/8'' top, 1.5'' bottom, angle adjust cup compatible

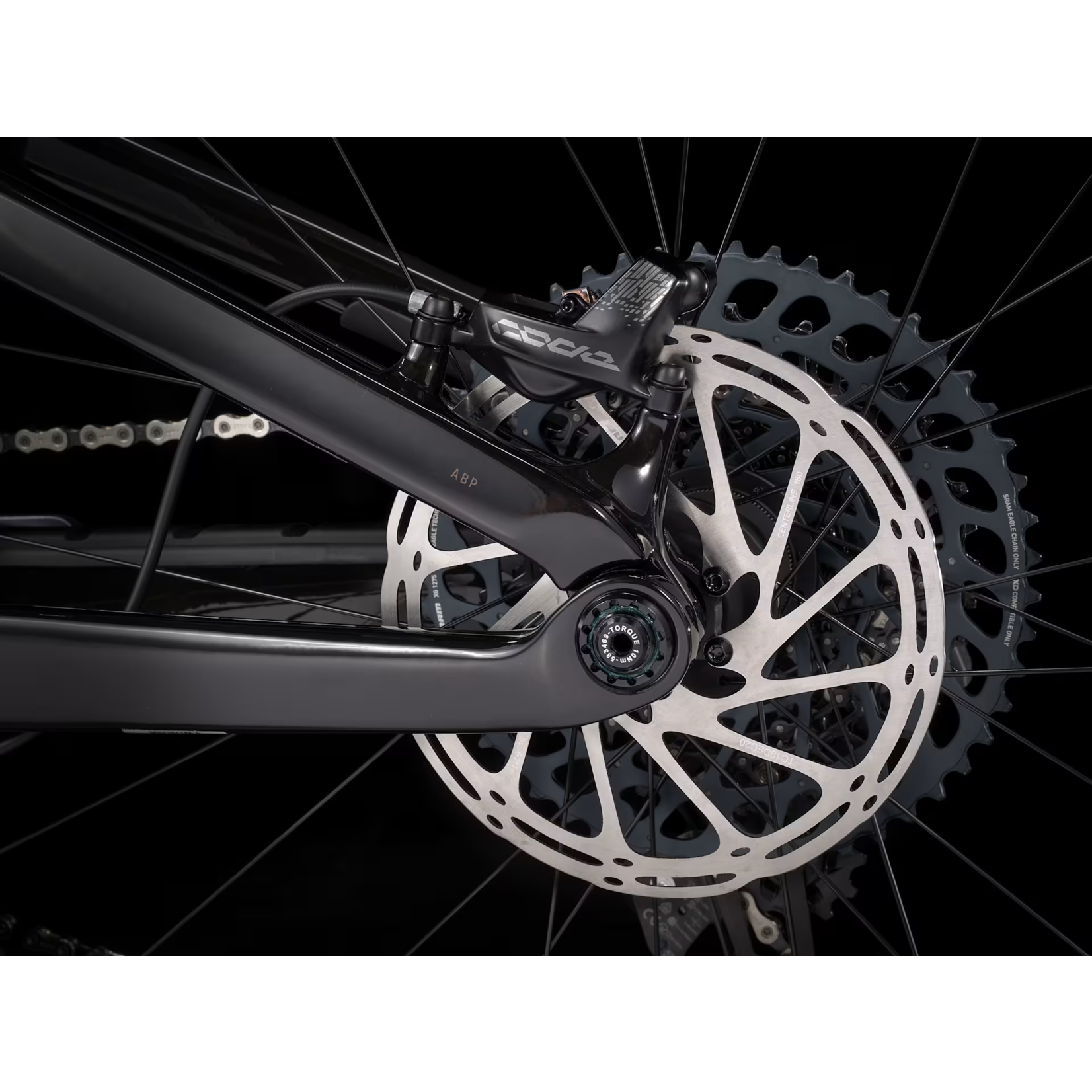

Brake: SRAM Code R 4-piston hydraulic disc
*Brake rotor: Size: XS , S , M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 180mm
Size: M , ML , L , XL
SRAM CenterLine, 6-bolt, round edge, 200mm
Rotor size: Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer

Accessories

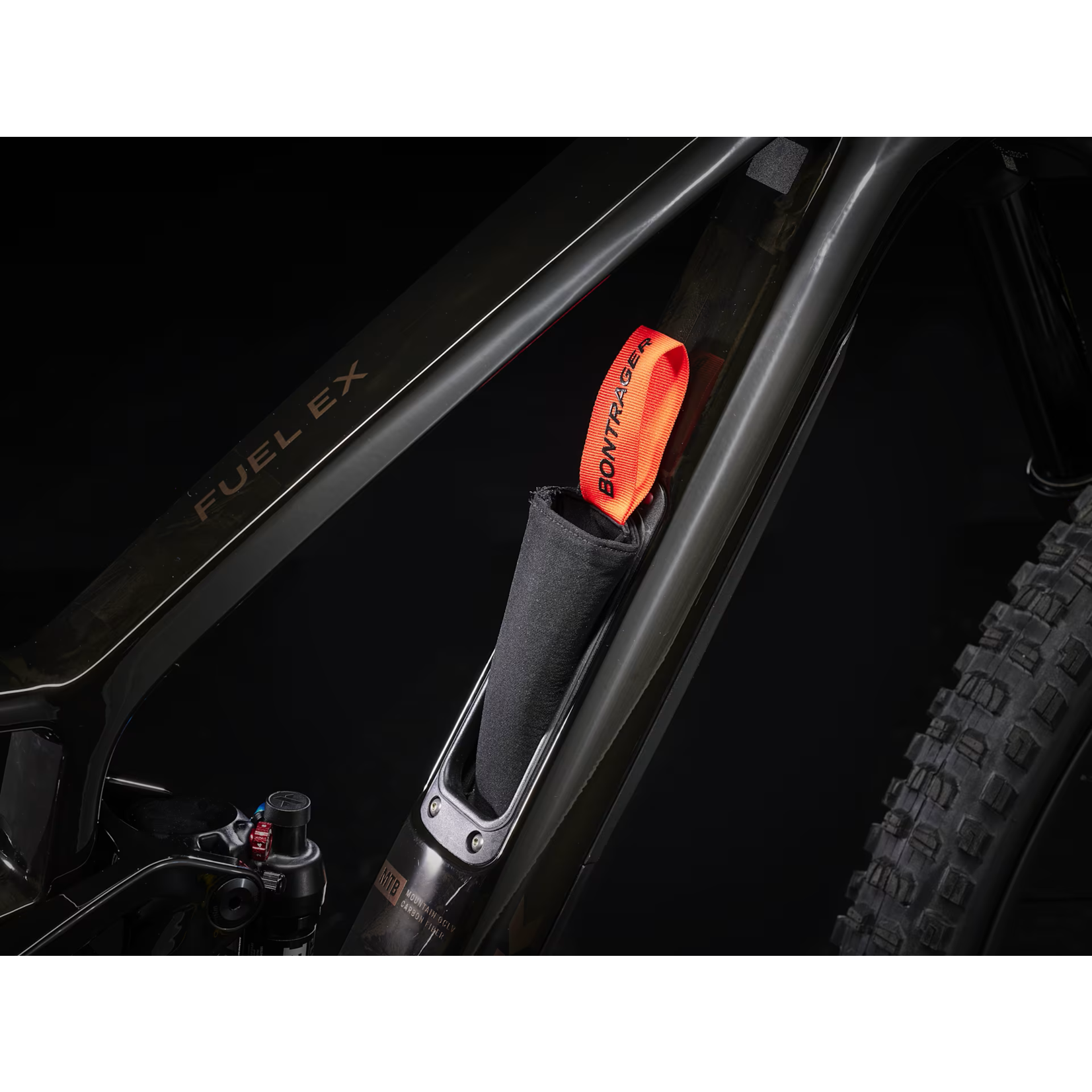

Bag: Bontrager BITS Internal Frame Storage Bag

Weight
Weight: M - 14.15 kg / 31.21 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
