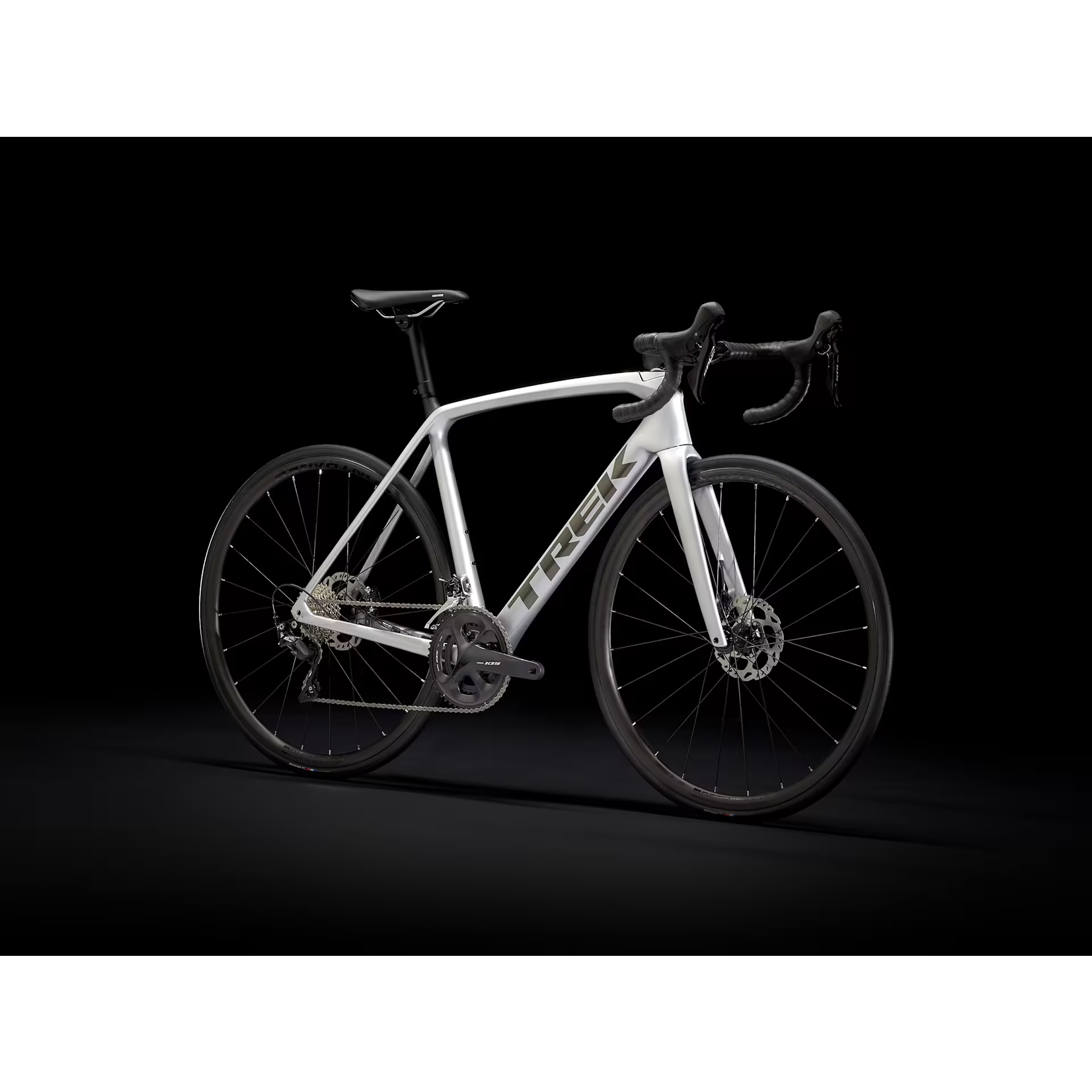

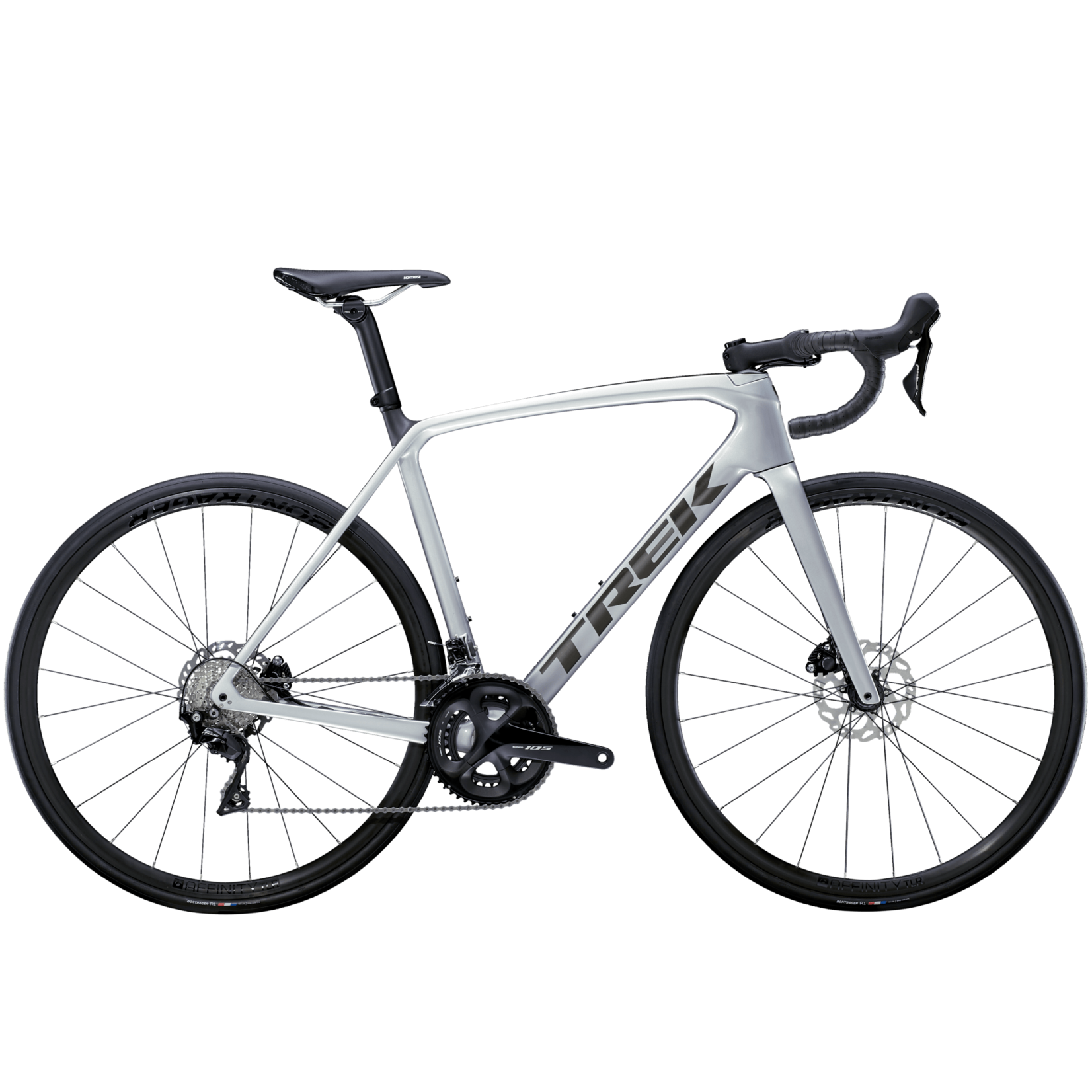

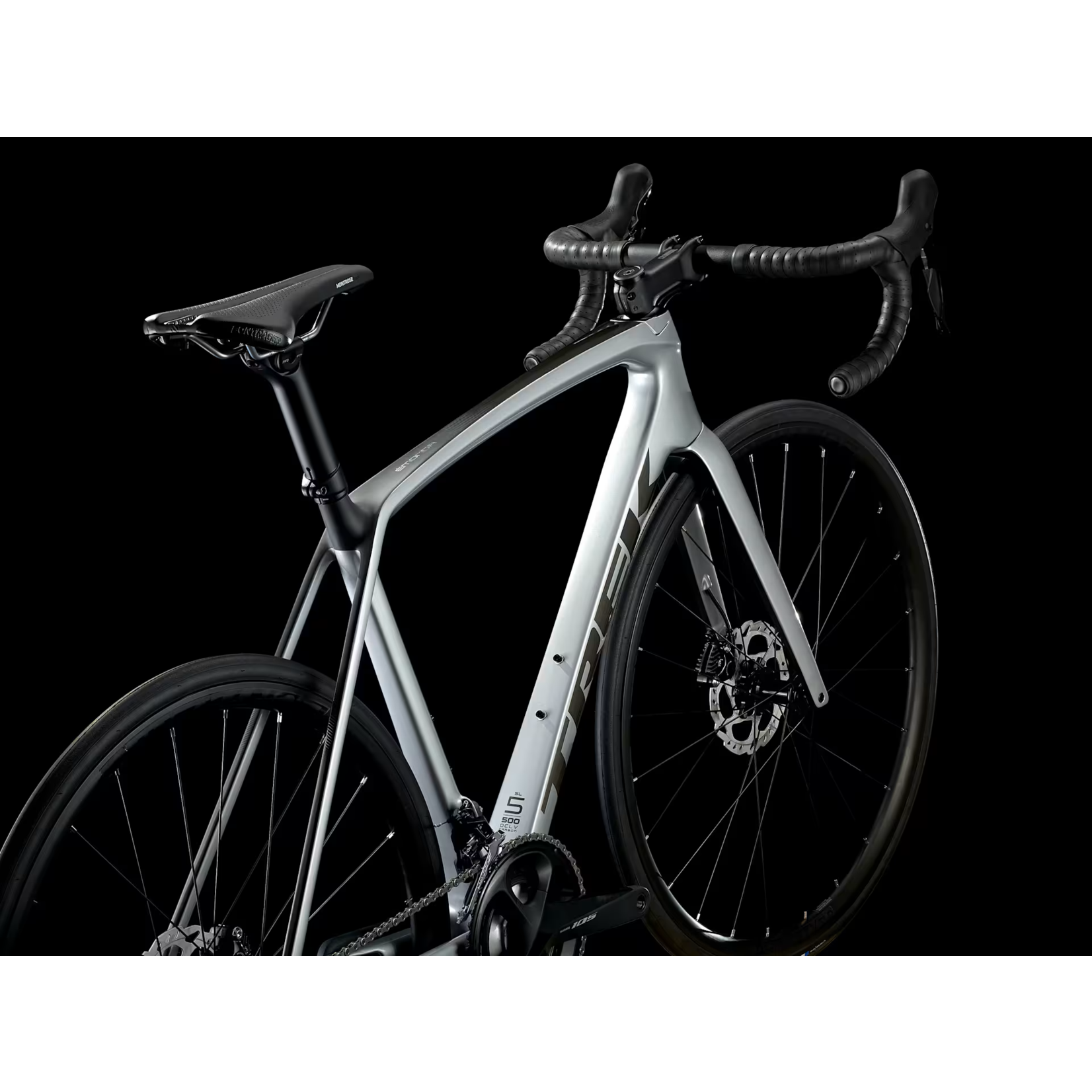

Émonda SL 5 Disc is a lightweight carbon road bike with a balanced ride quality, superior handling characteristics, and the added benefit of free speed thanks to aero tube shaping. It's a great choice for century rides on hilly terrain, windy flats, and speedy descents.

Specification

*Please note - spec applies to all sizes unless listed separately

Frameset

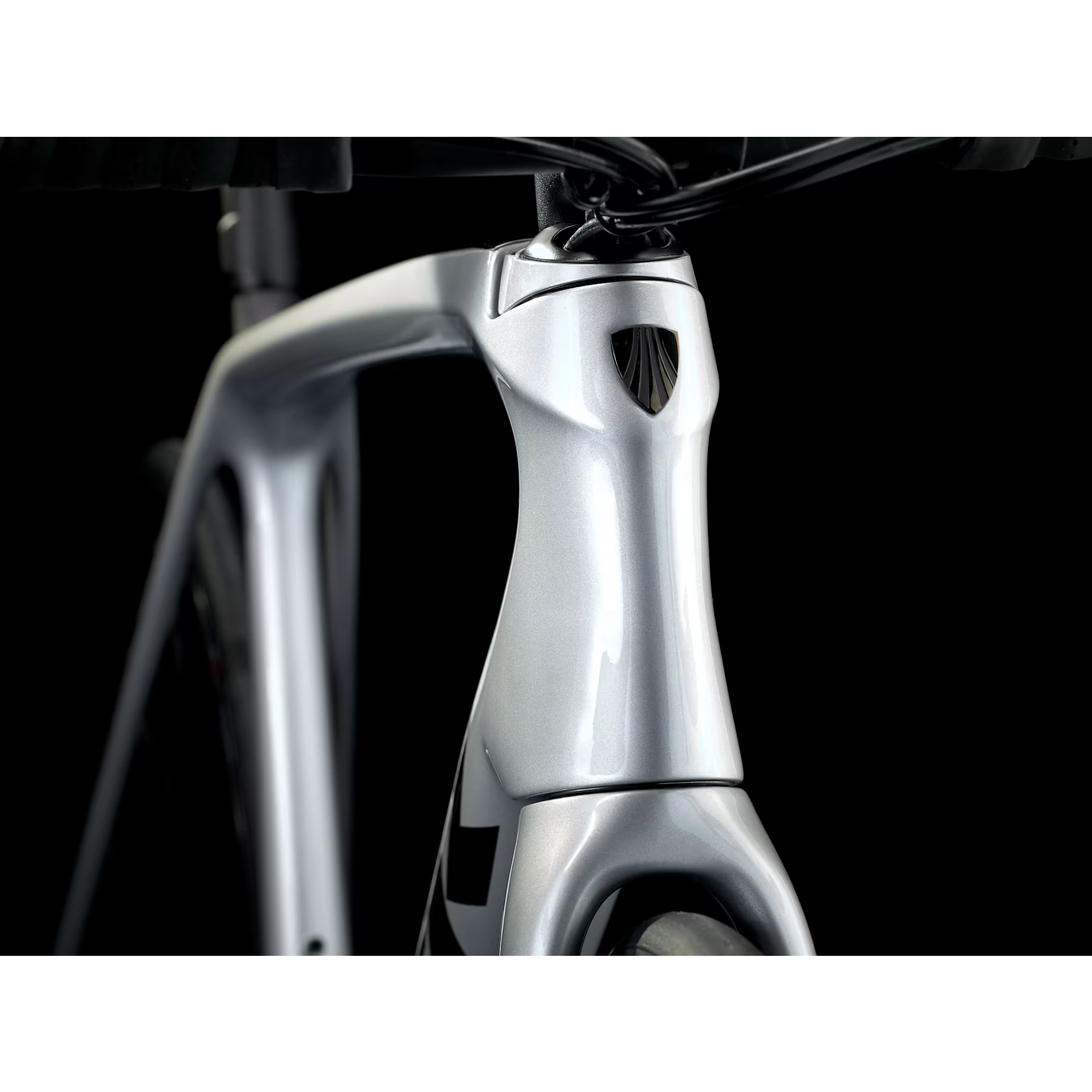

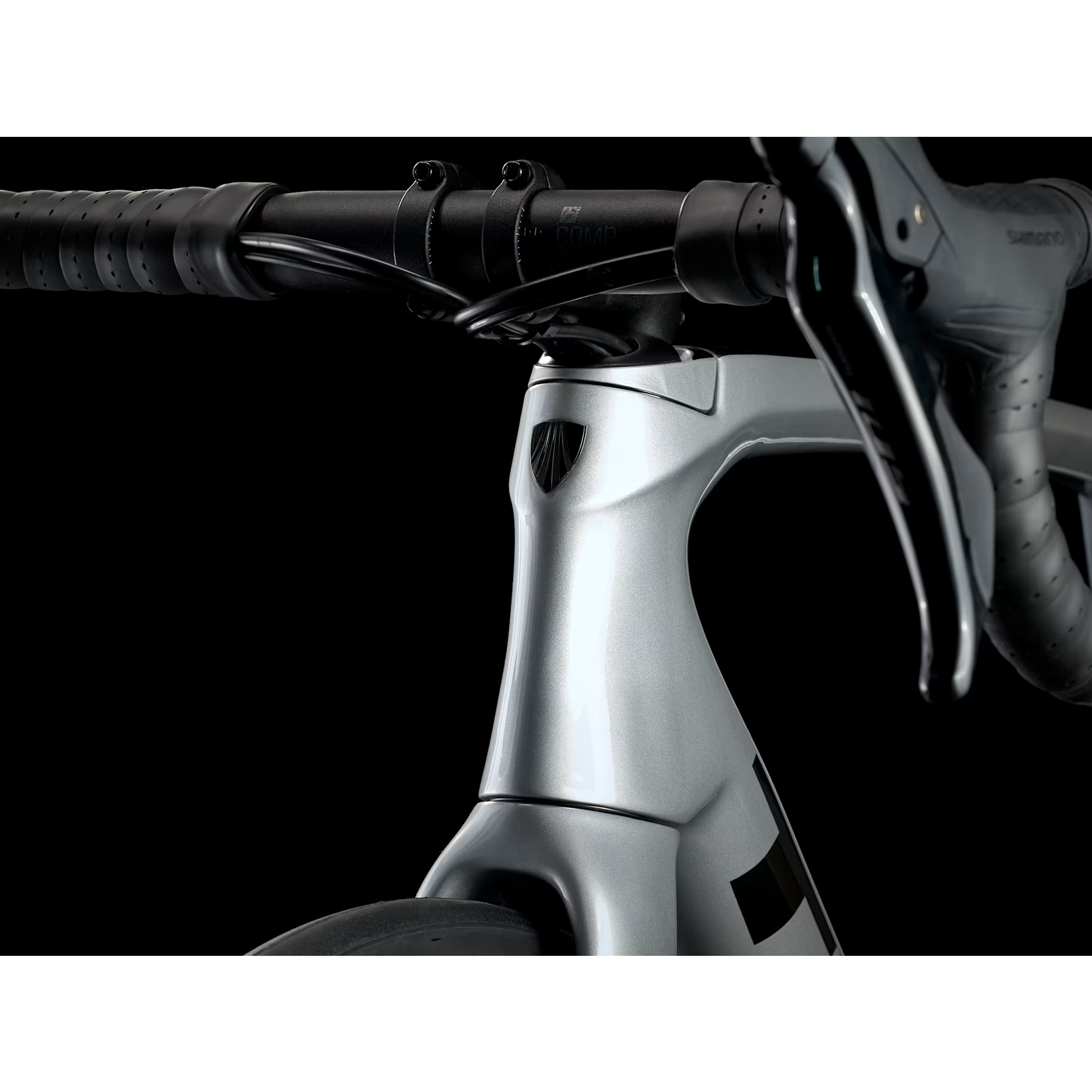

Frame: Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Fork: Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Frame fit: H1.5 Race

Weight
Weight: 56 - 8.87 kg / 19.56 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

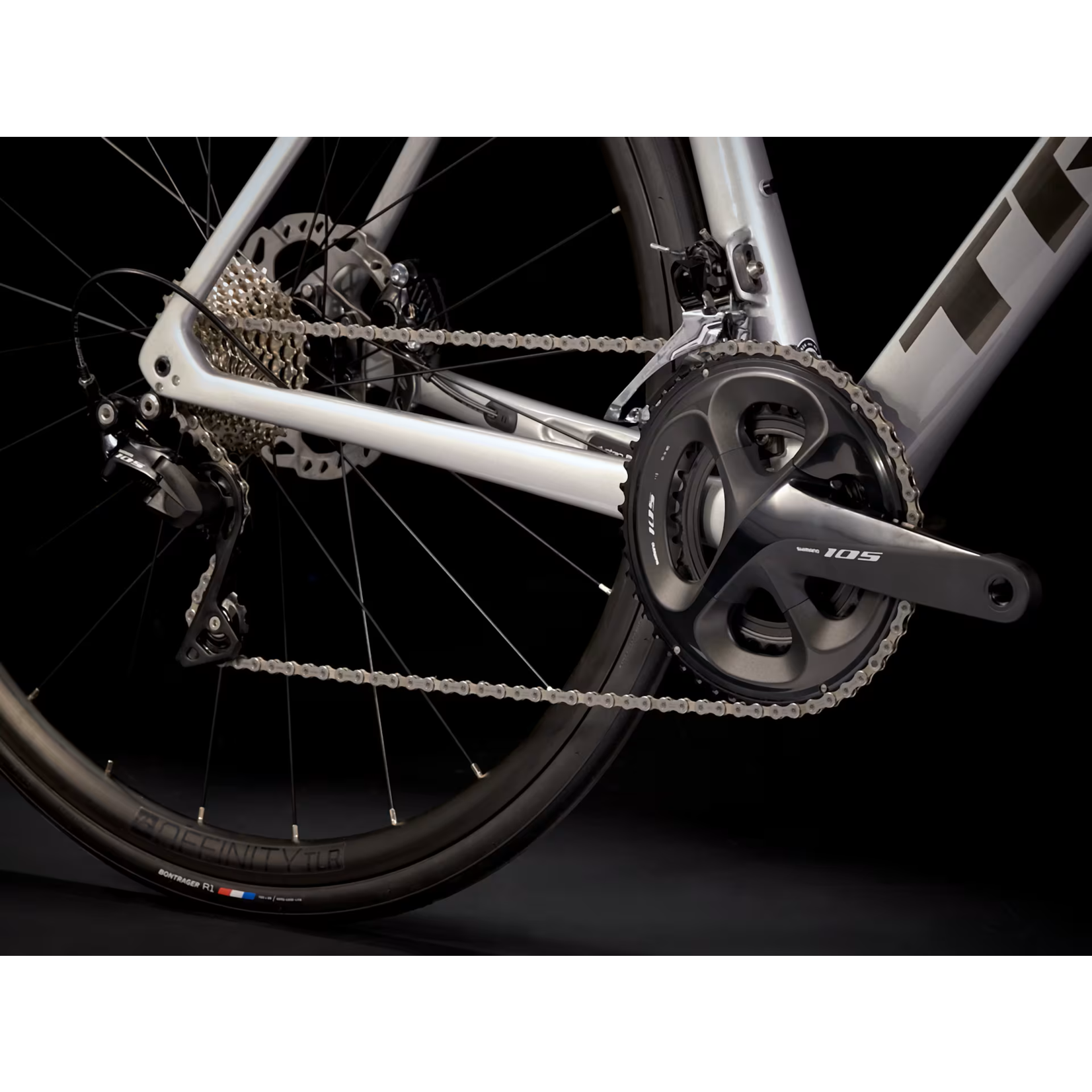

Drivetrain
*Shifter: Size: 47, 50, 52
Shimano 105 R7025, short-reach lever, 11 speed
Size: 54, 56, 58, 60, 62
Shimano 105 R7020, 11 speed
Front derailleur: Shimano 105 R7000, braze-on
Rear derailleur: Shimano 105 R7000, short cage, 30T max cog
*Crank: Size: 47
Shimano 105 R7000, 50/34 (compact), 165mm length
Size: 50, 52
Shimano 105 R7000, 50/34 (compact), 170mm length
Size: 54, 56, 58
Shimano 105 R7000, 50/34 (compact), 172.5mm length
Size: 60, 62
Shimano 105 R7000, 50/34 (compact), 175mm length
Bottom bracket: Praxis, T47 threaded, internal bearing
Cassette: Shimano 105 R7000, 11-30, 11 speed
Chain: Shimano 105 HG601, 11 speed
Max chainring size: 1x: 50T, 2x: 53/39

Wheels
Wheel front: Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples
Wheel rear: Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples
Hub front: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front: Bontrager Switch thru axle, removable lever
Hub rear: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
*Rim: Size: 47, 50, 52, 54, 56, 58, 60, 62
Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, Presta valve
Size: 47, 50, 52, 54, 56, 58, 60, 62
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes: 14g stainless steel, black
Tire: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Max tire size: 28mm

Components
*Saddle: Size: 47, 50, 52
Bontrager Verse Comp, steel rails, 155mm width
Size: 54, 56, 58, 60, 62
Bontrager Verse Comp, steel rails, 145mm width

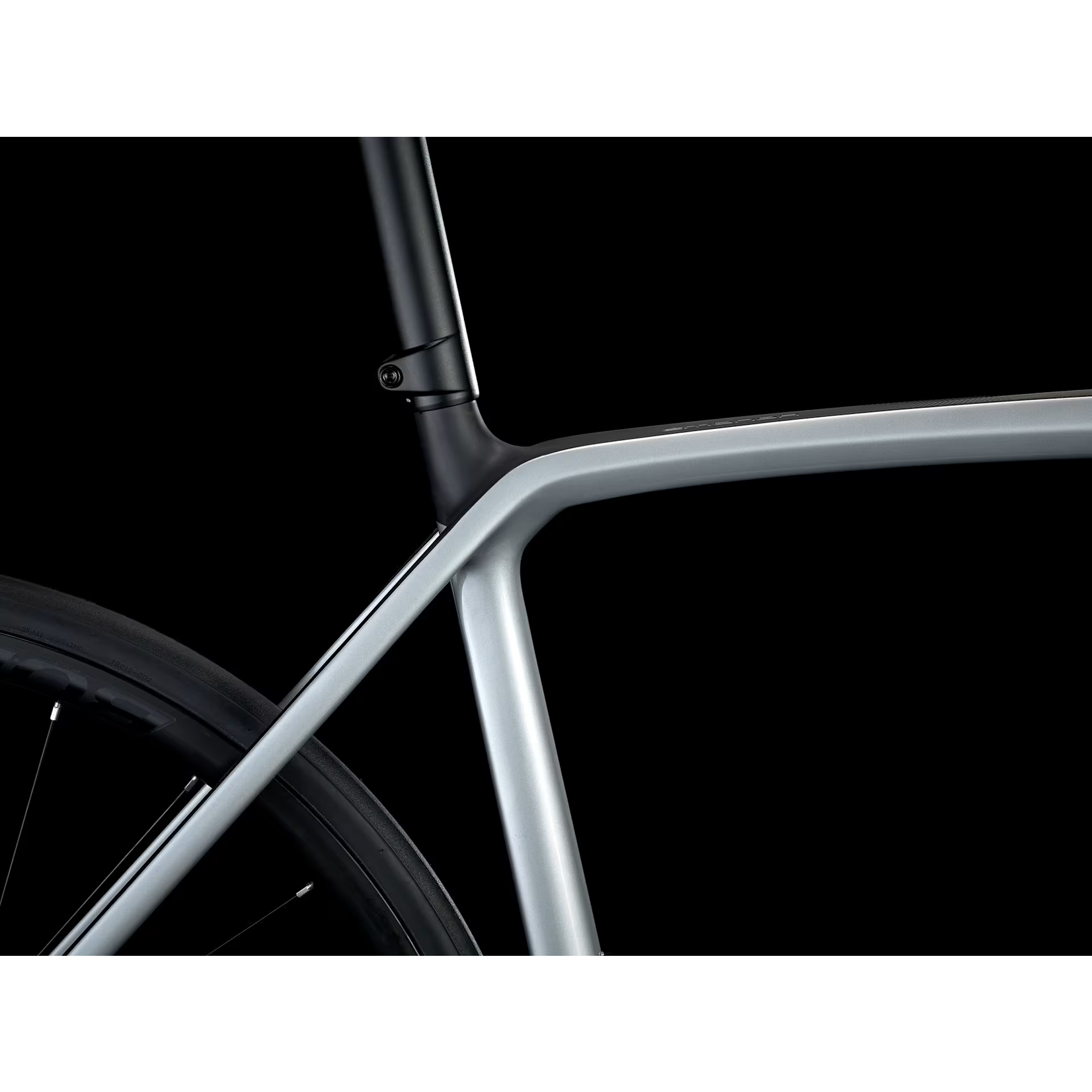

*Seatpost: Size: 47, 50, 52, 54
Bontrager alloy seatmast cap, 10mm offset, short length
Size: 56, 58, 60, 62
Bontrager alloy seatmast cap, 10mm offset, tall length

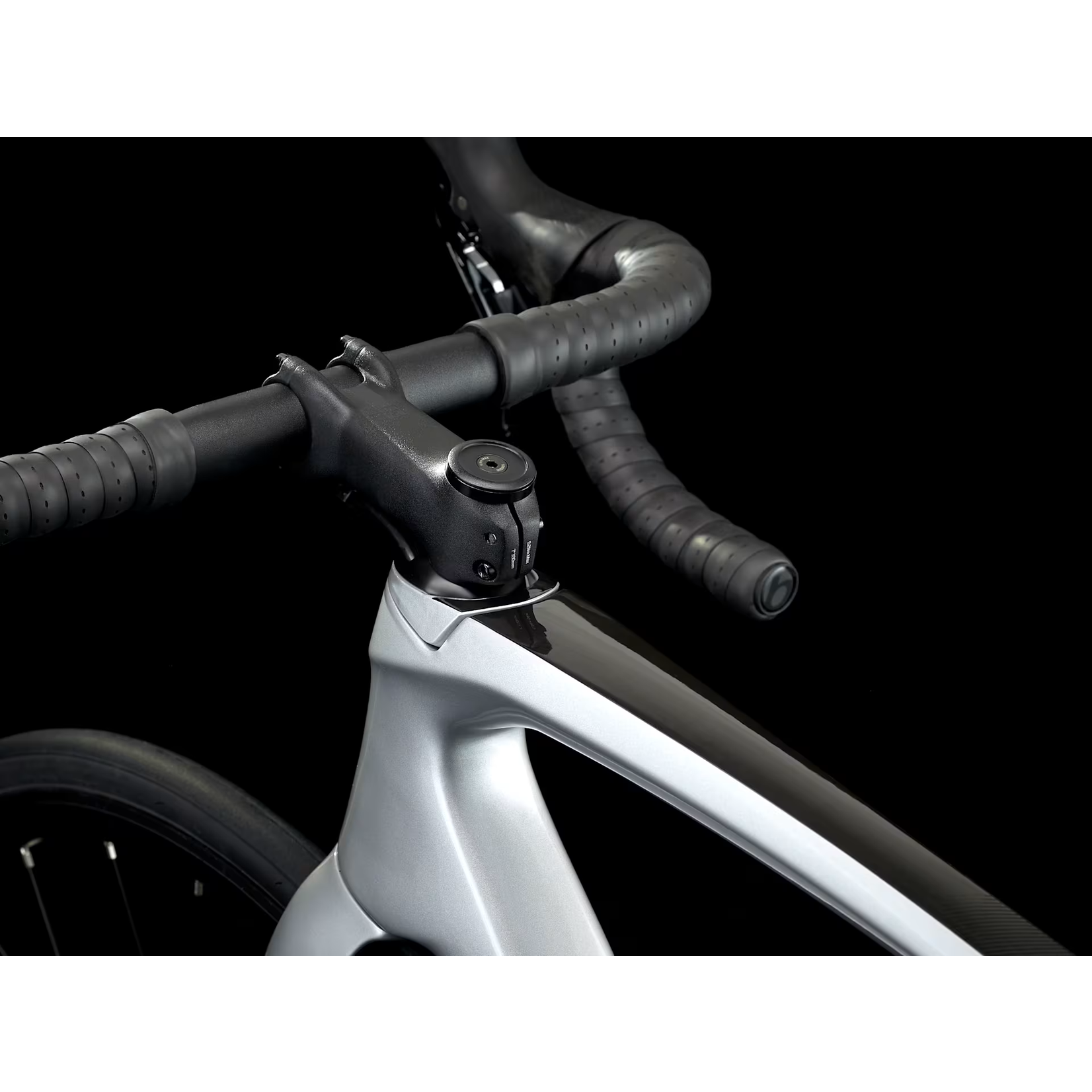

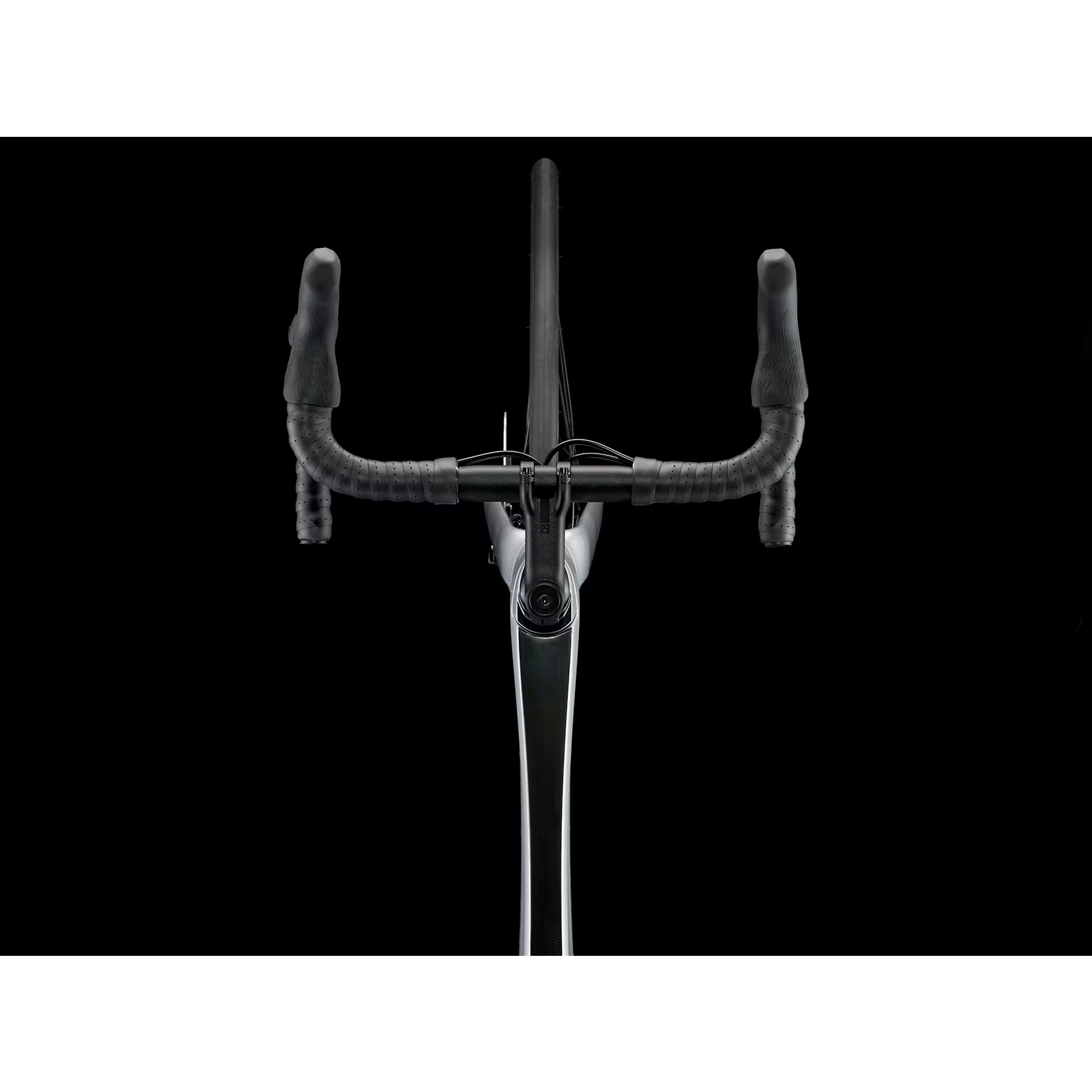

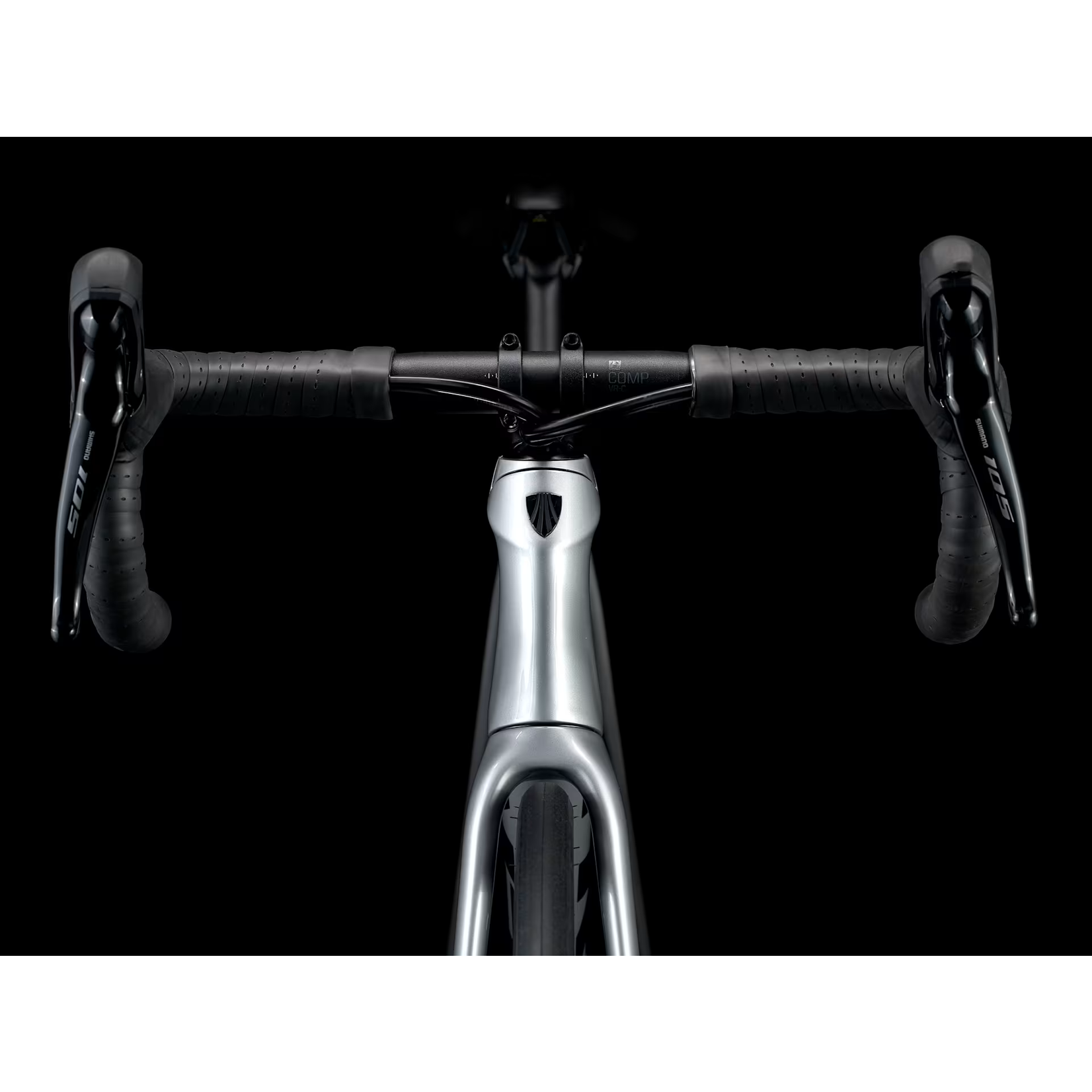

*Handlebar: Size: 47, 50
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 38cm width
Size: 52
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width
Size: 54, 56, 58
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
Size: 60, 62
Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Handlebar tape: Bontrager Supertack Perf tape
*Stem: Size: 47

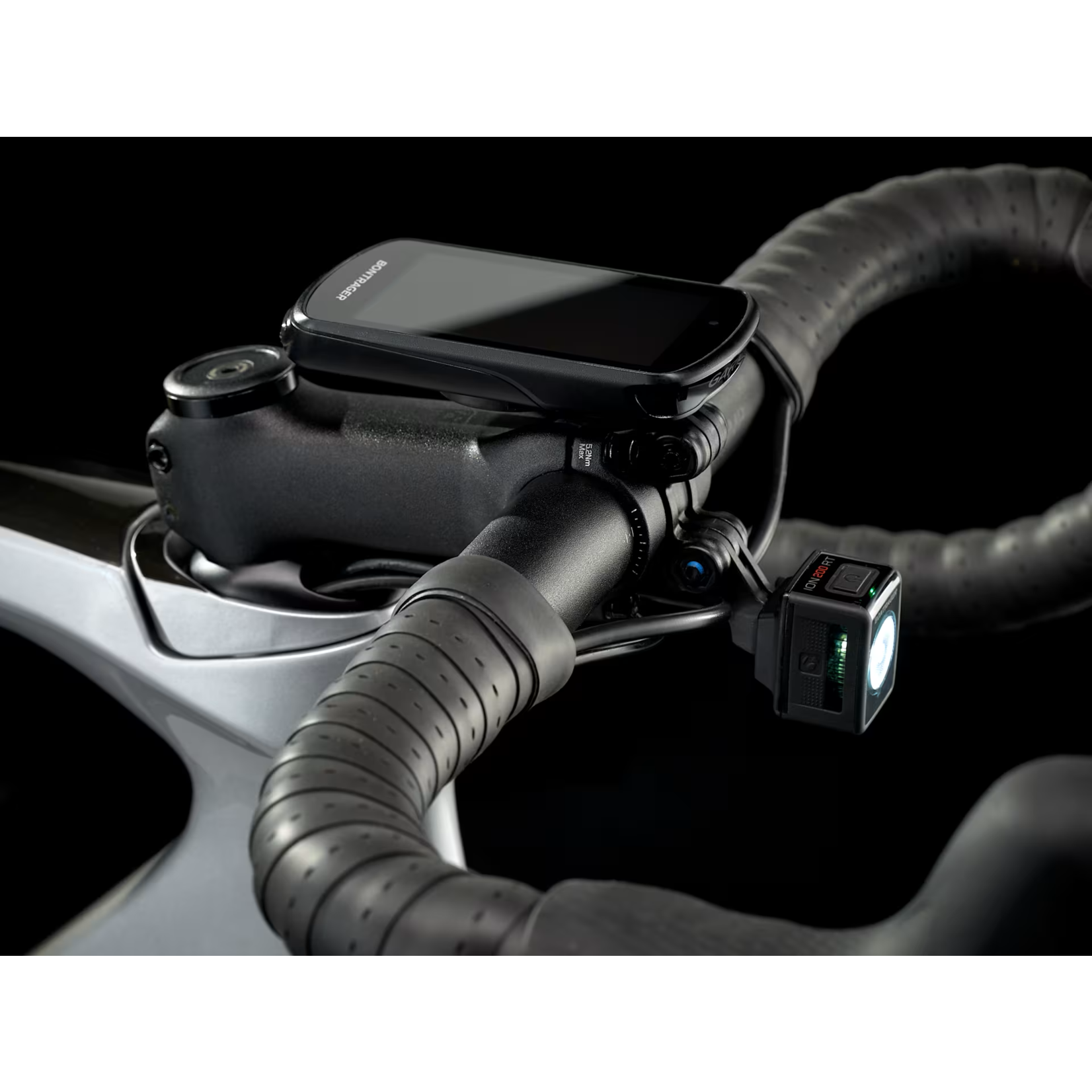

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: 50
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 56
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: 58, 60, 62
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

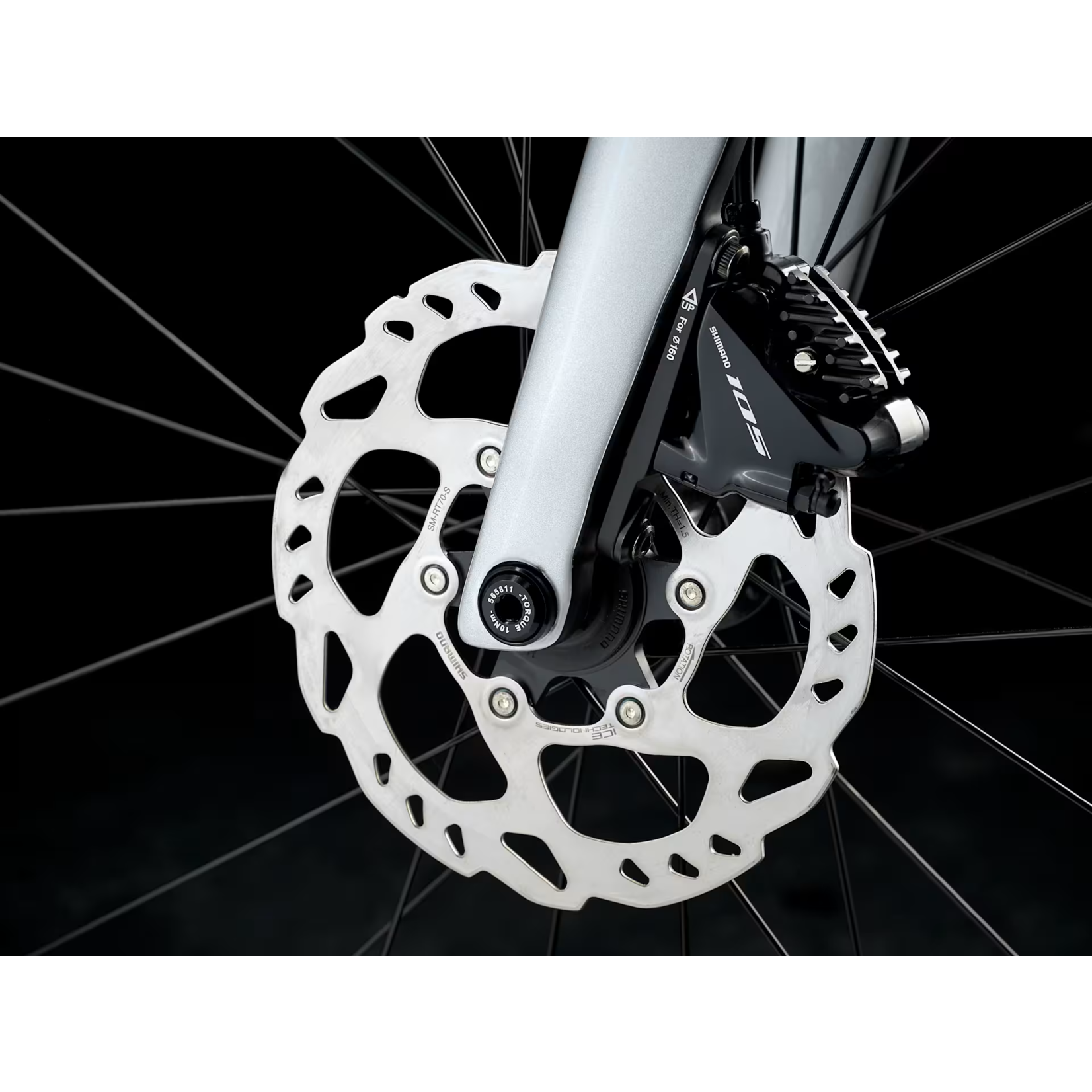

Brake: Shimano 105 hydraulic disc, flat mount
Brake rotor: Shimano RT70, centerlock, 160mm
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
