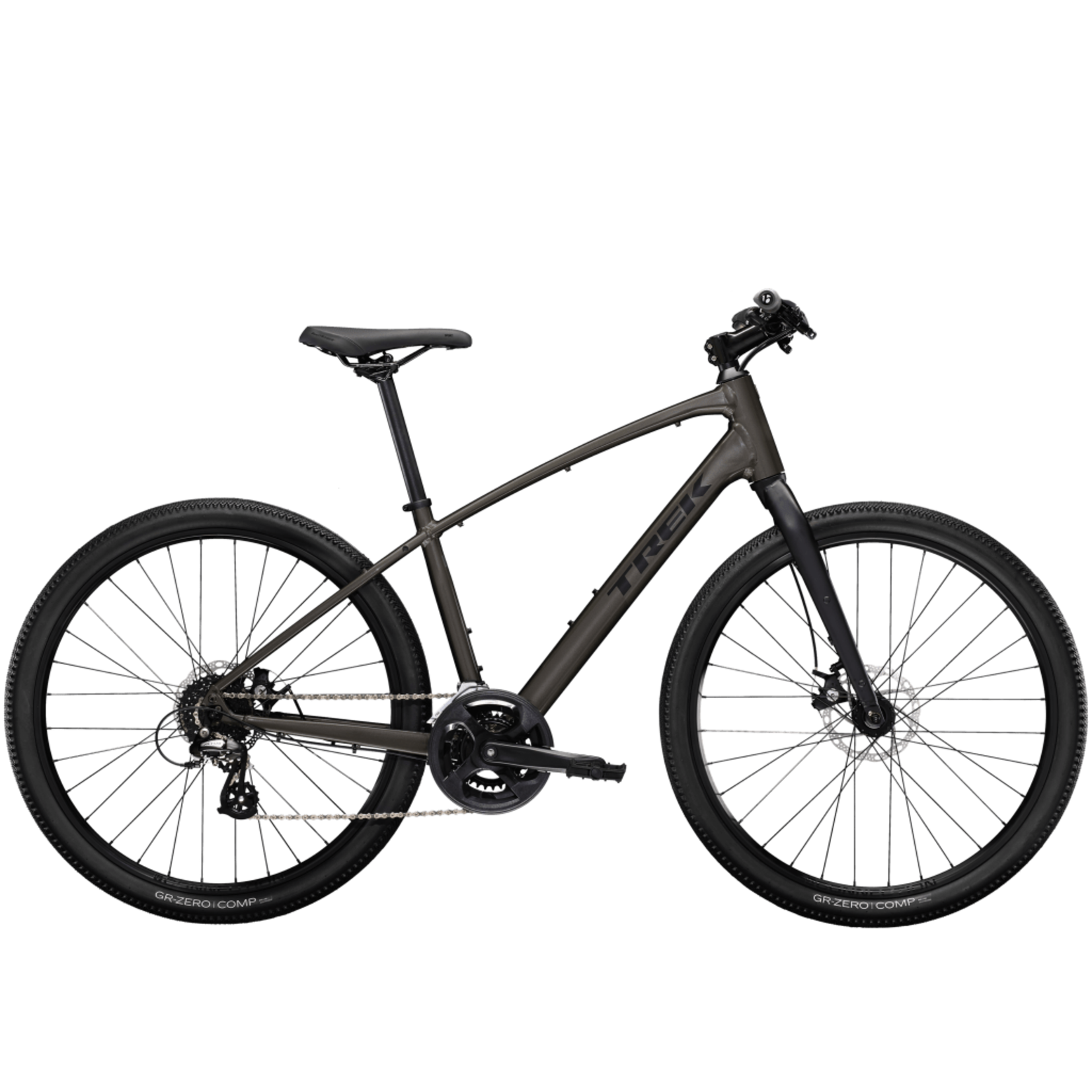

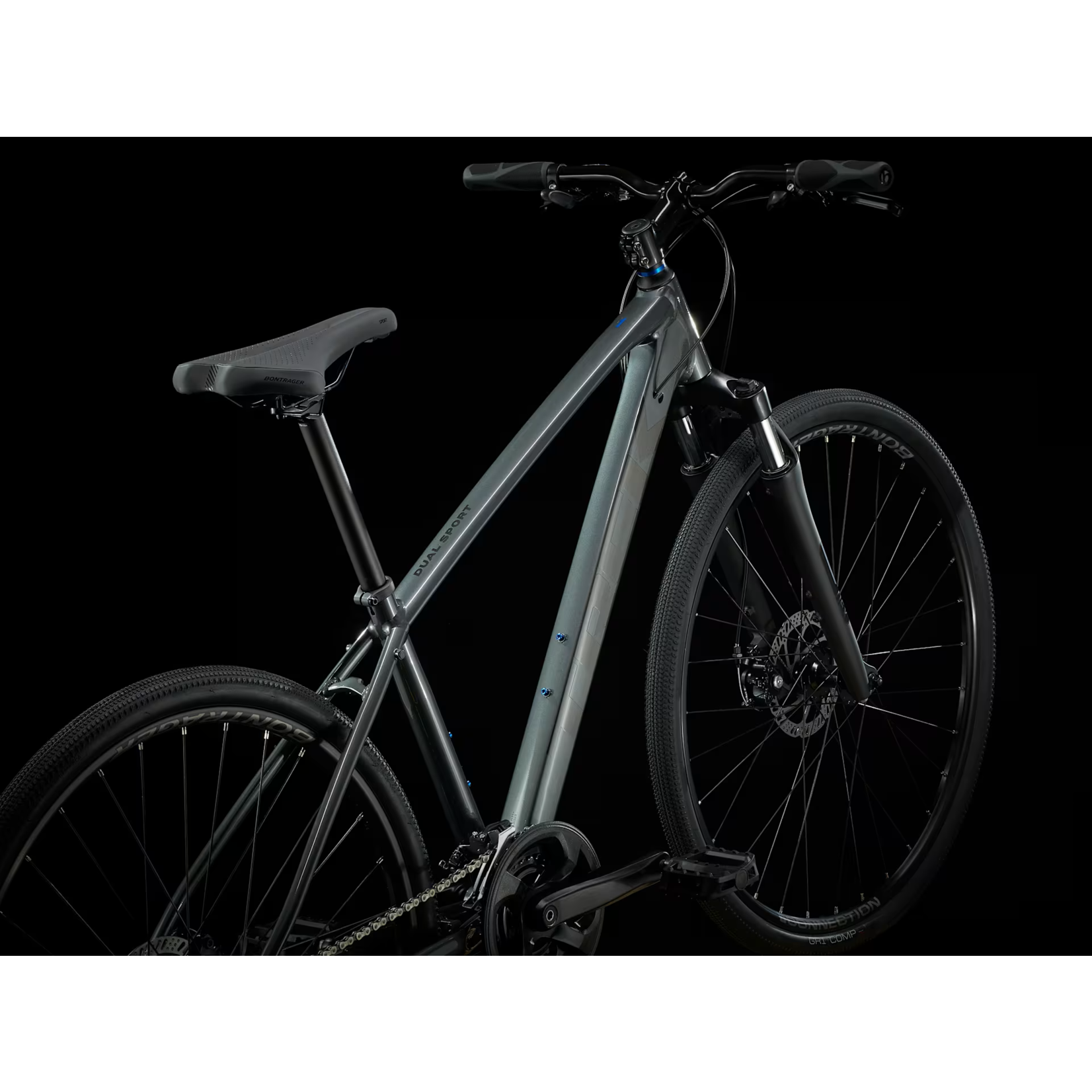

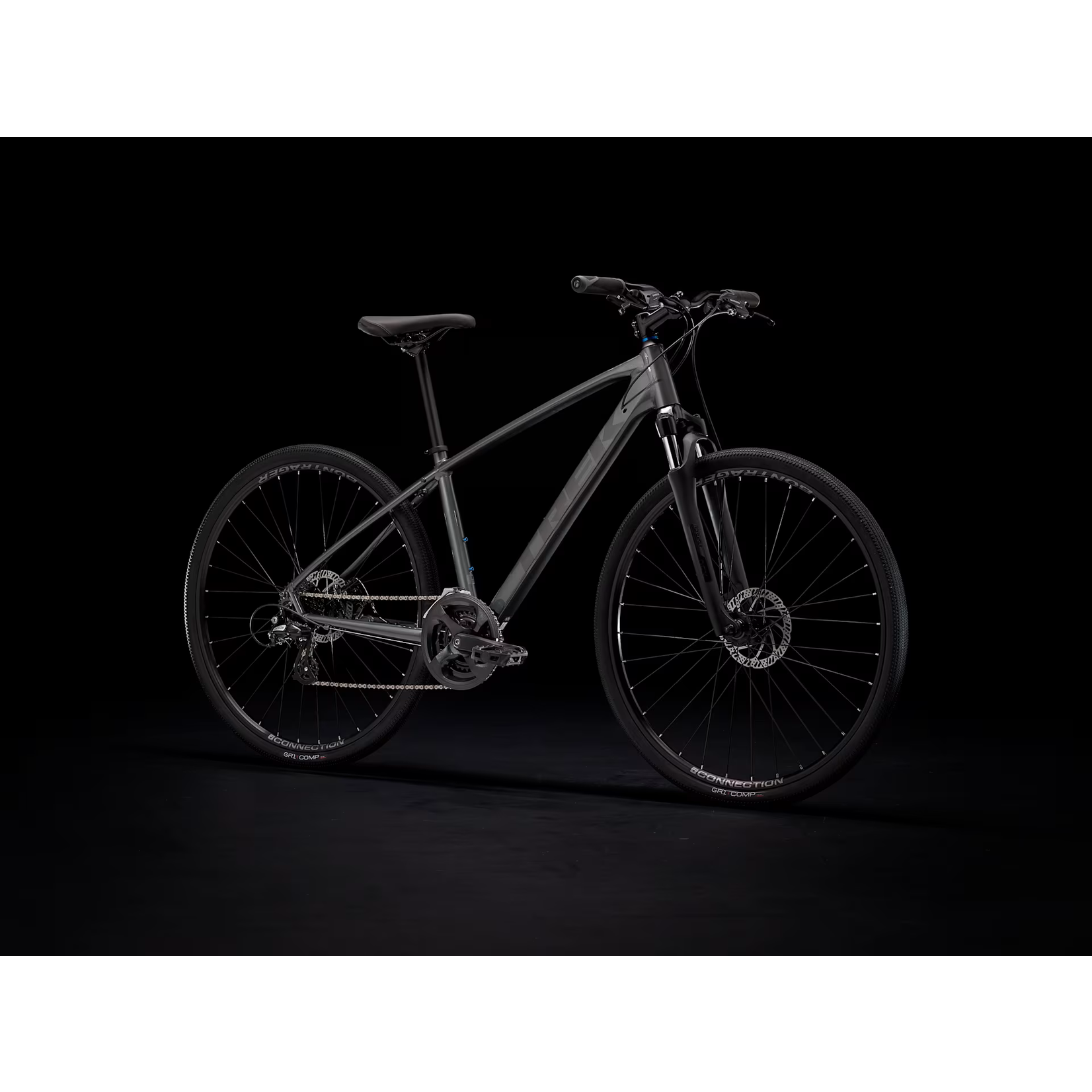

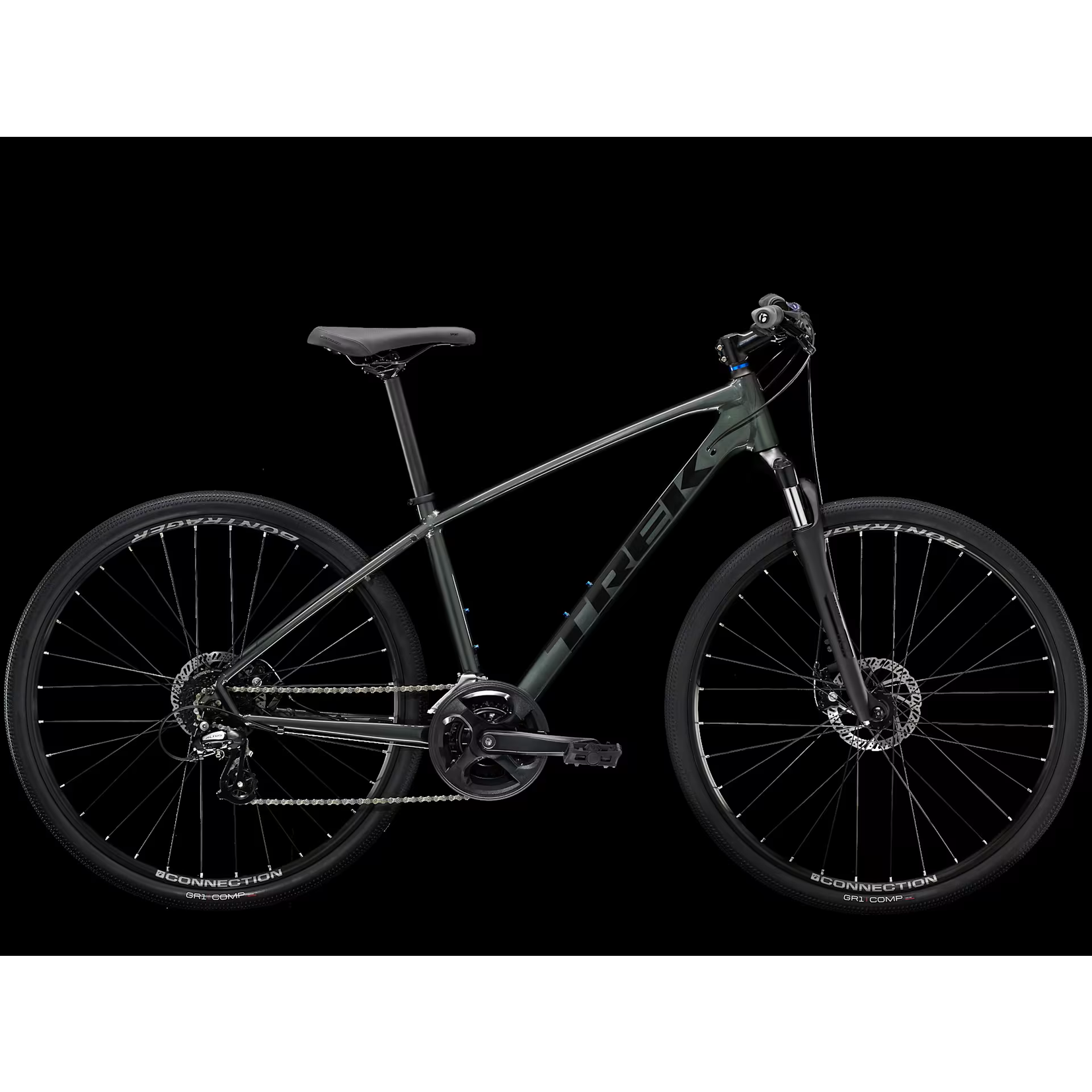

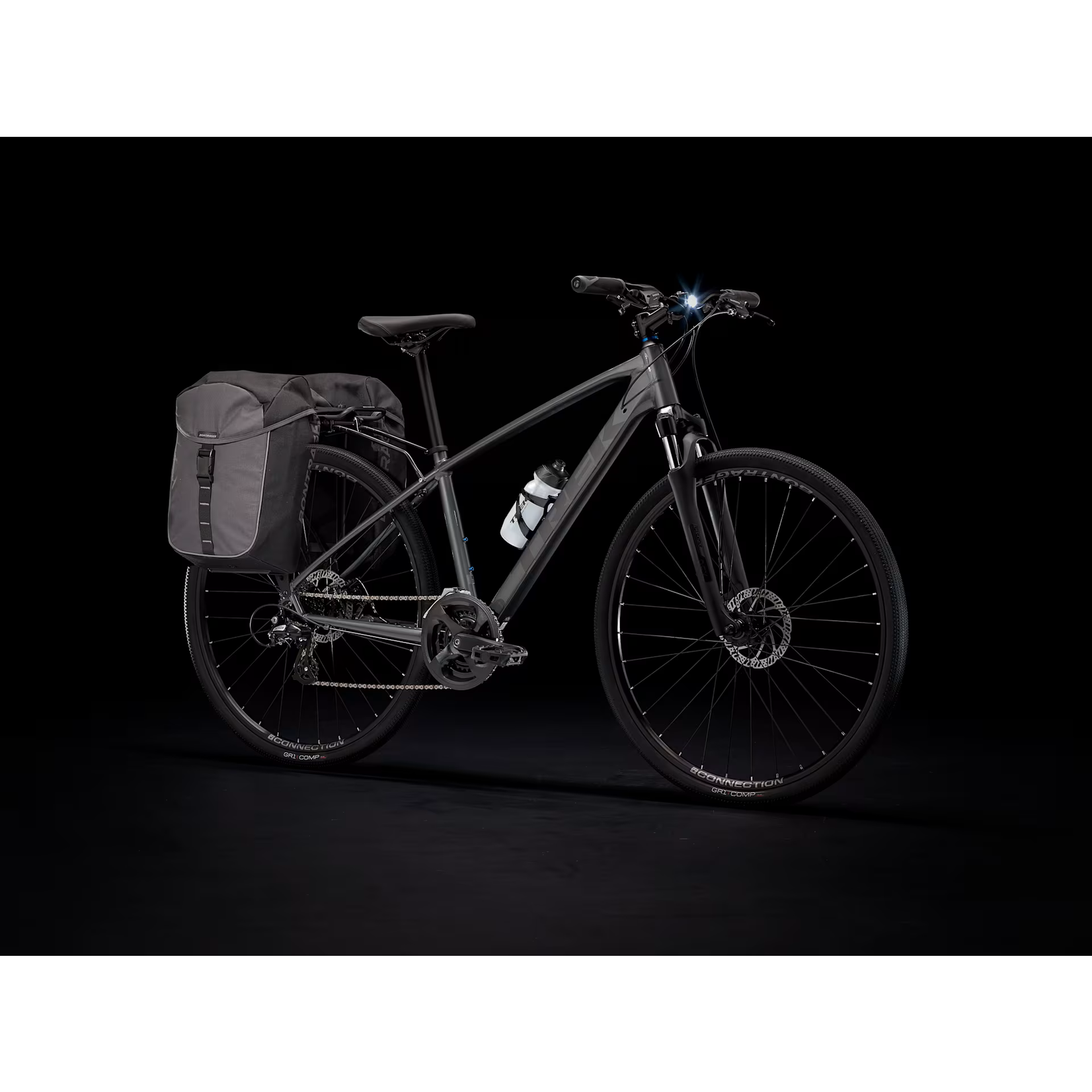

Dual Sport 1 is a hybrid bike in the true sense of the term: it excels on a variety of surfaces, and can take you from smooth pavement to light off-road trails in a single ride. A reliable frame, suspension fork, and all-terrain tires give Dual Sport 1 an incredible amount of capability on recreational fitness rides.

Specification

*Please note - spec applies to all sizes unless listed separately

Frameset
*Frame: Size: S

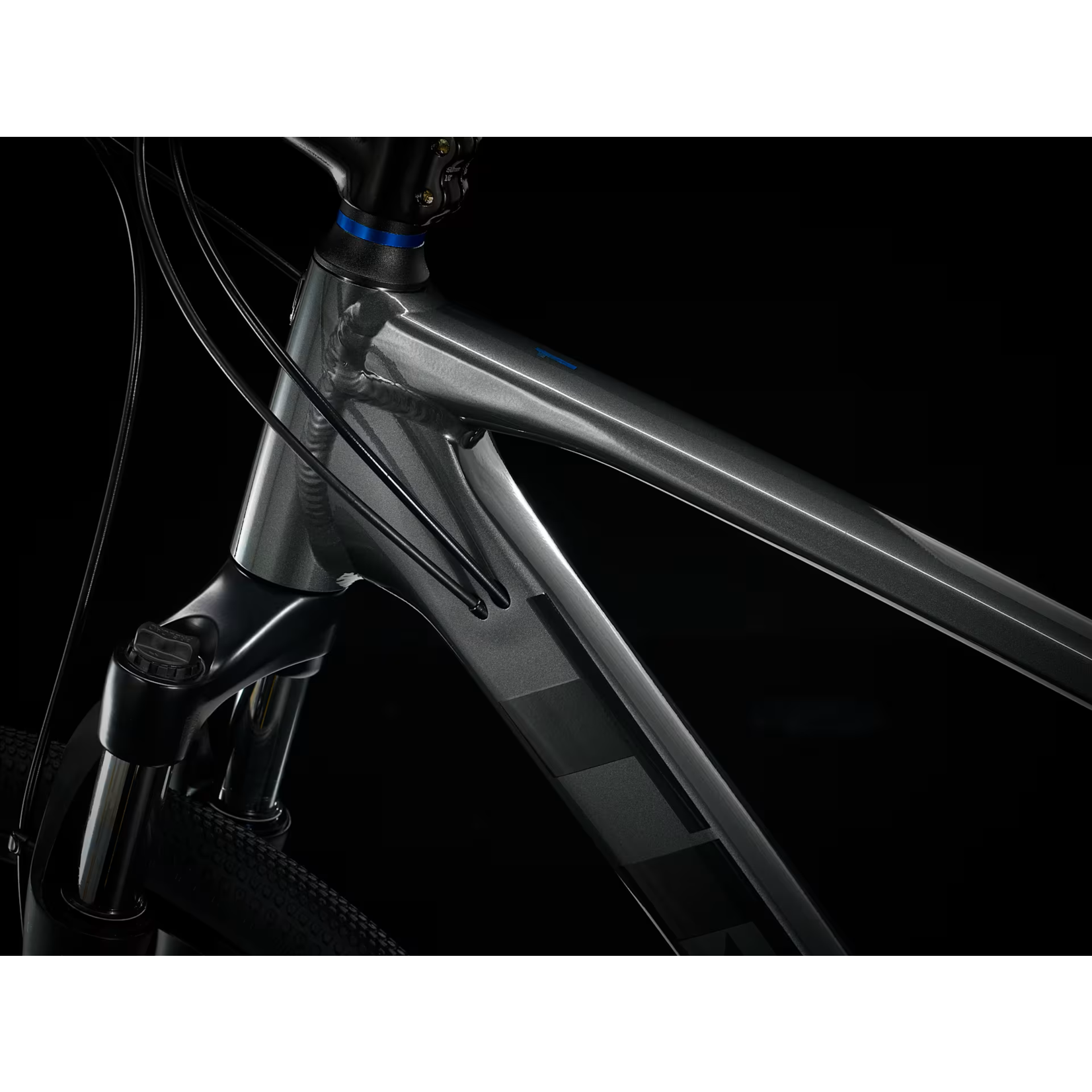

Alpha Gold Aluminum, curved top tube, DuoTrap S compatible, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Size: M, L, XL
Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR
Fork: SR Suntour NEX, coil spring, preload, 100x5mm QR, 63mm travel

Wheels
Hub front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Skewer rear: 152x5mm QR

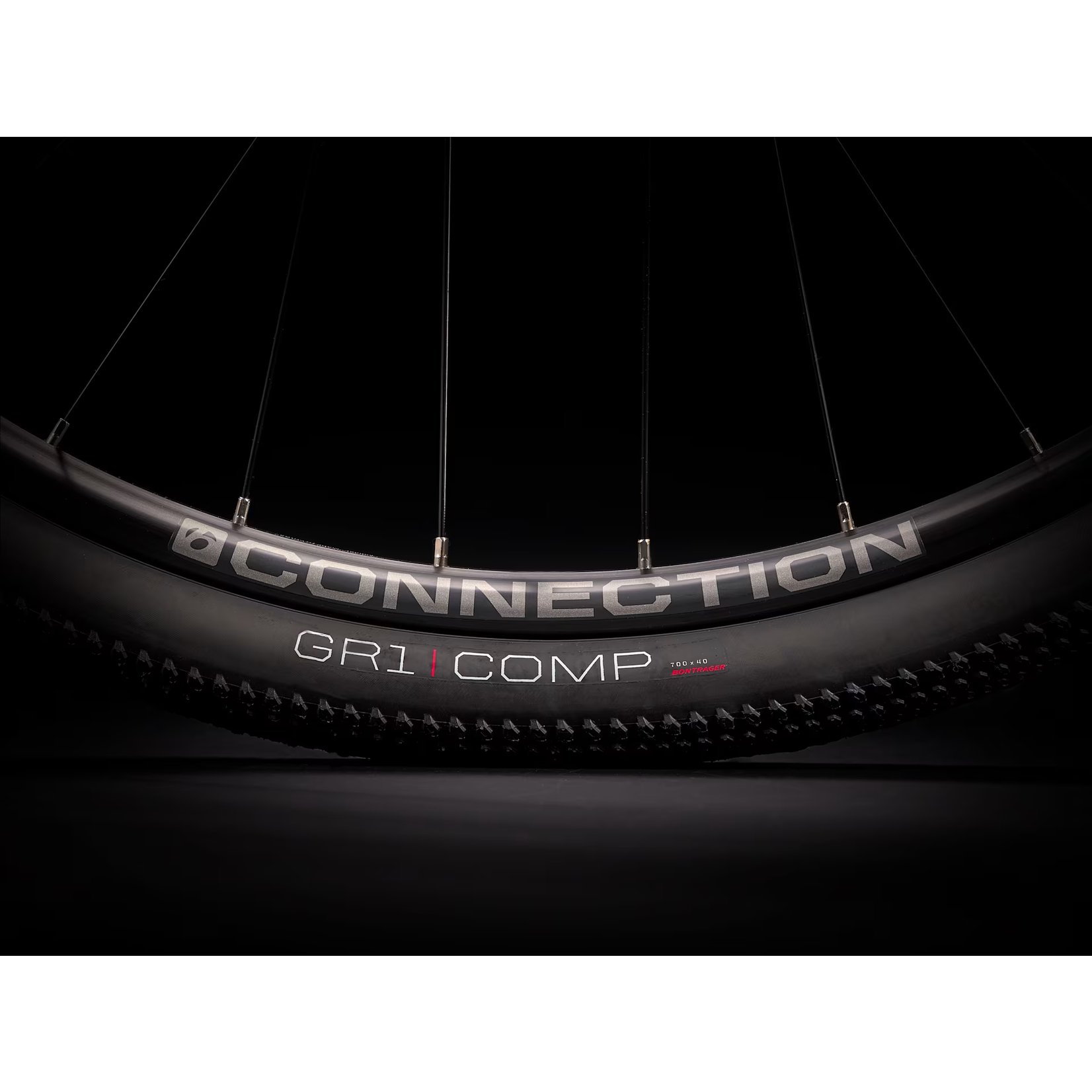

Rim: Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
Spokes: 14g stainless steel, black
Tire: Bontrager GR1 Comp, wire bead, 60 tpi, 700x40mm
Max tire size: Frame: 700x45mm with fenders, 29x2.10" without fenders, Fork: See manufacturer

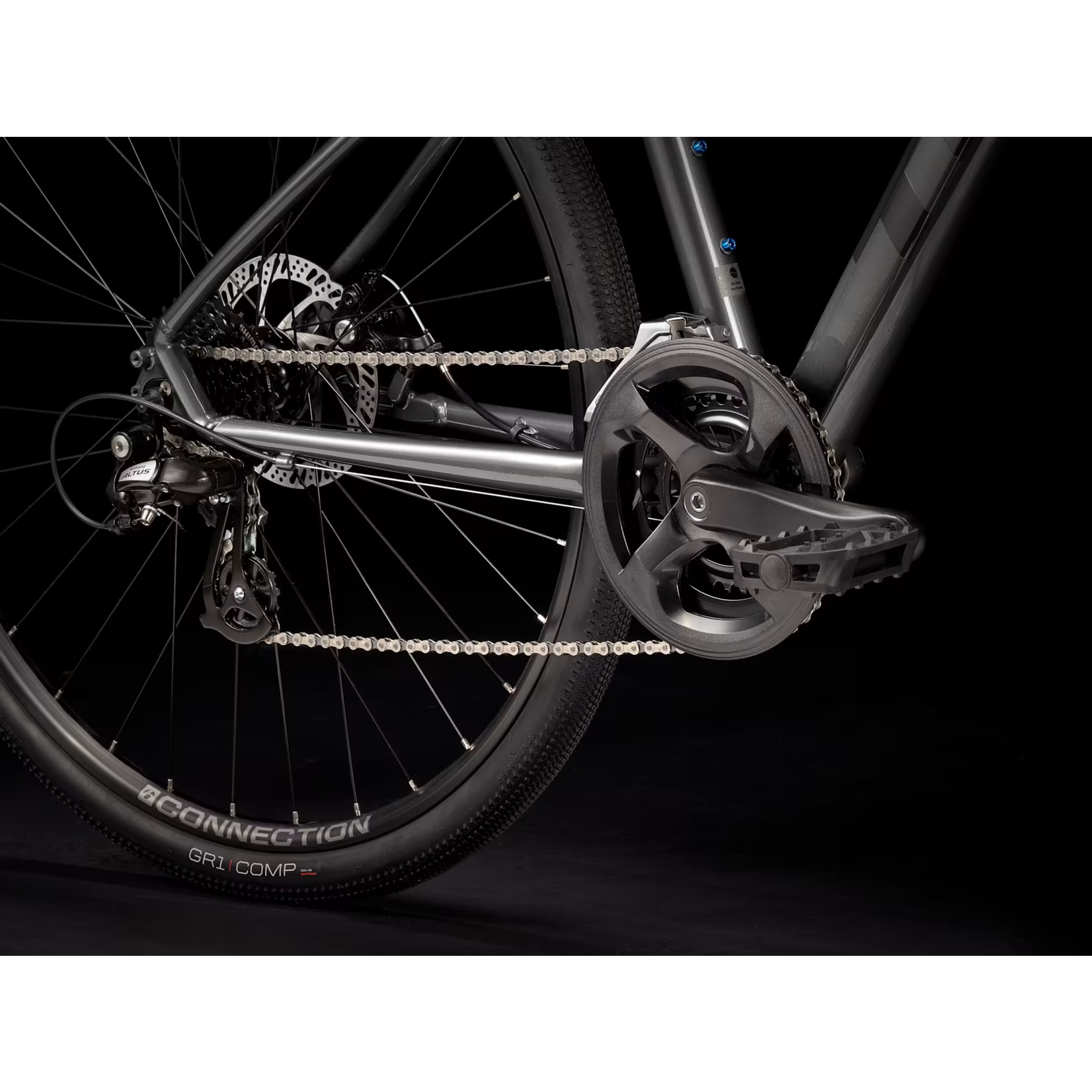

Drivetrain
Shifter: Shimano EF500, 8 speed
Front derailleur: Shimano Tourney TY710, 34.9mm clamp, top swing, dual pull
Rear derailleur: Shimano Altus M310
Crank: Forged alloy, 46/30, chainguard, 170mm length
Bottom bracket: Sealed cartridge, 68mm
Cassette: Shimano HG31, 11-32, 8 speed
Chain: KMC Z8.3
Pedal: Wellgo nylon platform

Components

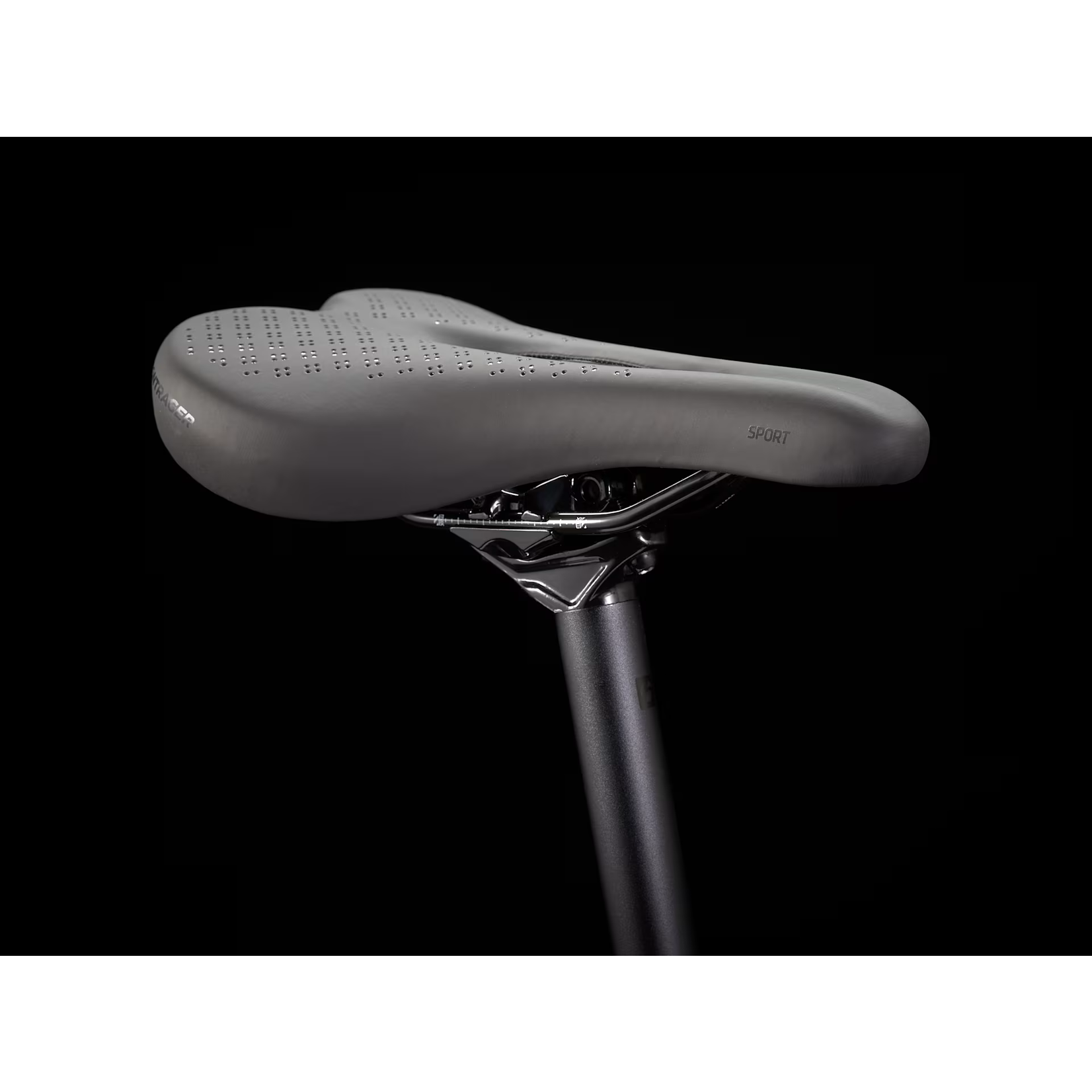

Saddle: Bontrager Sport
Seatpost: Bontrager alloy, 27.2mm, 12mm offset, 330mm length
*Handlebar: Size: S, M
Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width
Size: L, XL
Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width

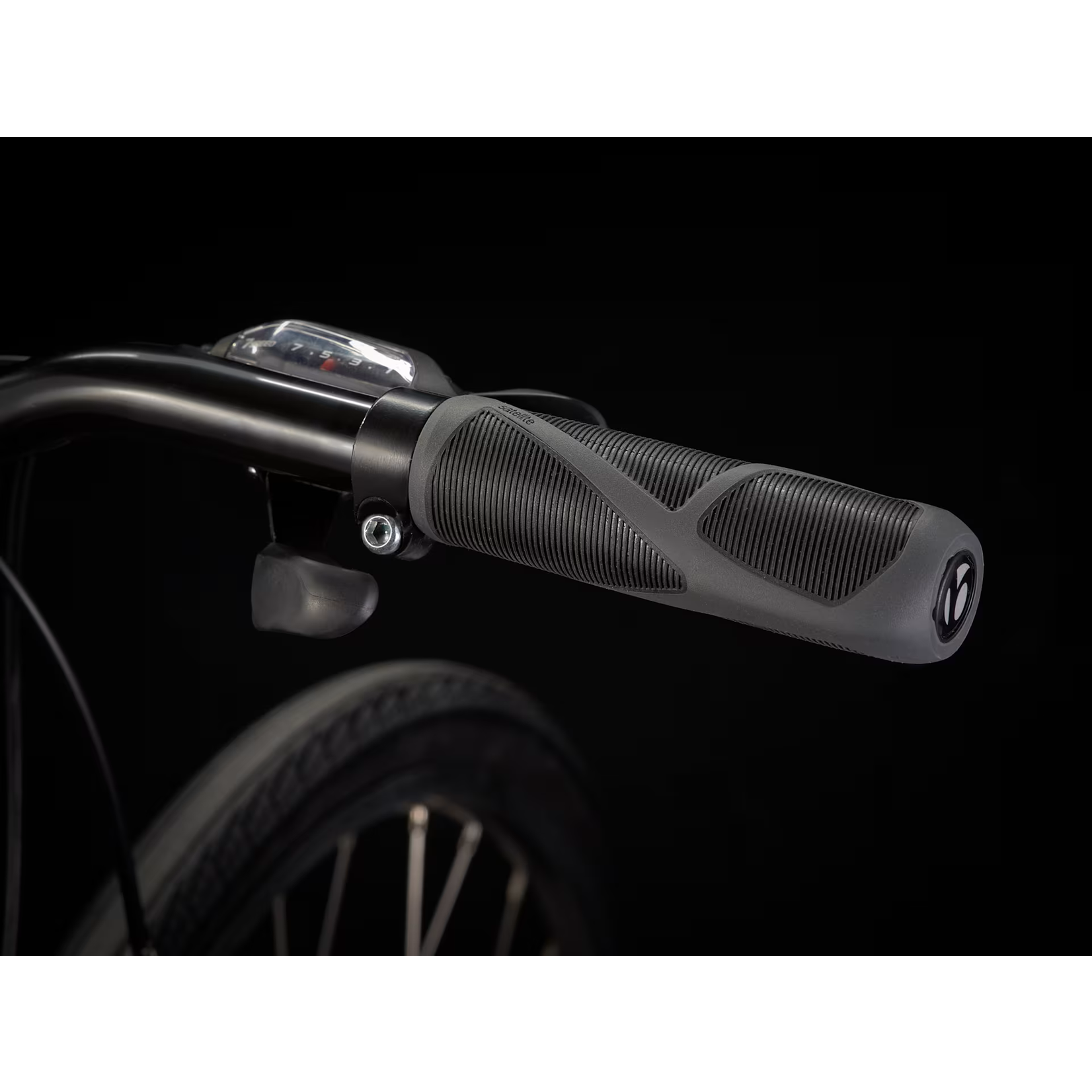

Grips: Bontrager Satellite
*Stem: Size: S, M
Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length
Size: L, XL
Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length
Headset: 1-1/8'' threadless, sealed cartridge bearings

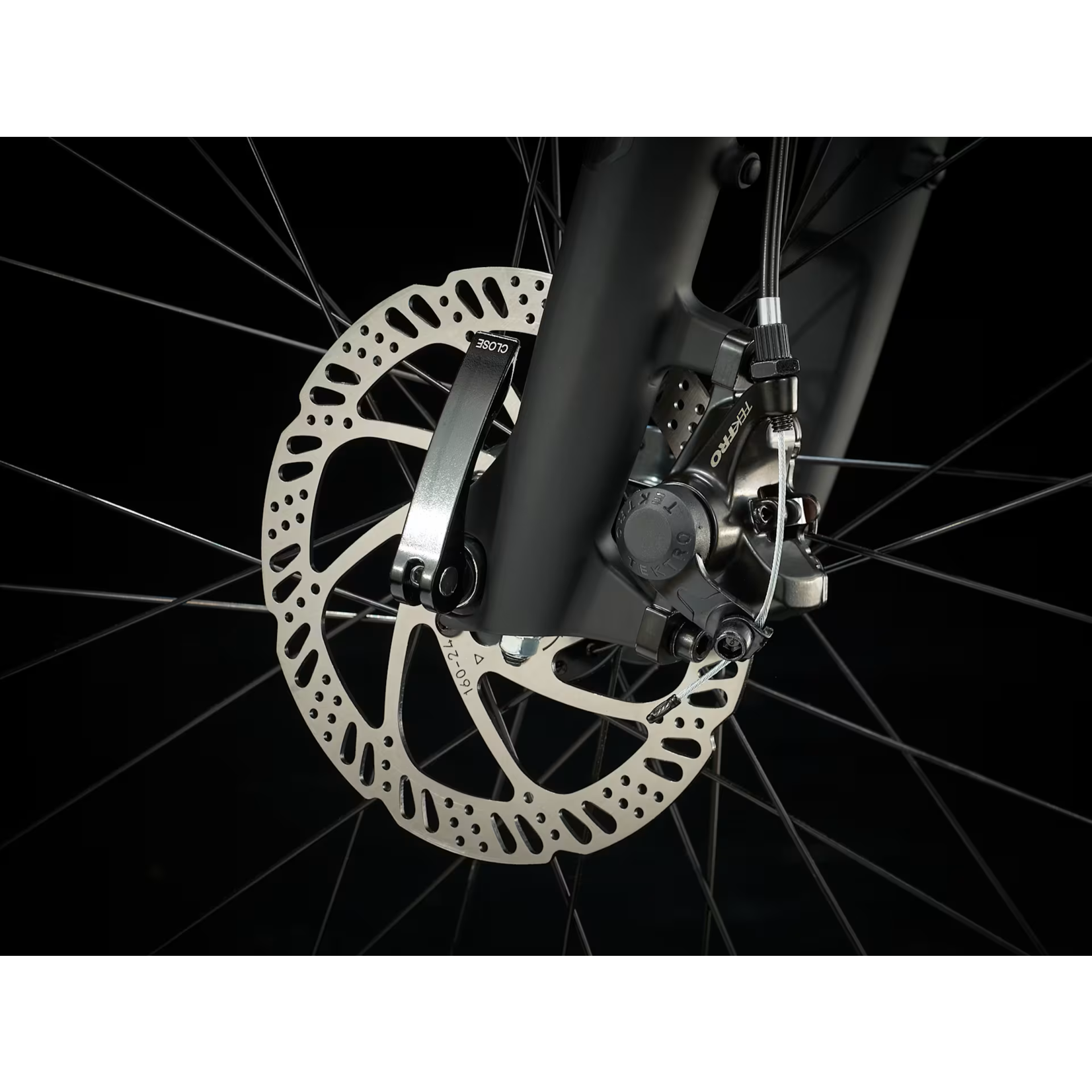

Brake: Tektro MD-M280 mechanical disc, 160mm rotor

Weight
Weight: M - 13.54 kg / 29.86 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. Prices shown are manufacturer's suggested retail prices.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
