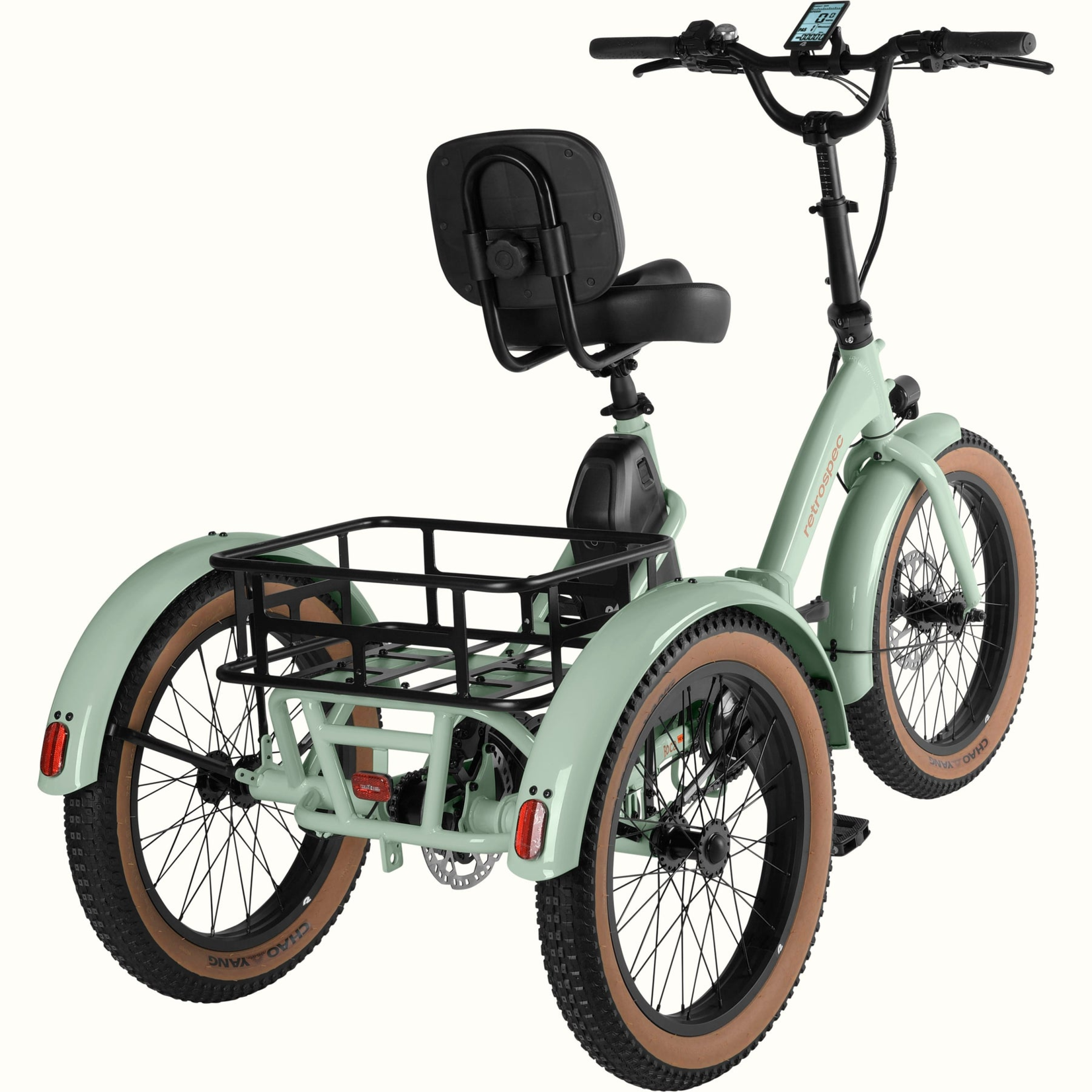

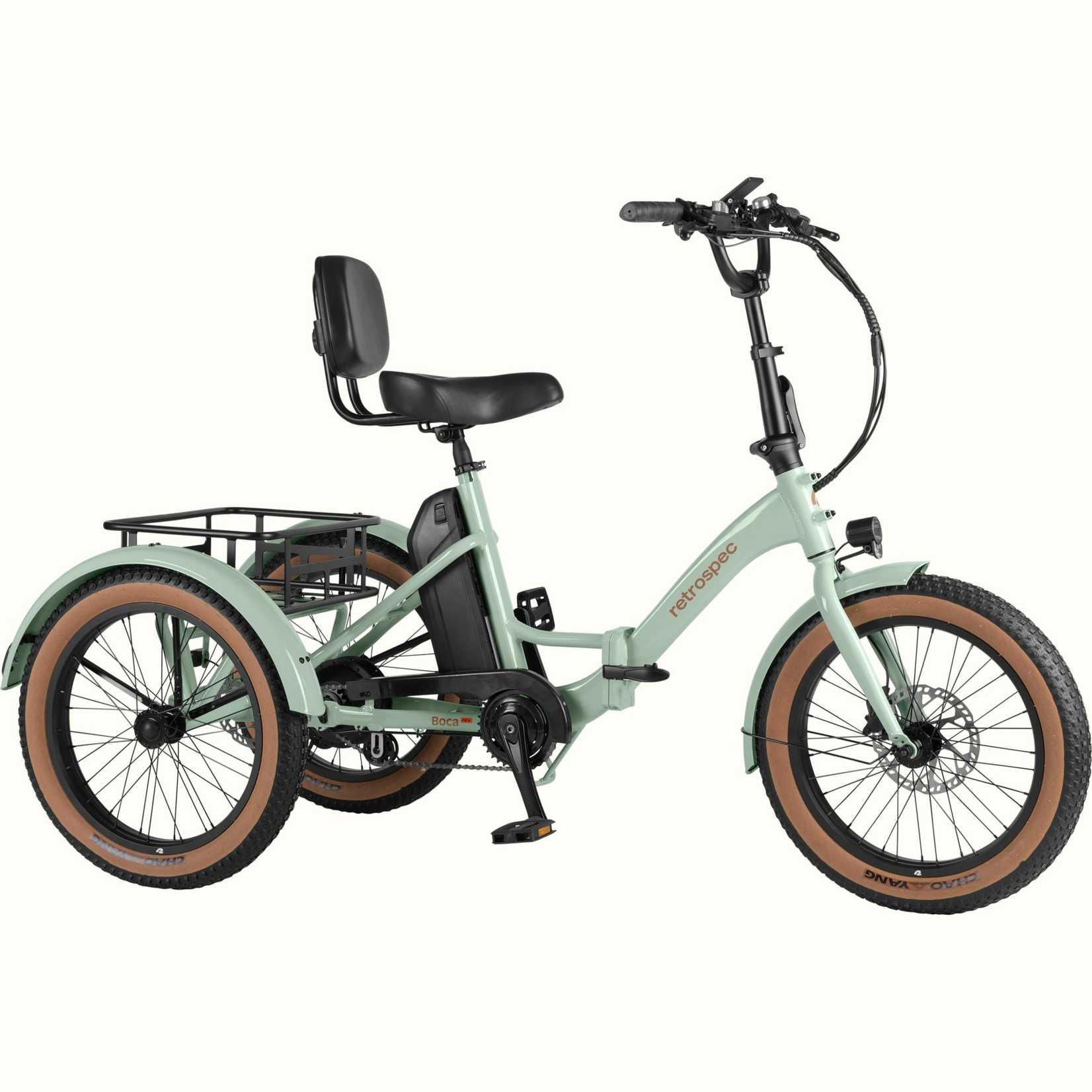

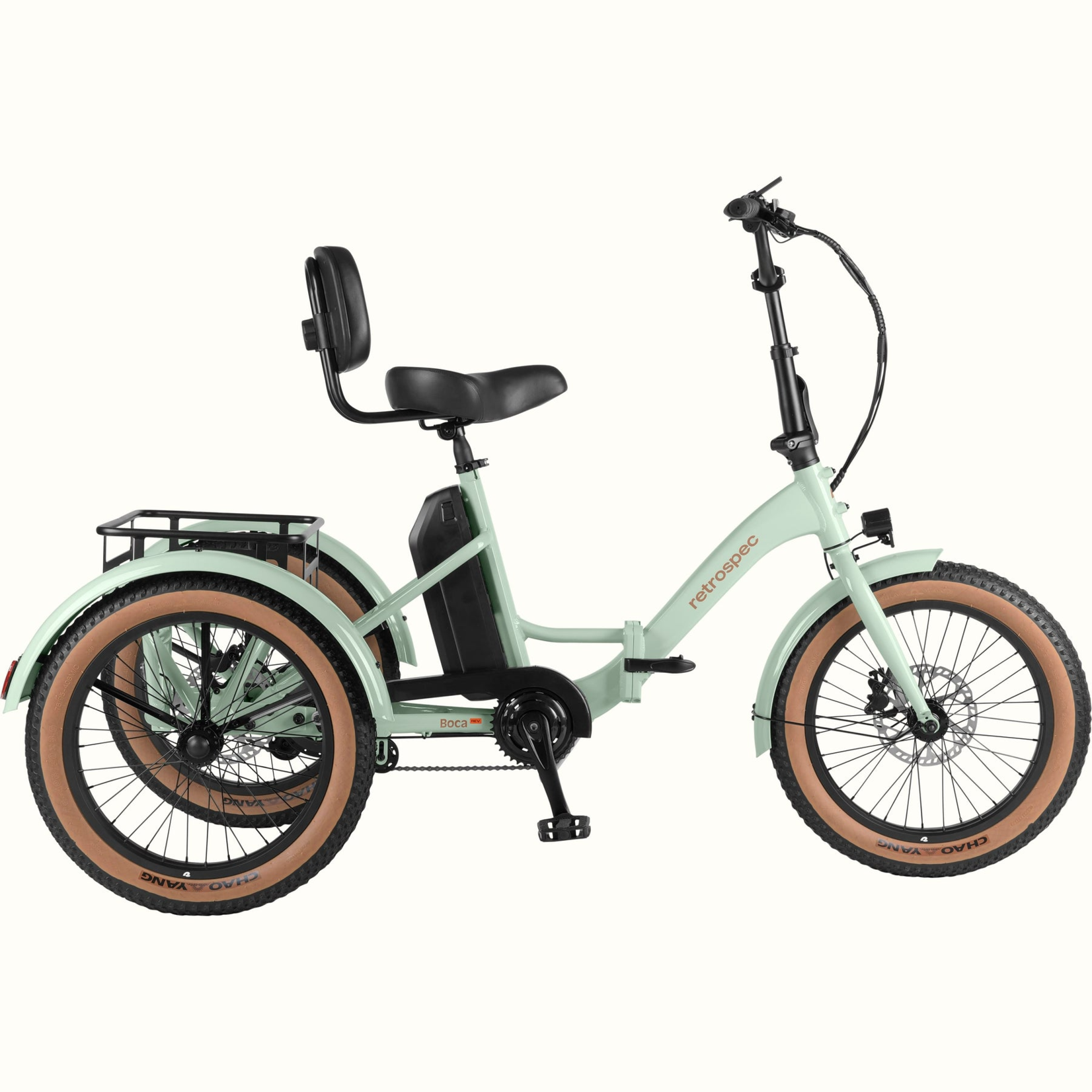

Three wheels, endless electric adventures

If two heads are better than one, then three wheels are definitely better than two. This electric trike is the ultimate three-wheeled machine: it’s got a powerful 500W motor with rear-wheel drive for better traction, hydraulic disc brakes for stopping with precision, parking brake for hanging back to load up, and a high-volume cargo basket to haul everything you want to bring along for the ride. Enjoy seemingly endless cruising under the sun with this e-trike’s high range of up to 49 miles per charge, and stay comfortable the whole time thanks to a Super Comfort seat with supportive backrest, wide tires for bump-free riding, and Pedal Assist with cadence sensor for smooth speed boosts. Just one ride on Boca Rev and you’ll agree – the third wheel’s the charm.

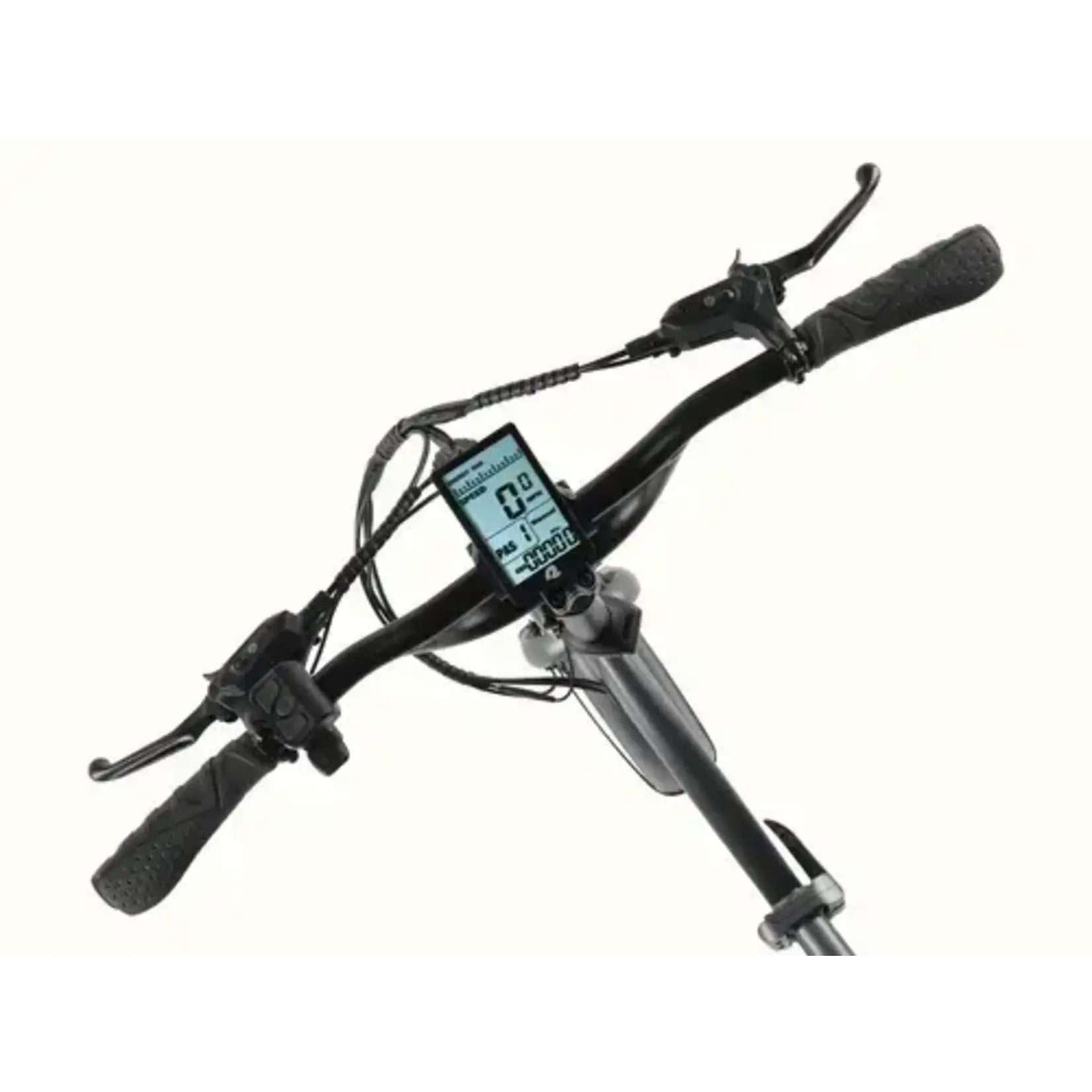

Easy Access to Controls

The handlebar-mounted button pod controls everything, from the throttle, to the lights, to walk mode, pedal assistance, and more – all right at your fingertips.

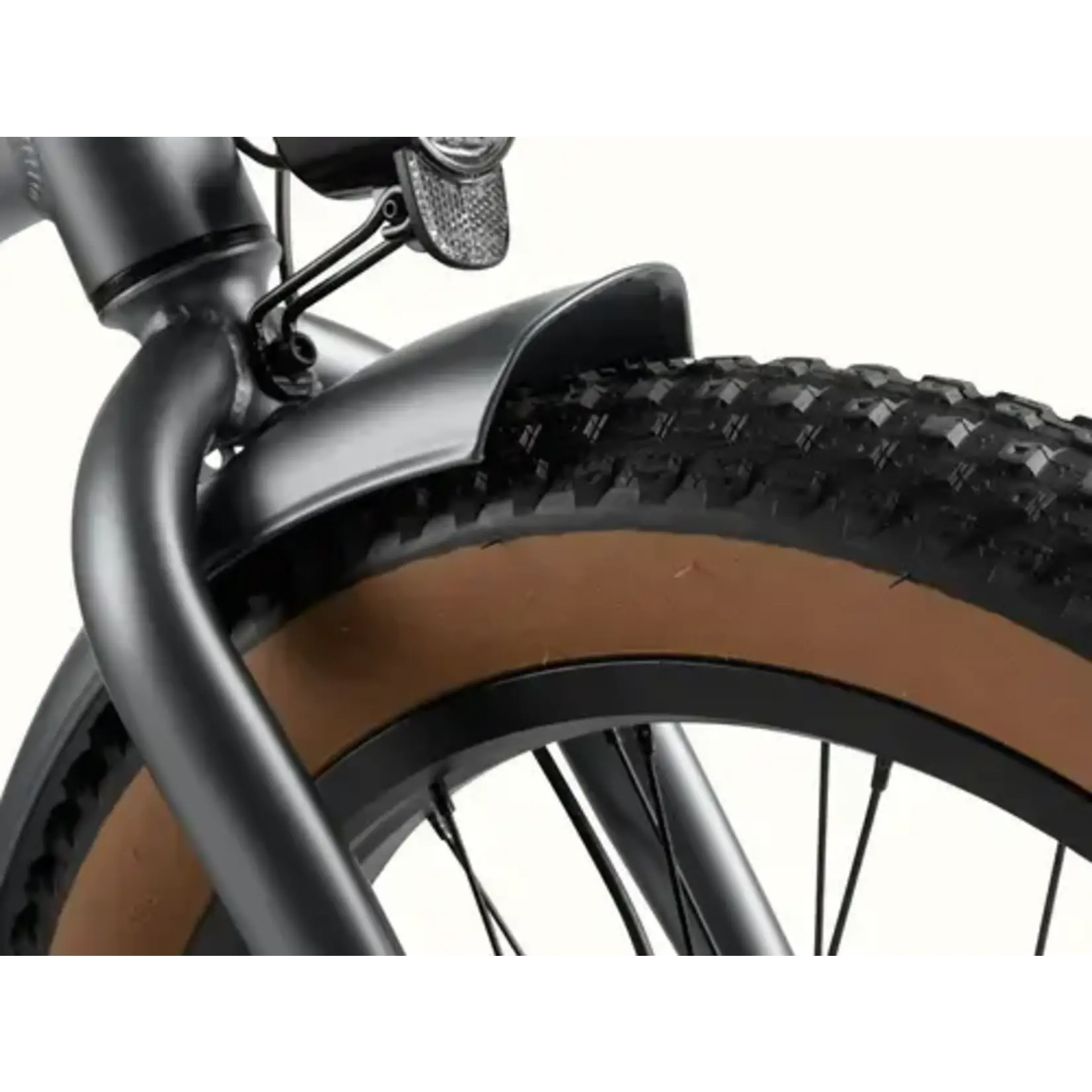

Better Traction, Smoother Riding

Rear wheel drive helps improve your trike’s traction, and 3” wide tires soak up bumps in the road for a smoother and more stable ride.

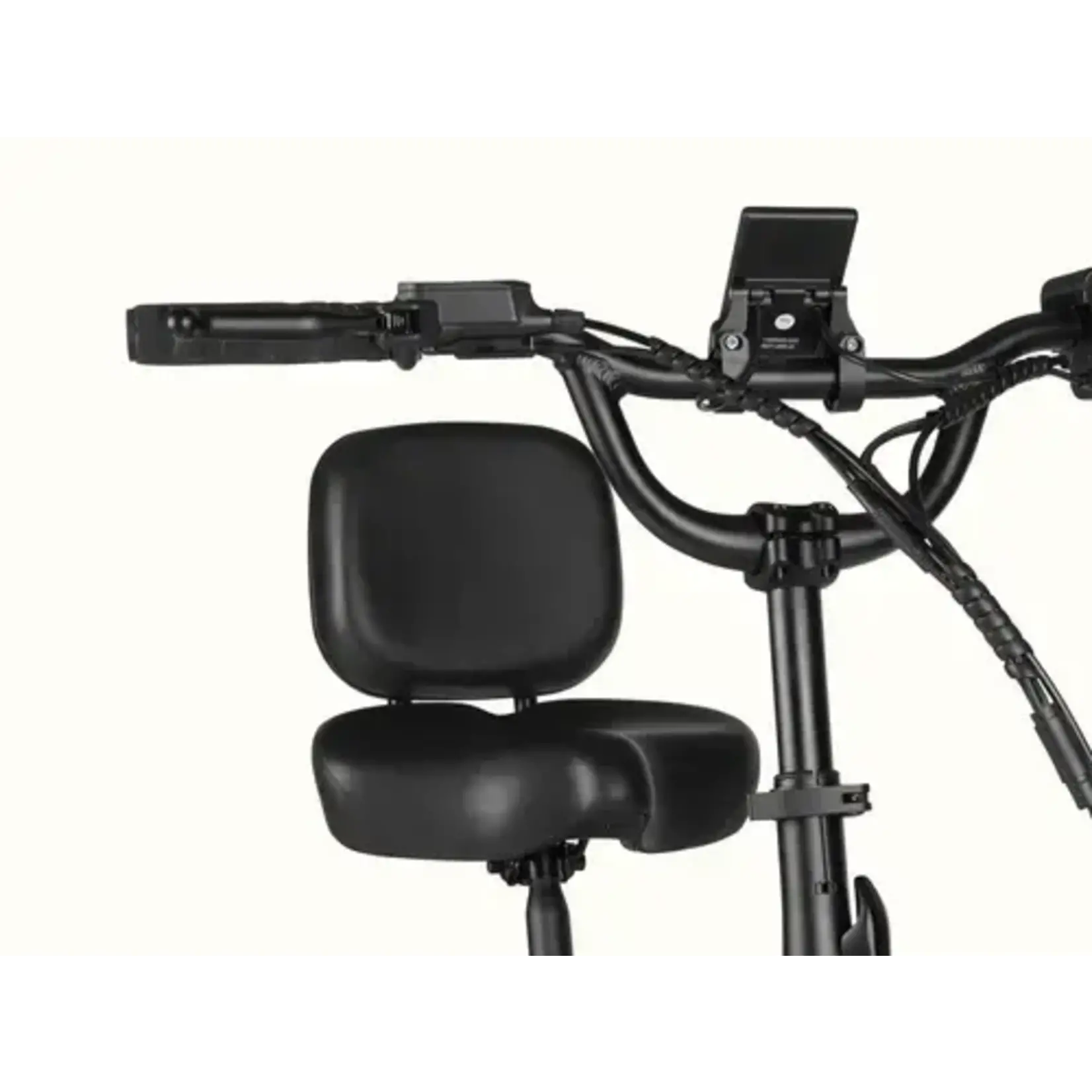

Comfort-First Design

This electric tricycle’s large Super Comfort seat is loaded with padding and even has a built-in backrest to keep you comfortable and supported on every ride.

Powerful Stopping & Parking Brake

Hydraulic disc brakes with 180mm rotors offer reliable stopping power in any weather, and added parking brake functionality will keep your trike in place when you hop on or off.

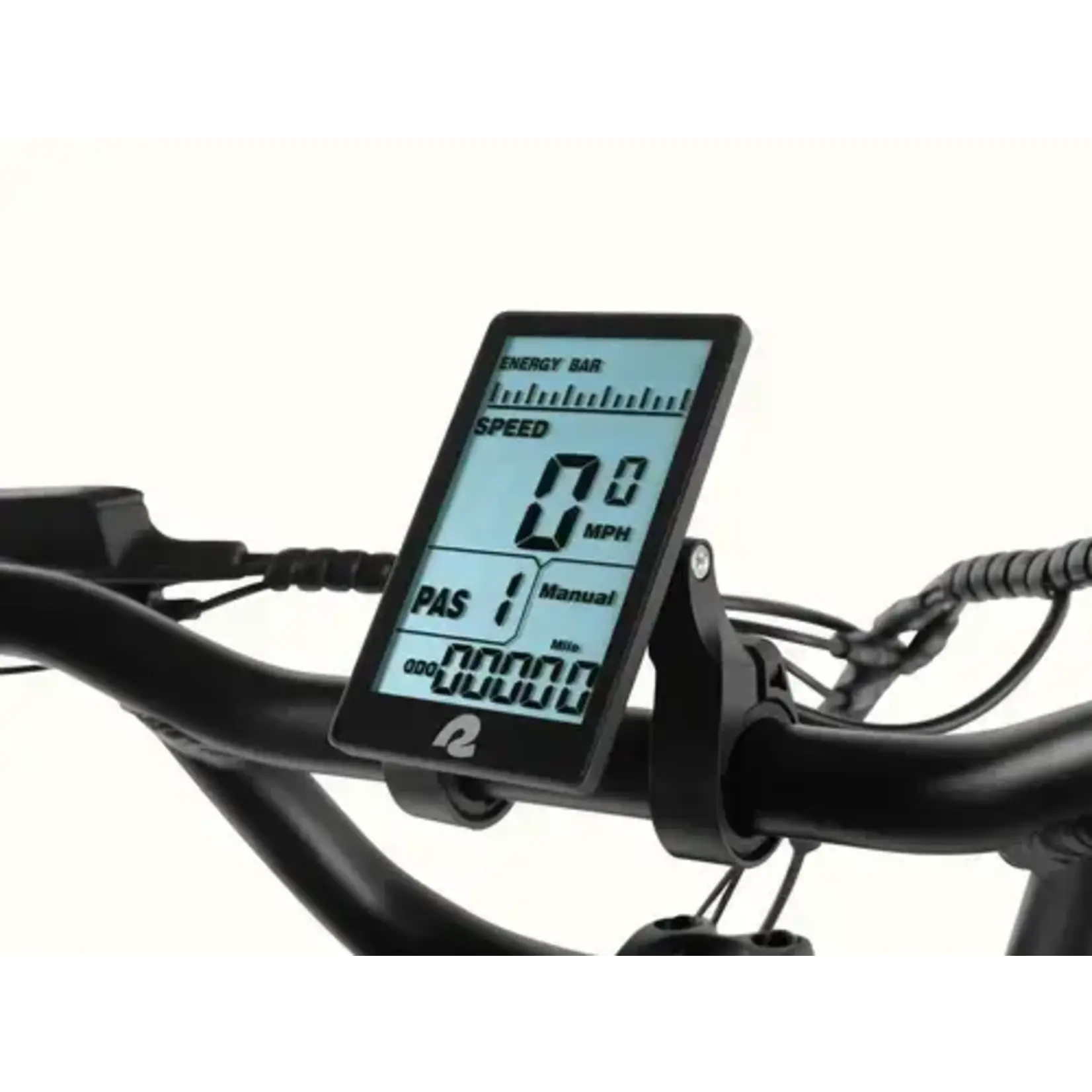

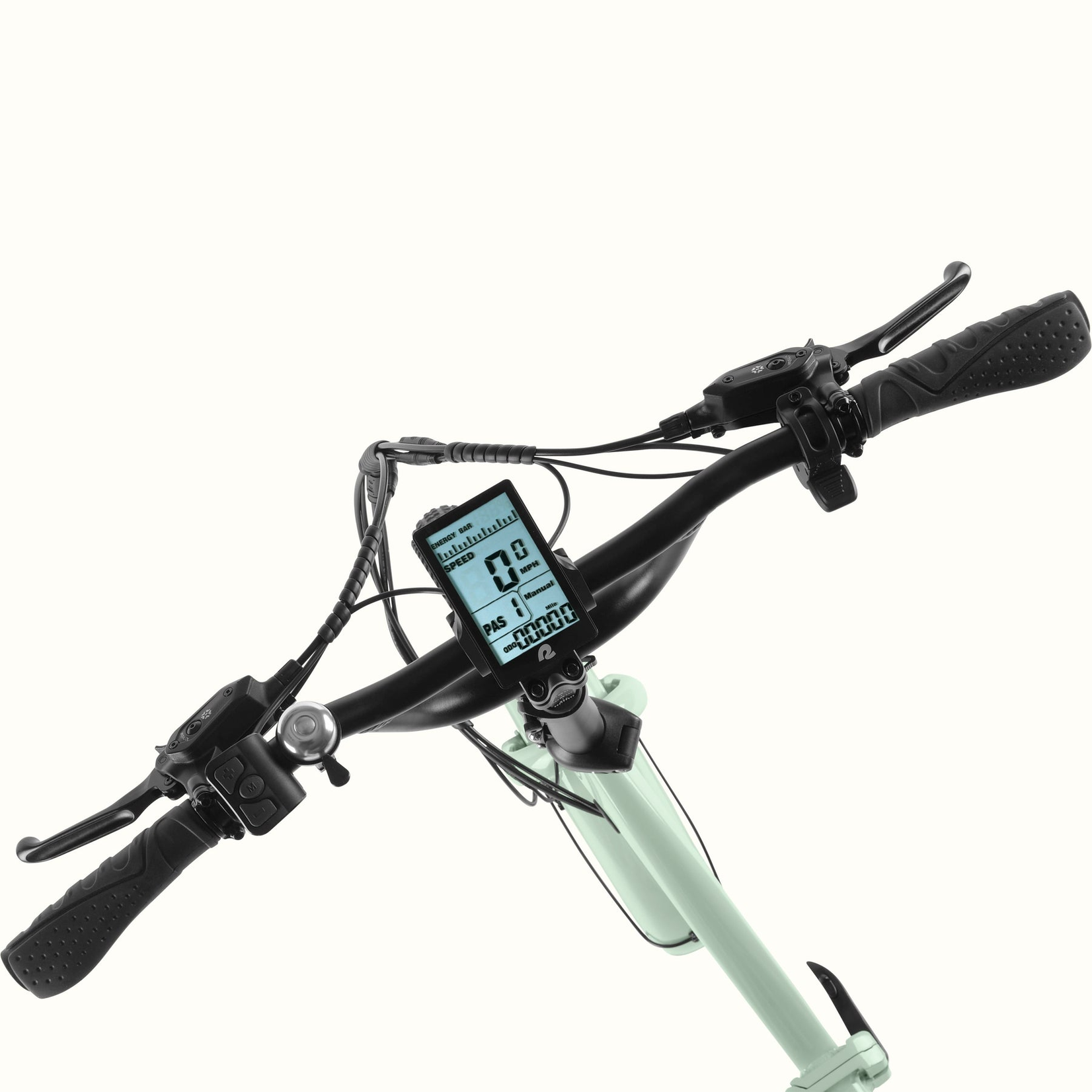

Center-Mounted B/W Display

The black-and-white LCD screen is large and high-contrast, making it easy to read in the bright sun – at a glance, you can keep track of your bike’s battery level, Pedal Assist mode, speed, and more with your eyes on the road.

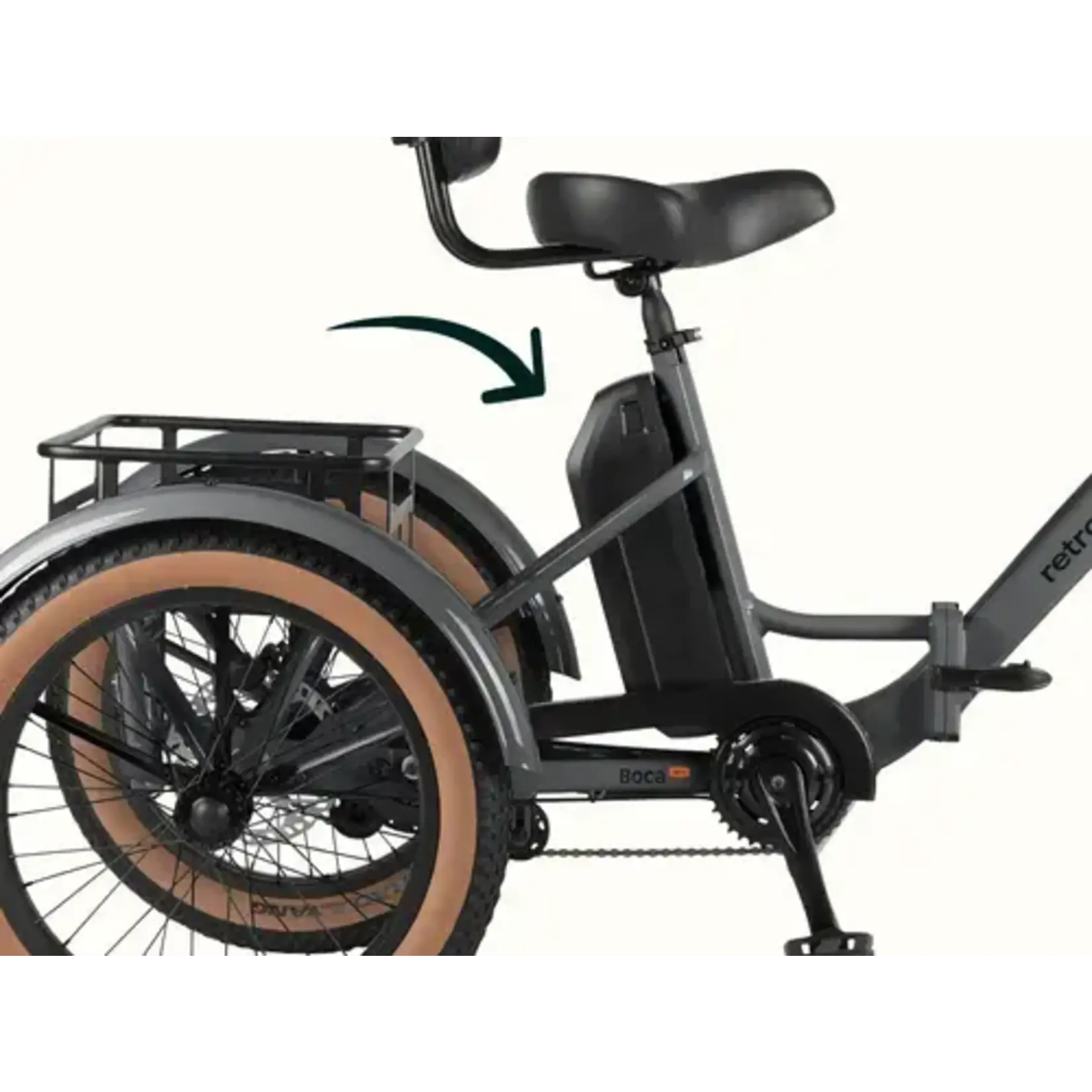

On- or Off-Bike Charging

This ebike’s battery can be charged both on and off the bike. LG 21700 cells enhance the battery capacity so it can store more energy and offer up to 49 miles of range when fully charged.

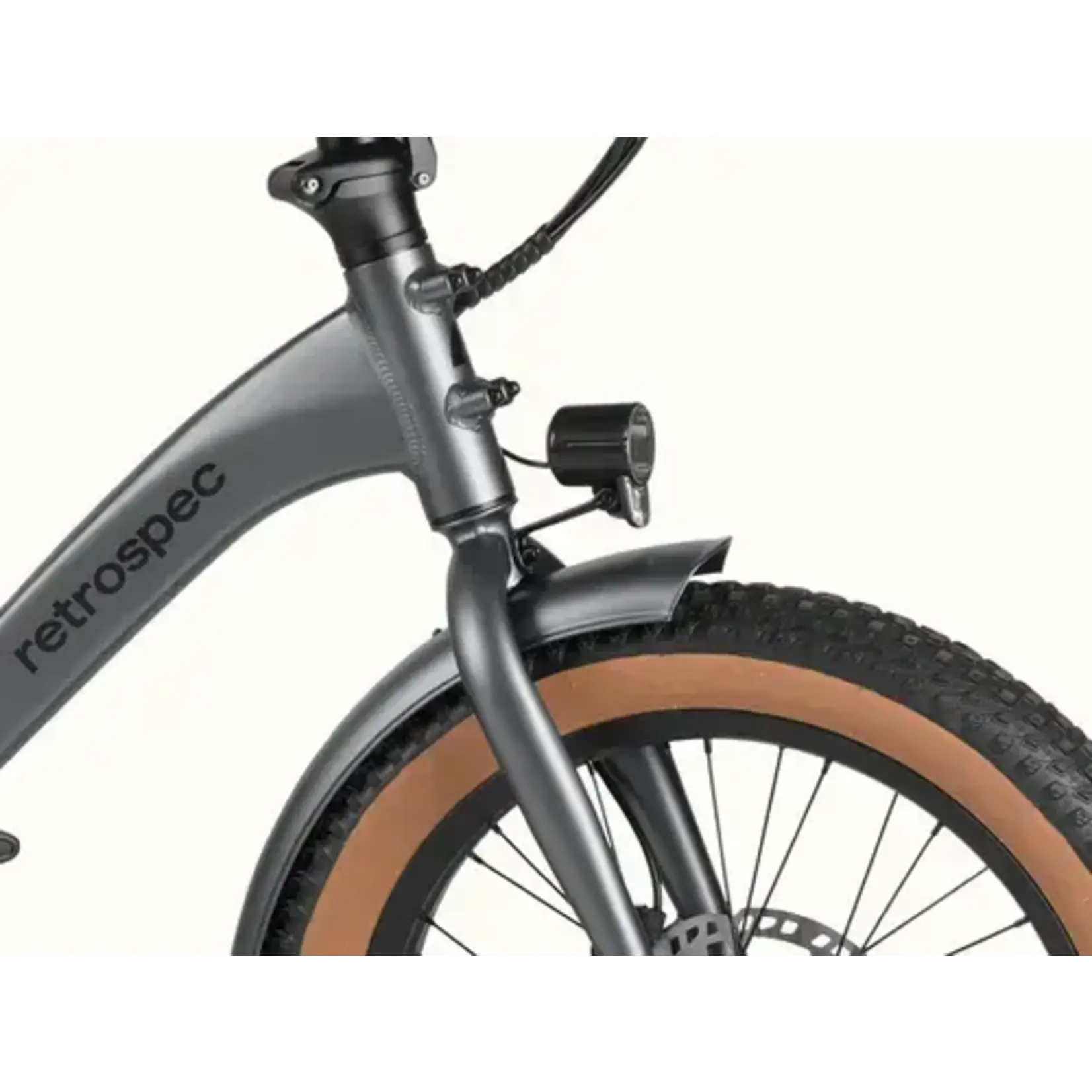

Stay Seen, Stay Safe

Integrated front and rear lights with brake indicator help improve your visibility while riding in low light.

All-in-One Tool Included

This ebike comes with all the tools you need for assembly and maintenance – all conveniently folded up in one portable, multi-functional tool that fits in your pocket for tune-ups on-the-go.

This ebike has been tested and certified to UL2849 and UL2271 standards for electric bicycles.

UL2271 & UL2849 Safety Certified

This ebike has been tested and certified to UL2271 and UL2849 standards for electric bicycles.

Specifications

Frameset

• Sizes: 16.5"
• Frame: Boca alloy trike with rear drive and seat tube mounted external battery
• Fork: Rigid Steel

Wheelset

• Rims: 20" single-wall aluminum 36H, for disc brake
• Hubs: Aluminum bolt-on with 17mm axle nuts. 36 hole
• Spokes: 13G with brass nipples
• Tires: 20x3" Multi-Surface Tire with puncture protection

E-Power System

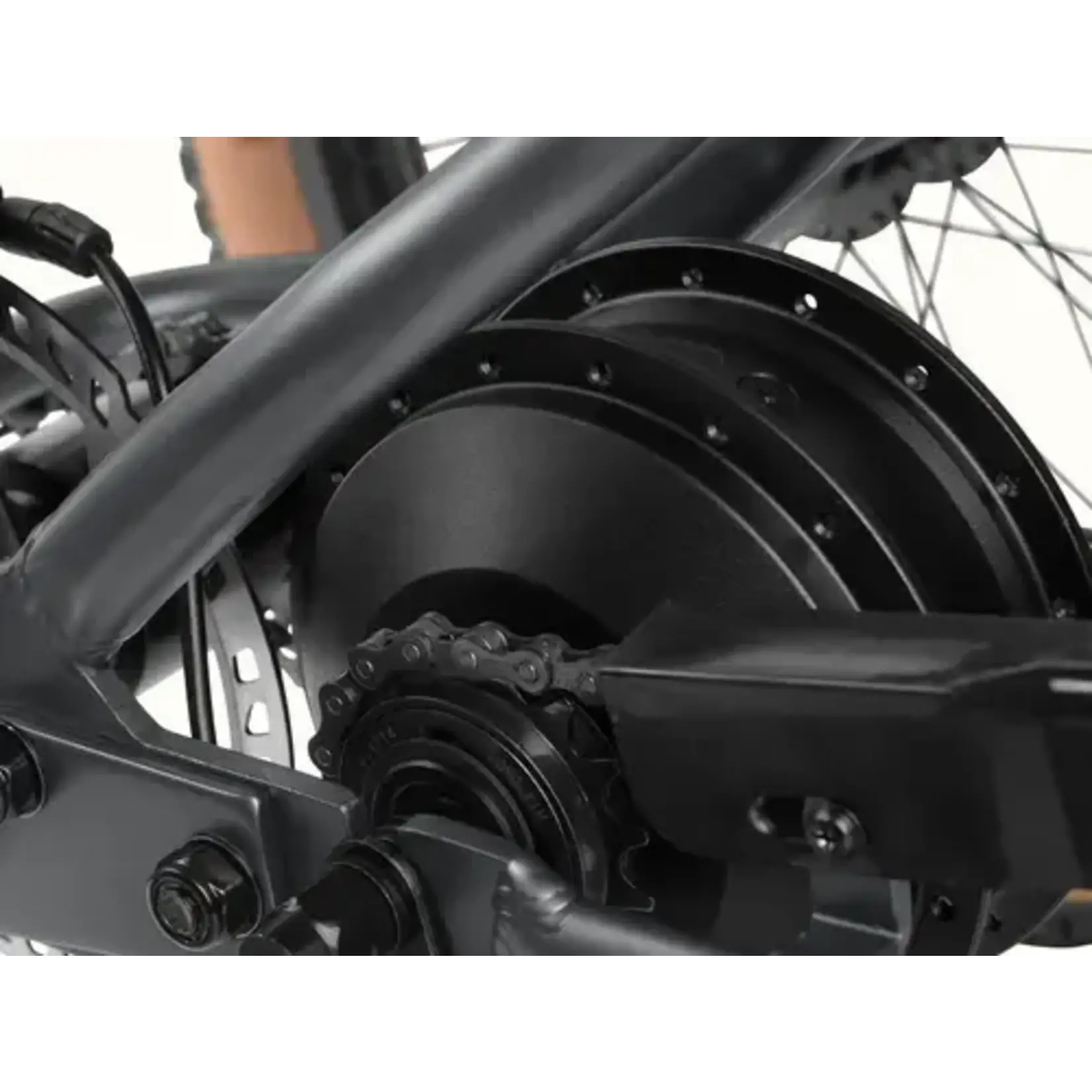

• Motor: 500W rear hub
• Battery: 500Wh/48VLG 21700 cells; Charge on or off bike
• Display: Center mounted black & white LCD
• Range: Up to 49 Miles
• UL Testing: UL2849 & UL2271 Certified
• Pedal Assist: 6 Levels, Throttle and optional walk-mode; Class 2 14MPH

Drivetrain

• Crankset: 3-Piece aluminum
• Chain: KMC single speed
• BB: sealed cartridge
• Freewheel/Cassette: Single speed 17T and 18T

Components

• Headset: 1-1/8” semi-integrated threadedless
• Front Brakes: 5 Star Hydraulic with 180mm rotors and parking brake
• Rear Brakes: 6 Star Hydraulic with 180mm rotors and parking brake
• Handlebars: Alloy Comfort Rise Bar
• Grips: Lock-on comfort grips.
• Stem: Alloy folding stem
• Saddle: Retrospec Super Comfort with back rest
• Seatpost: Aluminum 31.8mm diameter, 510mm length
• Seatpost Clamp: Aluminum quick release
• Pedals: Aluminum plateform with non-slip tread.

Extras

• Taillight: Integrated with brake light function
• Headlight: Integrated front
• Fenders: Full coverage
• Rear Carrier: Built into frame with Everthing Bin
• Recommended Weight Limit: 350lbs/Rider 500 lbs total
